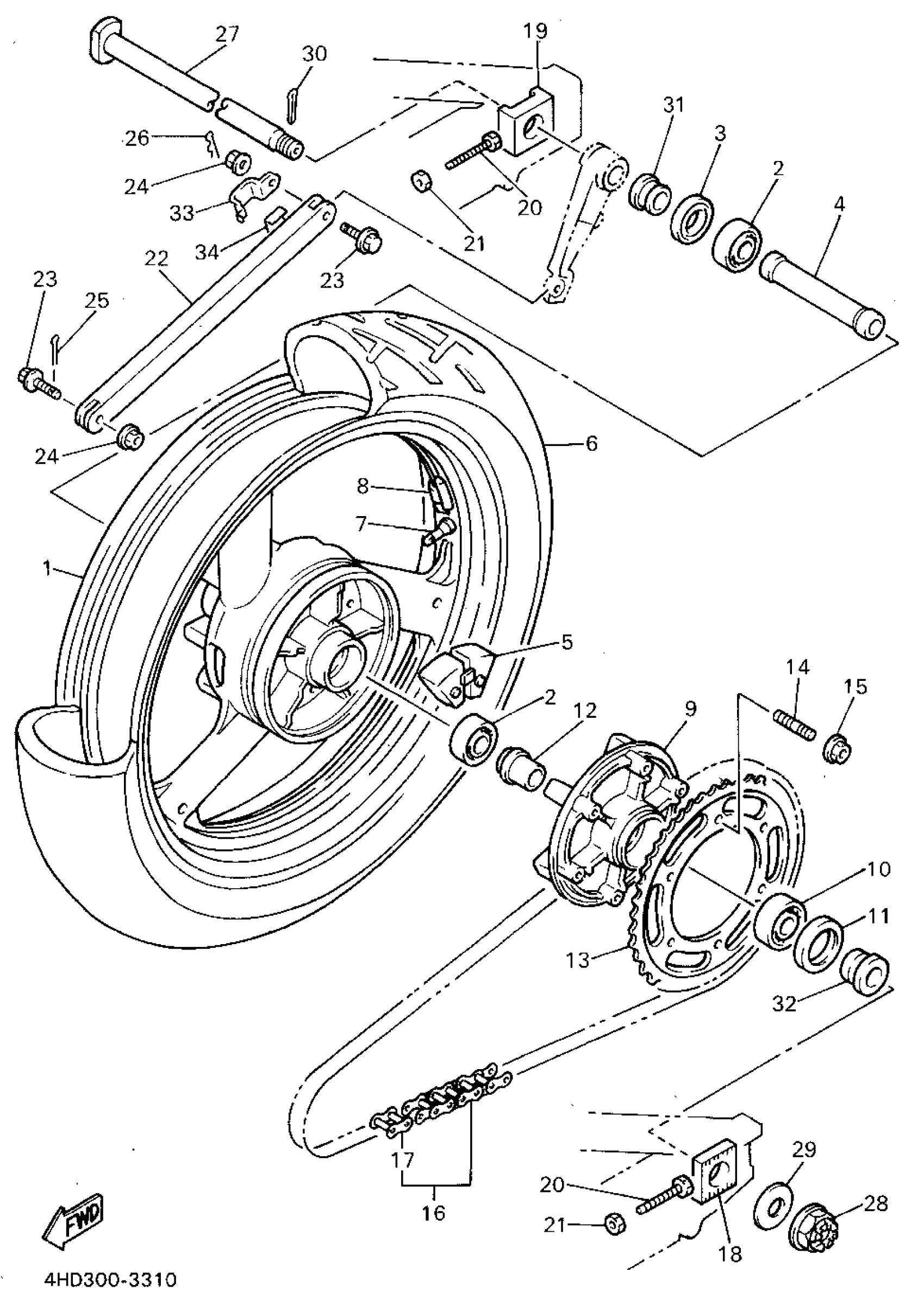

Yamaha YZF750RFC (YZF750R CA) 1994 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

4FM-25338-01-P4

Unavailable

2

BEARING

93306-07806-00

$63.99

3

OIL SEAL

93106-35042-00

$15.99

4

SPACER(4HD)

90560-28389-00

$84.99

5

DAMPER

4FM-25364-00-00

$37.99

6

TIRE (180/55 ZR17 D202)

94118-1700T-00

Unavailable

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

BALANCER, WHEEL

5MT-25398-00-00

$17.49

8

BALANCER, WHEEL

5MT-25398-10-00

$17.49

8

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

9

CLUTCH, HUB

4FM-25366-00-00

Unavailable

10

BEARING(4HD)

93306-20644-00

Unavailable

11

OIL SEAL

93106-40041-00

$17.99

12

COLLAR, WHEEL

4FM-25377-00-00

$30.99

13

SPROCKET, DRIVEN (43T)

3FV-25443-01-00

Unavailable

14

BOLT, STUD(4HD)

90116-10575-00

Unavailable

15

NUT, SELF-LOCKING

90185-10170-00

Unavailable

16

CHAIN

9Y581-55105-00

Unavailable

17

JOINT, CHAIN(4HD)

94681-55031-00

Unavailable

18

PULLER,CHAIN 1

4FM-25388-01-00

Unavailable

19

PULLER, CHAIN 2

4FM-25389-00-00

Unavailable

20

BOLT(4SR)

90101-08777-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

BAR, TENSION

4FM-25371-10-00

Unavailable

23

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

24

NUT, FLANGE

95704-08500-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

CLIP(4BP)

90468-16192-00

Unavailable

27

AXLE, WHEEL

4FM-25381-01-00

Unavailable

28

NUT, CASTLE

90171-25054-00

Unavailable

29

WASHER, PLATE(2JG)

90201-266L1-00

Unavailable

30

PIN, COTTER

91490-40045-00

Unavailable

31

COLLAR(4HA)

90387-2805W-00

Unavailable

32

COLLAR

90387-2805X-00

Unavailable

33

HOLDER,BRAKE HOSE

4FM-25887-01-00

Unavailable

34

DAMPER

2AL-84553-00-00

Unavailable
