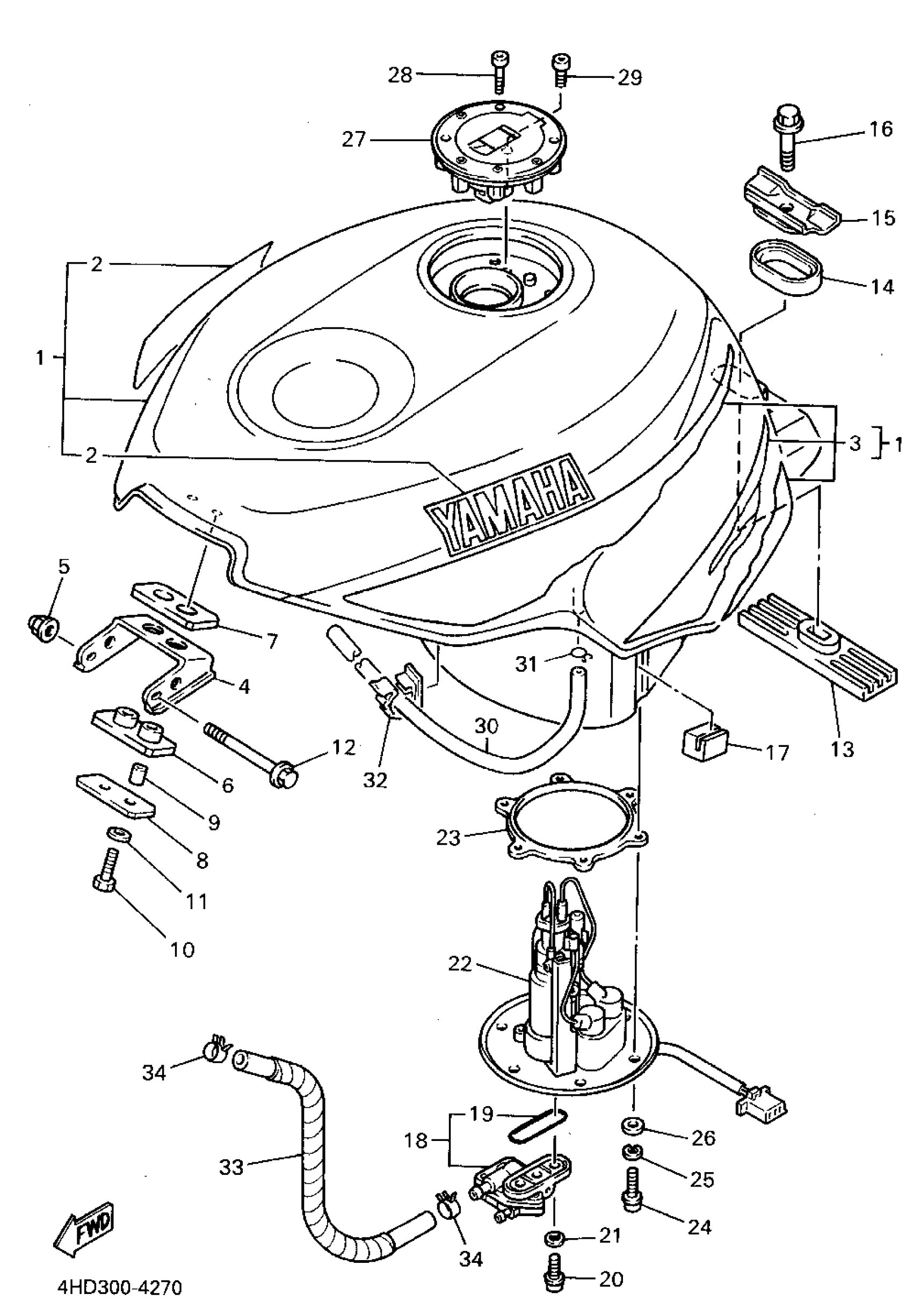

Yamaha YZF750RFC (YZF750R CA) 1994 FUEL TANK Diagram
#
1
FUEL TANK COMP.
4FM-24110-30-01
Unavailable
2
EMBLEM, YAMAHA(3GM)
99226-00160-00
Unavailable
3
. GRAPHIC SET
4FM-24240-01-00
Unavailable
4
BRACKET, FUEL TANK 1
4FM-24191-00-00
Unavailable
6
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
7
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
8
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
11
WASHER, SPRING
92995-06100-00
Unavailable
13
DAMPER, LOCATING 4
2GH-24184-00-00
Unavailable
15
WASHER, SPECIAL
4FM-24187-00-00
Unavailable
16
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
17
DAMPER, LOCATING 3
4JH-24183-01-00
Unavailable
18
FUEL COCK ASSY 1
3FV-24500-02-00
Unavailable
19
O-RING
4X8-24512-00-00
Unavailable
20
SCREW 366241430000
90149-06008-00
Unavailable
21
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
22
FUEL PUMP ASSEMBLY
4FM-13910-00-00
Unavailable
23
SEAL
4FM-2414G-00-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
WASHER, PLAIN (646)
92990-05600-00
Unavailable
27
CAP ASSY
4FM-24602-20-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
29
BOLT, SOCKET
91314-05010-00
Unavailable
30
HOSE
90445-11M78-00
Unavailable
31
CLIP
90467-090A2-00
Unavailable
32
CLAMP(3YL)
90464-25160-00
Unavailable
33
HOSE
3FV-14294-02-00
Unavailable
34
CLIP(3YX)
90467-13133-00
Unavailable
