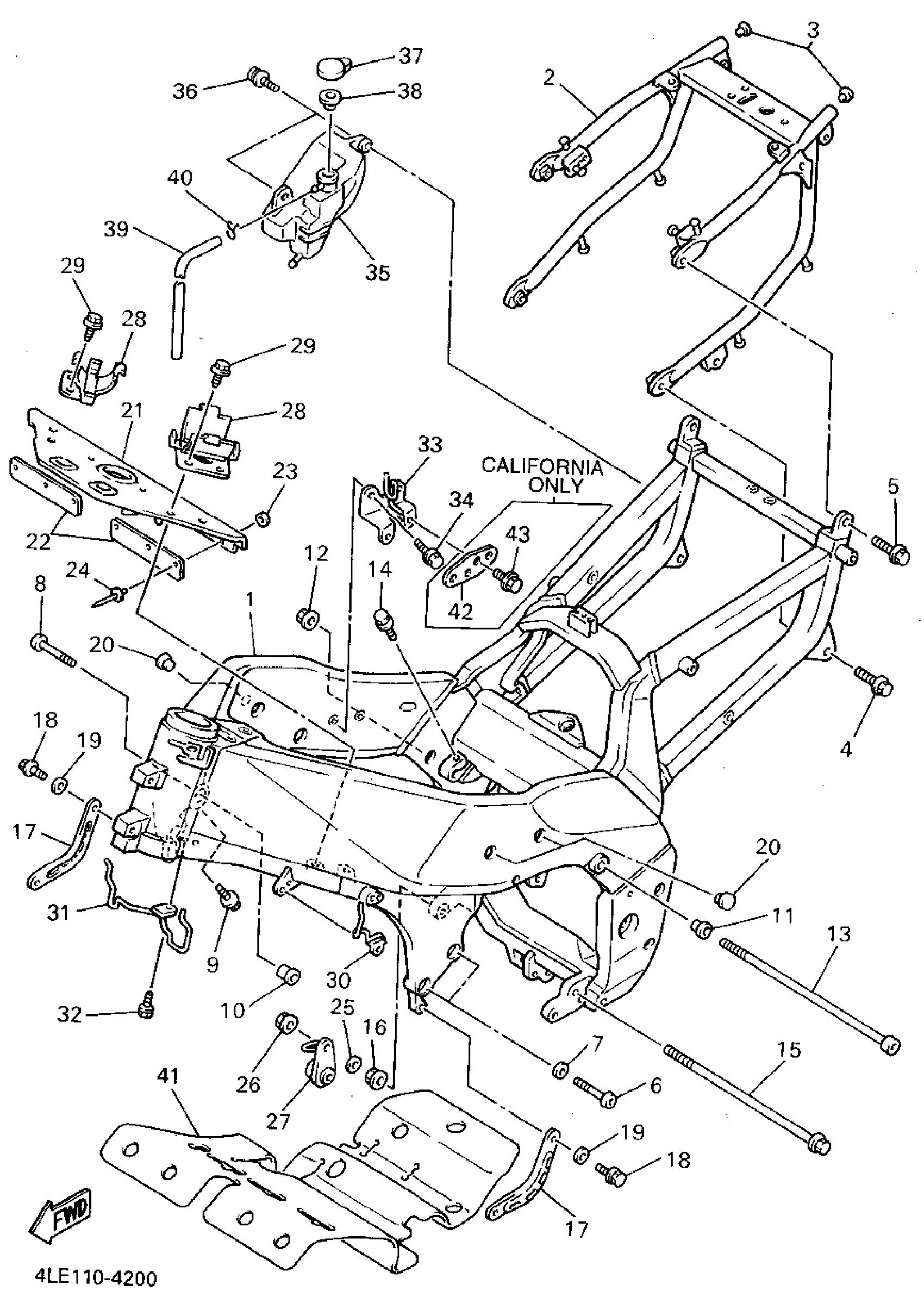

Yamaha YZF750RFC (YZF750R CA) 1994 FRAME Diagram
#
1
FRAME COMP.
4FM-21110-00-00
Unavailable
2
STAY, REAR
4FM-21645-01-00
Unavailable
7
WASHER, PLATE
92990-10600-00
Unavailable
10
COLLAR
90387-115V8-00
Unavailable
11
COLLAR
90387-105V7-00
Unavailable
12
NUT
90179-10682-00
Unavailable
13
BOLT, HEXAGON SOCKET HEAD
90110-10169-00
Unavailable
15
BOLT, WASHER BASED(4FM)
90105-10716-00
Unavailable
16
NUT(4KG)
90179-10658-00
Unavailable
17
BRACKET, RADIATOR
4FM-2142K-02-00
Unavailable
18
BOLT, HEXAGON
97017-06012-00
Unavailable
19
WASHER(6TA)
92907-06600-00
Unavailable
20
PLUG(2GH)
90338-15202-00
Unavailable
21
COVER 2
4FM-2117M-01-00
Unavailable
22
COVER 3
4FM-2117N-00-00
Unavailable
23
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
24
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
25
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
26
NUT, FLANGE(8AB)
95707-10500-00
Unavailable
27
STAY, MUFFLER 2
4FM-21446-01-00
Unavailable
28
BRACKET, COIL
4FM-21359-00-00
Unavailable
29
BOLT, HEXA W/W
90119-06018-00
Unavailable
30
HOLDER, CABLE
4FM-21161-02-00
Unavailable
31
HOLDER, CLUTCH CABLE
4FM-21162-00-00
Unavailable
32
BOLT
90101-06664-00
Unavailable
33
BRACKET 7
4FM-2116J-10-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
TANK, RECOVERY
4FM-21871-02-00
Unavailable
36
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
37
CAP
1AA-21815-00-00
Unavailable
38
GASKET
1AA-21874-00-00
Unavailable
39
HOSE (L1500)
90445-084J0-00
Unavailable
40
CLIP 101235600
90467-08003-00
Unavailable
41
PROTECTOR, HEAT
4FM-12683-00-00
Unavailable
42
BRACKET 8
4FM-2116K-00-00
Unavailable
43
BOLT, FLANGE
95812-06010-00
Unavailable
