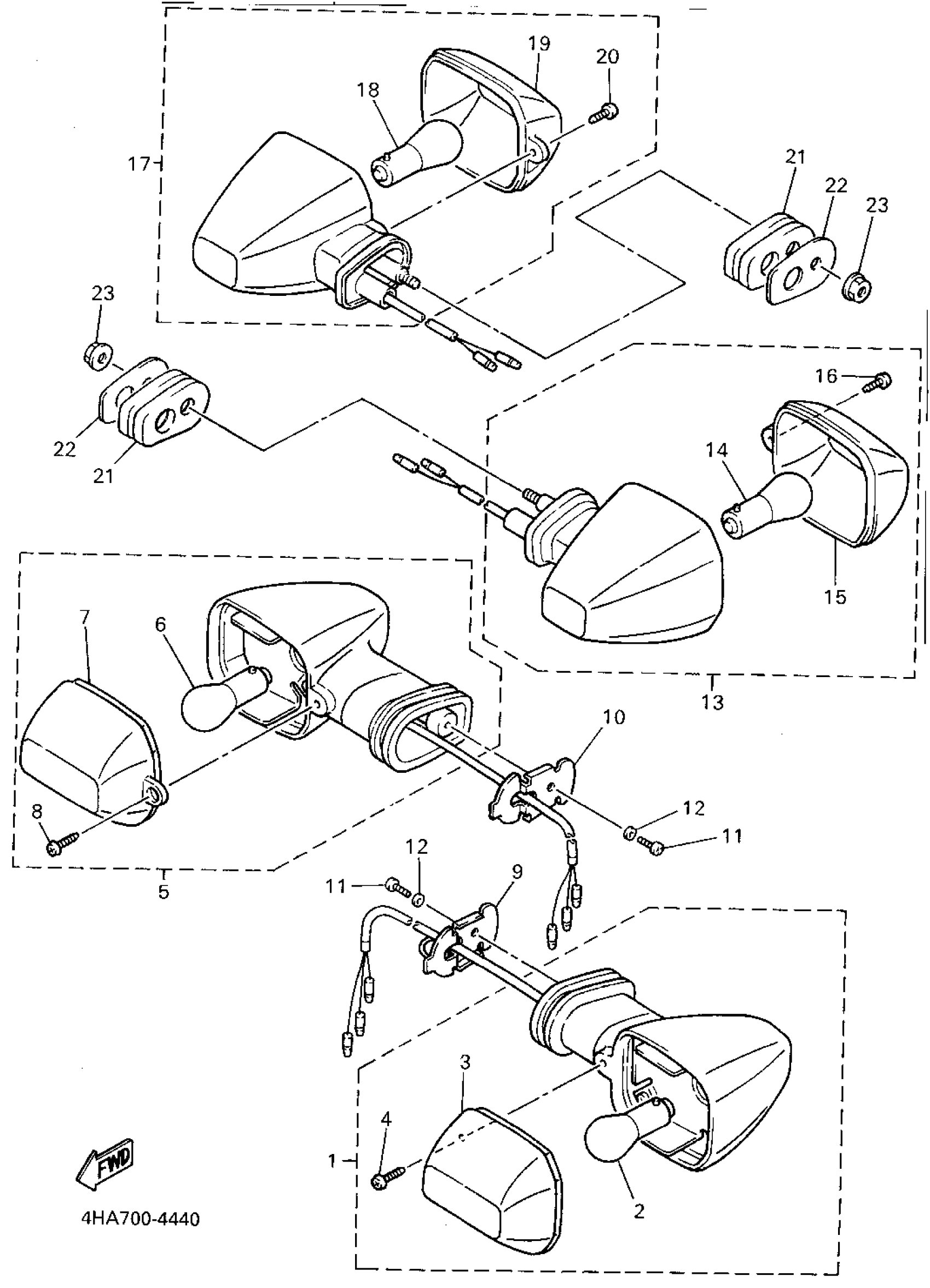

Yamaha YZF750RFC (YZF750R CA) 1994 FLASHER LIGHT TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4JH-83310-11-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

4JH-83332-10-00

$22.99

4

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

5

FRONT FLASHER LIGHT ASSY 2

4JH-83320-11-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

LENS, FLASHER 2

4JH-83342-10-00

$20.99

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

9

STAY, FLASHER 1

4JH-83318-10-00

Unavailable

10

STAY, FLASHER 1

4JH-83318-00-00

$8.99

11

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

12

WASHER(JF2)

92907-04600-00

$1.71

13

REAR FLASHER LIGHT ASSY 1

4JH-83330-20-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

LENS, FLASHER

4JH-83332-10-00

$22.99

16

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

17

FLASHER LIGHT ASSY 2

4JH-83340-20-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

LENS, FLASHER 2

4JH-83342-10-00

$20.99

20

SCREW, PAN TAP.2 SLIT

97707-40610-00

$8.49

21

PLUG, BLIND

4FM-83345-00-00

Unavailable

22

STAY, FLASHER 2

4FM-83369-00-00

Unavailable

23

NUT, FLANGE(7NB)

95780-06500-00

Unavailable
