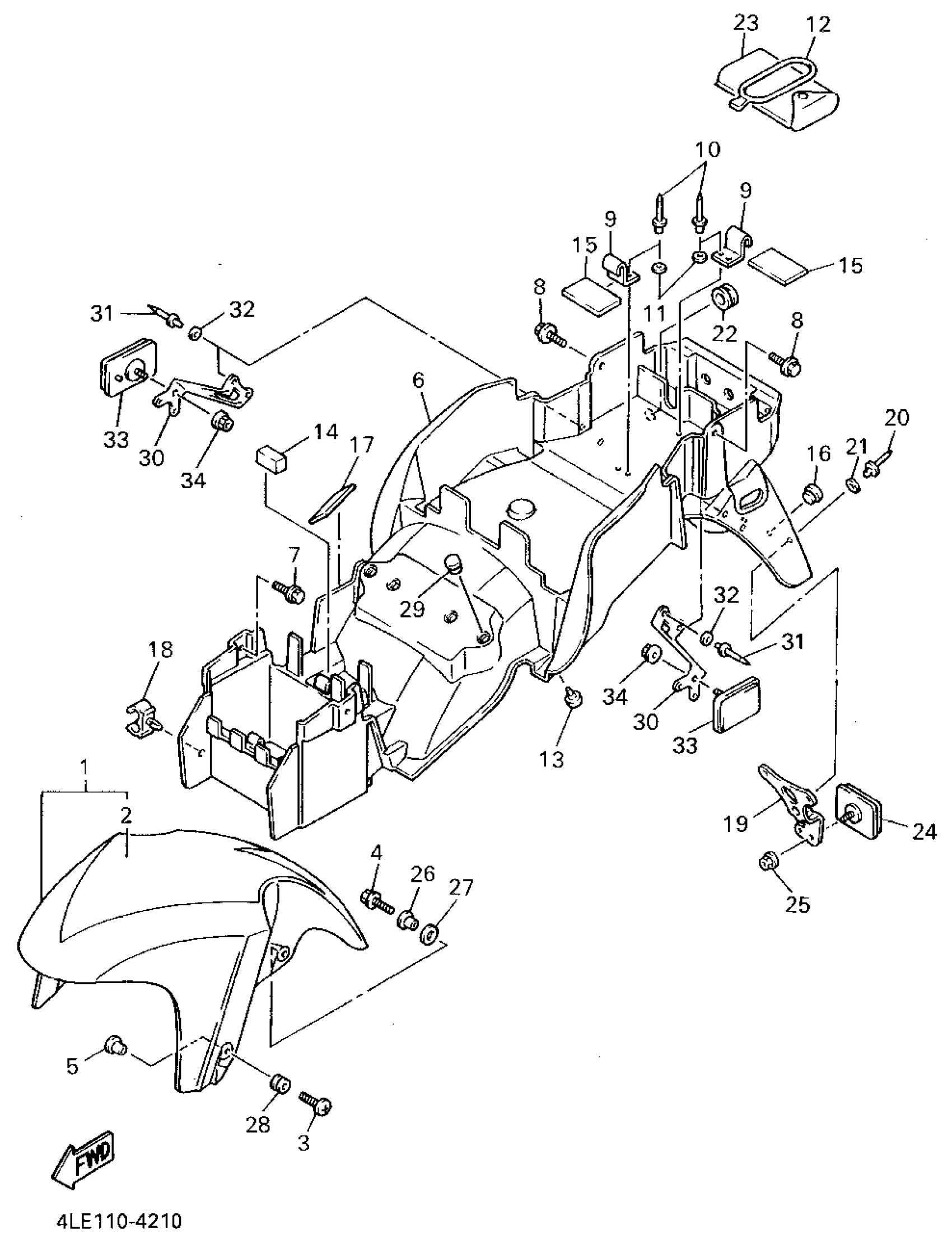

Yamaha YZF750RFC (YZF750R CA) 1994 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4FM-Y2151-01-P0

Unavailable

2

. GRAPHIC 1

4FM-21569-20-00

Unavailable

3

SCREW, BINDING(3XV)

90154-06061-00

$8.49

4

BOLT, FLANGE

95817-06016-00

$2.75

5

COLLAR

90387-06159-00

$8.49

6

FENDER, REAR

99999-02811-00

Unavailable

7

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

8

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

9

HOOK, TOOL BAND

3VD-21366-00-00

Unavailable

10

RIVET, BLIND (8K1)

90267-40076-00

$8.49

11

WASHER, PLATE(26H)

90201-044H9-00

$8.49

12

BAND, TOOL

3YX-21376-00-00

Unavailable

13

DAMPER, SEAT

35T-24724-00-00

$14.49

14

DAMPER, PLATE 2

1LJ-2414J-00-00

$7.99

15

DAMPER

5H0-8235Y-M0-00

$6.99

16

PLUG

90338-07018-00

Unavailable

17

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

18

CLAMP(3LD)

90464-09130-00

Unavailable

19

BRACKET, REFLECTOR 1

4FM-85132-00-00

Unavailable

20

RIVET, BLIND (8K1)

90267-40076-00

$8.49

21

WASHER, PLATE(26H)

90201-044H9-00

$8.49

22

GROMMET

90480-10258-00

Unavailable

23

TOOL KIT

4FM-28100-00-00

Unavailable

24

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

26

COLLAR(50M)

90387-087L0-00

Unavailable

27

DAMPER

4FM-28372-00-00

Unavailable

28

GROMMET(53Y)

90480-12072-00

Unavailable

29

PLUG (17J)

90338-10132-00

Unavailable

30

BRACKET, REAR STAY

4FM-21688-00-00

Unavailable

31

RIVET, BLIND (8K1)

90267-40076-00

$8.49

32

WASHER, PLATE(26H)

90201-044H9-00

$8.49

33

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

34

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
