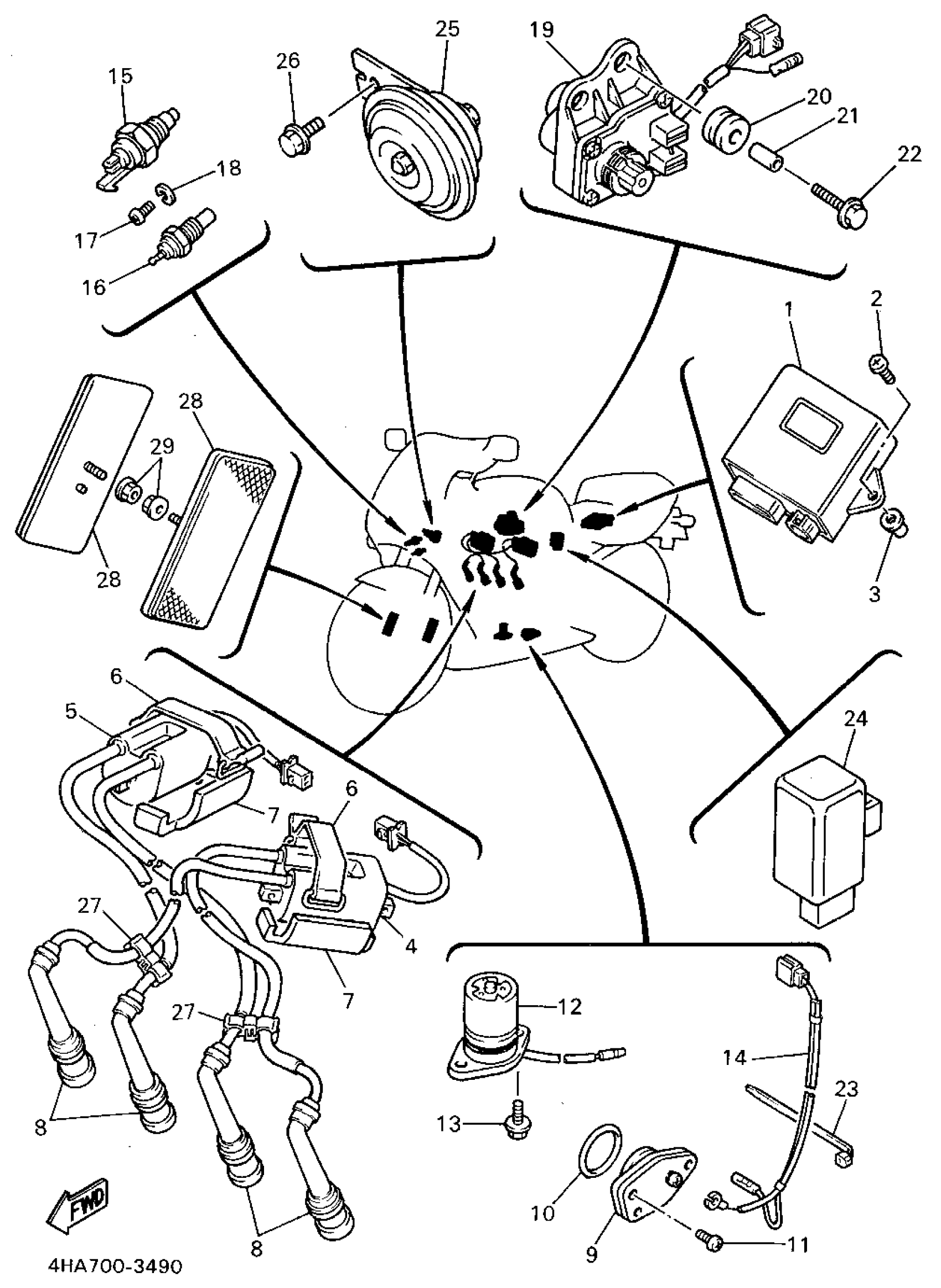

Yamaha YZF750RFC (YZF750R CA) 1994 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSEMBLY

4LE-82305-00-00

Unavailable

2

SCREW, TRUSS TAP.

97707-60016-00

$1.70

3

PLUG(4BP)

90338-08226-00

$2.17

4

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

5

IGNITION COIL ASSY

1WG-82310-09-00

$263.99

6

BAND, BATTERY

3TJ-82131-00-00

$22.99

7

DAMPER 2

3TJ-2139U-00-00

Unavailable

8

PLUG CAP ASSY

2KT-82370-00-00

$122.99

9

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

10

O-RING (371)

93210-29196-00

$8.49

11

SCREW, PAN HEAD

98580-06016-00

Unavailable

12

OIL LEVEL GAUGE ASSEMBLY

3GM-85720-00-00

Unavailable

13

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

14

WIRE, SUB LEAD

4KG-82509-00-00

Unavailable

15

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

16

THERMO UNIT

11H-83591-00-00

Unavailable

17

GASKET, EXHAUST

98507-05008-00

Unavailable

18

WASHER(3SX)

92907-05100-00

Unavailable

19

SERVOMOTOR ASY

4FM-85820-01-00

Unavailable

20

GROMMET

90480-14412-00

Unavailable

21

COLLAR(3GM)

90387-0609L-00

Unavailable

22

BOLT, FLANGE

95817-06030-00

Unavailable

23

CLAMP(4FM)

90464-15195-00

Unavailable

24

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

24

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

25

HORN

2KG-83371-00-00

Unavailable

26

BOLT, FLANGE

95812-06010-00

Unavailable

27

CLAMP

90464-10186-00

Unavailable

28

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

29

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
