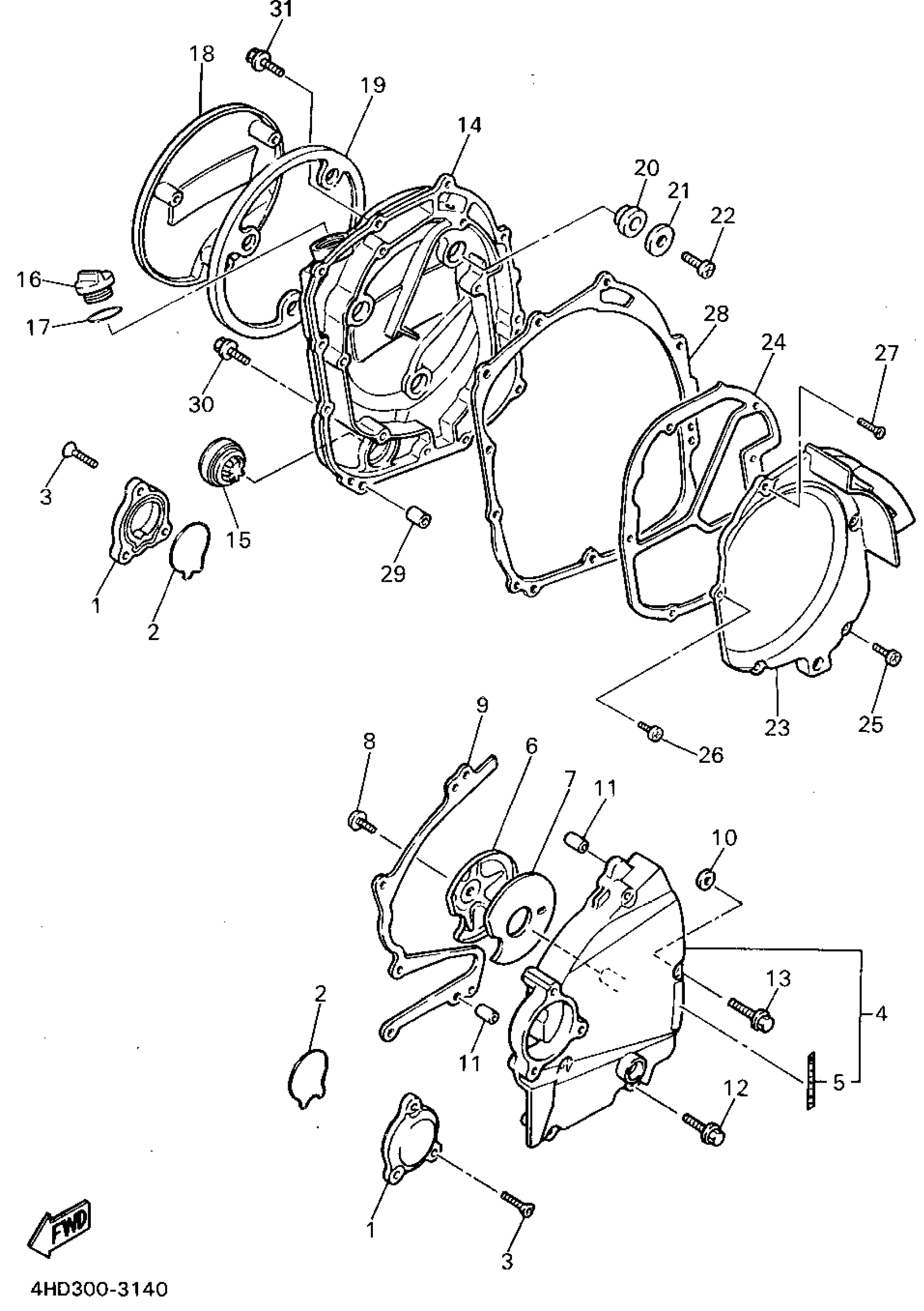

Yamaha YZF750RFC (YZF750R CA) 1994 CRANKCASE COVER 1 Diagram

COVER, OIL PUMP

3GM-15416-00-00

Unavailable

GASKET, OIL PUMP COVER 1

1AE-15456-00-00

$5.49

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

CRCS COVER ASY L

4FM-15410-01-00

Unavailable

. EMBLEM

1TV-15435-00-00

Unavailable

COVER, CAP 2

3GM-15427-00-00

Unavailable

DAMPER, ENGINE MOUNT 1

1AE-15316-00-00

Unavailable

BOLT, BUTTON HEAD

92017-06010-00

$4.82

GASKET, CRANKCASE COVER 1

4FM-15451-00-00

$22.99

GASKET

4FM-15467-00-00

$7.99

PIN, DOWEL(N04)

91808-12024-00

$4.24

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

BOLT, SMALL FLANGE

95027-06050-00

$2.55

COVER,CRANKCASE 2

4FM-15421-01-00

Unavailable

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

O-RING(1KT)

93210-27778-00

Unavailable

COVER, CAP

3GM-15417-00-00

Unavailable

RING, RUBBER

3GM-15449-00-00

Unavailable

GROMMET

4H7-15486-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

SCREW PAN HEAD

98580-06010-00

Unavailable

BREATHER 1

4SV-15346-00-00

Unavailable

GASKET, CARBURETOR COVER 2

4FM-15463-00-00

Unavailable

SCREW PAN HEAD

98580-06020-00

Unavailable

SCREW, PAN

98517-06020-00

Unavailable

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

GASKET, CRANKCASE COVER 2

4FM-15461-00-00

Unavailable

PIN, DOWEL(N04)

91808-12024-00

$4.24

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
