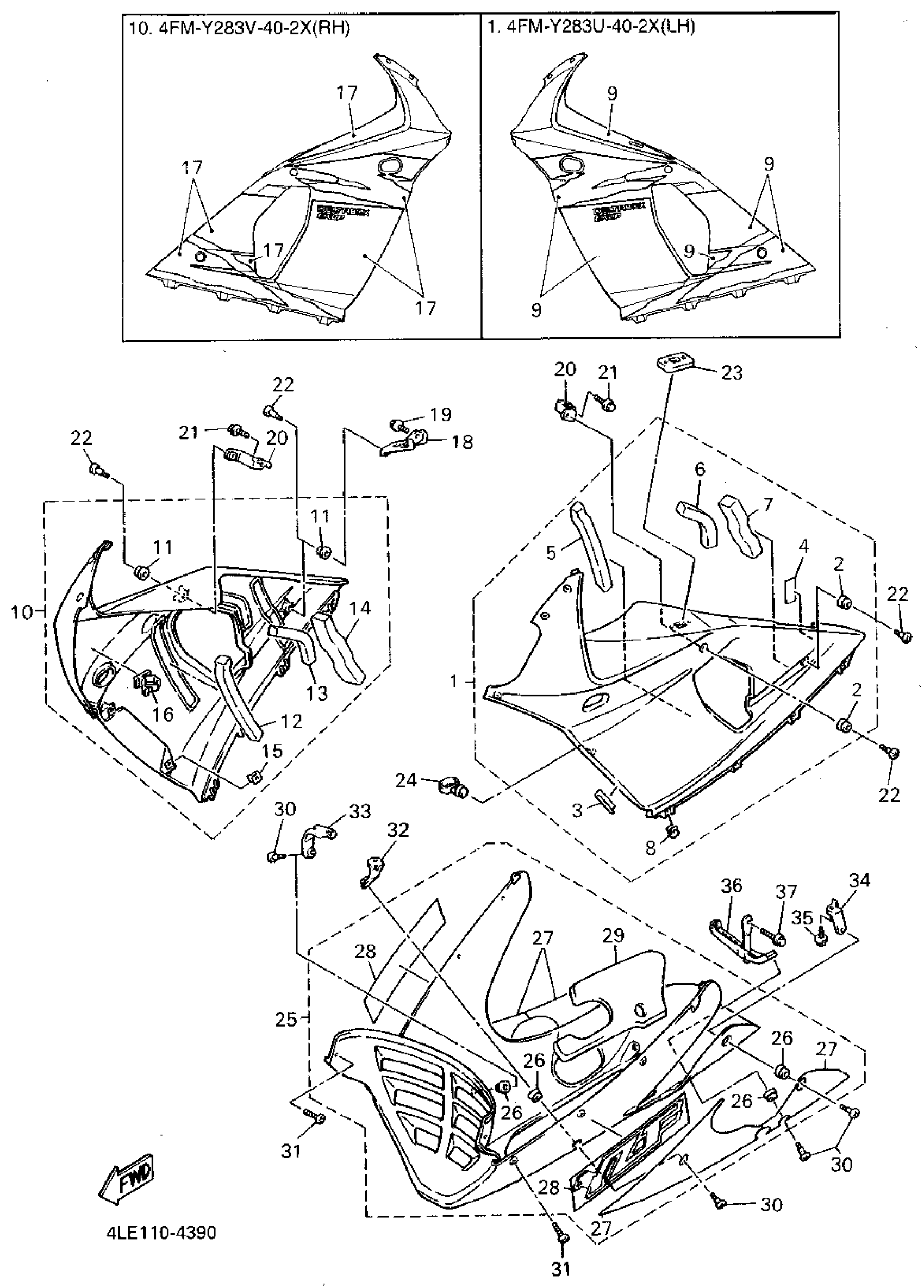

Yamaha YZF750RFC (YZF750R CA) 1994 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4FM-Y283U-40-2X
Unavailable
5
. DAMPER 2
4FM-21639-00-00
Unavailable
6
. DAMPER
3YL-21649-00-00
Unavailable
7
DAMPER
4SV-28371-00-00
Unavailable
9
. GRAPHIC SET, LOWER COVER 1
4FM-28301-21-00
Unavailable
10
PANEL ASSEMBLY 2
4FM-Y283V-40-2X
Unavailable
12
. DAMPER 2
4FM-21639-00-00
Unavailable
13
. DAMPER
3YL-21649-00-00
Unavailable
14
DAMPER
4SV-28371-00-00
Unavailable
16
CLAMP(3YL)
90464-25160-00
Unavailable
17
. GRAPHIC SET, LOWER COVER 2
4FM-28303-01-00
Unavailable
18
STAY 2
4FM-28322-00-00
Unavailable
19
BOLT, FLANGE
95817-06010-00
Unavailable
20
BRACKET 5
4FM-2836H-00-00
Unavailable
21
BOLT, FLANGE
95817-08012-00
Unavailable
22
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
23
COVER
3FV-28365-00-00
Unavailable
24
GUIDE, WIRE
1A8-21518-00-00
Unavailable
25
COVER ASSEMBLY, UNDER
4FM-Y2808-11-P0
Unavailable
27
. GRAPHICSET, LOWER COVER 3
4FM-28304-00-00
Unavailable
28
. EMBLEM
4FM-28315-40-00
Unavailable
29
. SEAT 2
4FM-2848K-00-00
Unavailable
30
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
31
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
32
BRACKET 3
4SV-2836F-00-00
Unavailable
33
BRACKET 4
4SV-2836G-00-00
Unavailable
34
BRACKET 1
4FM-2836A-01-00
Unavailable
35
BOLT, FLANGE
95817-06010-00
Unavailable
36
STAY, SUPPORT 1
4FM-2831T-00-00
Unavailable
37
BOLT, HEXA W/W
90119-06018-00
Unavailable
