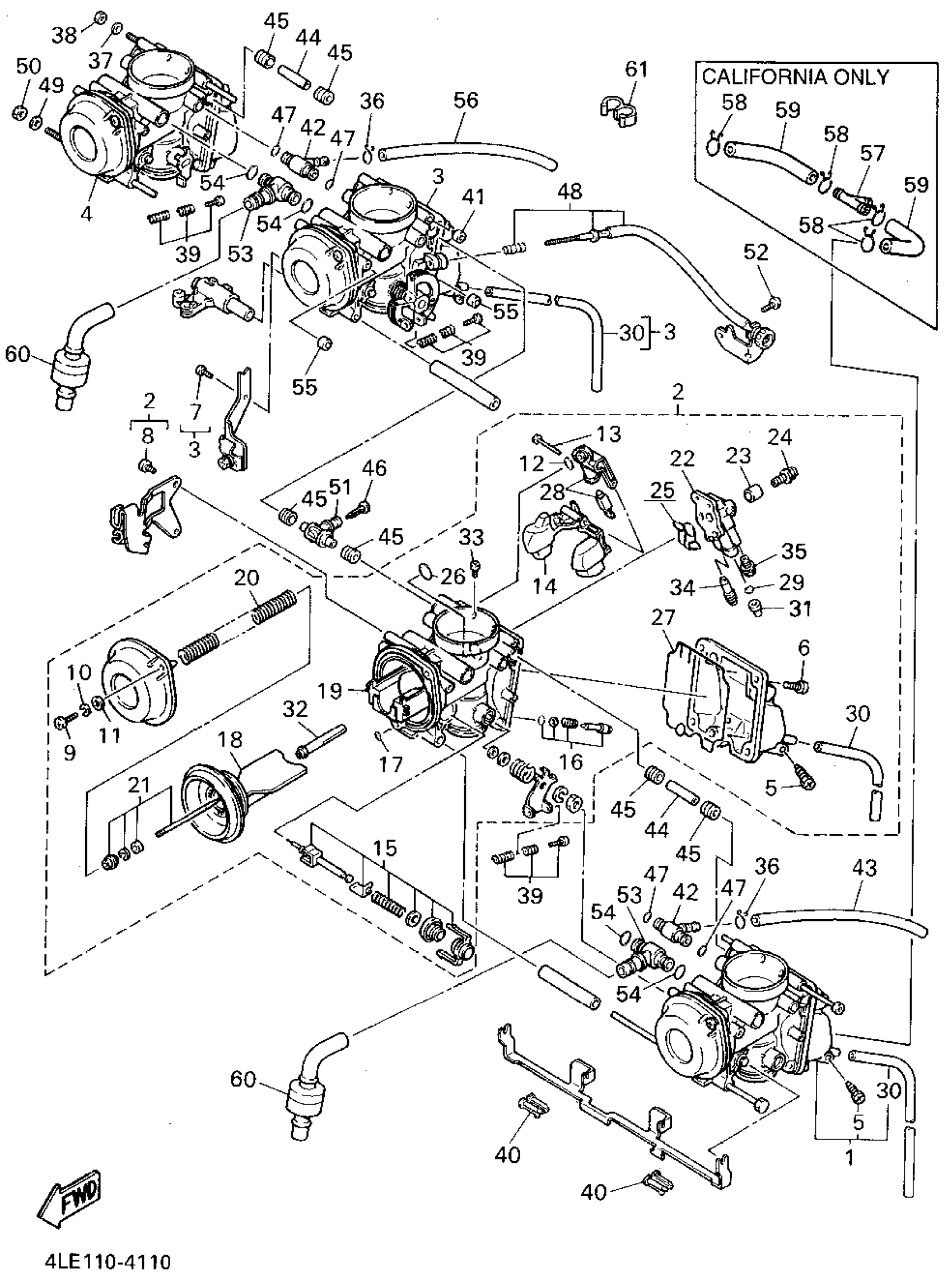

Yamaha YZF750RFC (YZF750R CA) 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4LE-14901-20-00

Unavailable

1

CARBURETOR ASSEMBLY 1

4LE-14901-10-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4LE-14902-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4LE-14902-10-00

Unavailable

3

CARBURETOR ASSY 3

4LE-14903-20-00

Unavailable

3

CARBURETOR ASSEMBLY 3

4LE-14903-10-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4LE-14904-00-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4LE-14904-10-00

Unavailable

5

PLUG, DRAIN

3FV-14191-00-00

$24.99

6

BOLT, SOCKET

91317-05012-00

$2.55

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

9

SCREW, PAN HEAD

90157-05M19-00

Unavailable

10

WASHER(3SX)

92907-05100-00

$8.49

11

WASHER(1RW)

92907-05600-00

$3.78

12

O-RING

3EN-14147-00-00

Unavailable

13

PIN, FLOAT

53L-14186-00-00

Unavailable

14

FLOAT

3GM-14985-00-00

Unavailable

15

STARTER SET

3EN-1410A-01-00

Unavailable

16

PILOT SCREW SET

12R-14105-00-00

Unavailable

17

O-RING

3FV-14147-00-00

Unavailable

18

DIAPHRAGM ASSY

3GM-14940-00-00

Unavailable

19

. BLOCK, JET

3GM-1411E-00-00

Unavailable

20

. SPRING, DIAPHRAGM

3LD-14933-00-00

Unavailable

21

. NEEDLE SET

4LE-1490J-00-00

Unavailable

22

. BLOCK JET ASSEMBLY

4HD-1411A-00-00

Unavailable

23

. WASHER, MAIN JET

3GM-14153-00-00

Unavailable

24

SCREW

4HD-14565-00-00

Unavailable

25

O-RING

3LF-14147-00-00

Unavailable

26

O-RING

1AE-14147-00-00

Unavailable

27

SEAL

3GM-14997-00-00

Unavailable

28

NEEDLE VALVE SET

3GM-14107-10-00

Unavailable

29

O-RING

3LD-14147-00-00

Unavailable

30

PIPE

3JE-14197-00-00

Unavailable

31

. JET, MAIN (#1225)

3LD-1414A-75-00

Unavailable

32

. NOZZLE, MAIN

3GM-14141-08-00

Unavailable

33

. JET, MAIN (#1225)

830-1414A-75-00

Unavailable

34

JET, PILOT (# 35)

4HR-14142-35-00

Unavailable

35

. JET, MAIN (# 575)

620-1423A-62-00

Unavailable

36

CLIP, PIPE

8U9-14139-00-00

Unavailable

37

WASHER, PLAIN (646)

92990-05600-00

Unavailable

38

NUT, HEXAGON (663)

95380-05600-00

Unavailable

39

STOP SCREW SET

4KM-1490K-00-00

Unavailable

40

HOLDER

3EN-14261-00-00

Unavailable

41

RING

3GM-14918-00-00

Unavailable

42

NIPPLE

17A-14251-00-00

Unavailable

43

PIPE

3LF-14197-00-00

Unavailable

43

PIPE

3GM-14197-00-00

Unavailable

44

PIPE, STARTER CONNECTING

3GM-14988-00-00

Unavailable

45

SEAL

3EN-14997-00-00

Unavailable

46

NET, FILTER

1KT-14994-00-00

Unavailable

47

O-RING

36Y-14147-00-00

Unavailable

48

THROTTLE SCREW SET

3GM-14103-00-00

Unavailable

49

WASHER, PLAIN (646)

92990-06600-00

Unavailable

50

NUT, U FLANGE

95604-06200-00

Unavailable

51

PIPE, STARTER CONNECTING

3EN-14988-00-00

Unavailable

52

SCREW, PAN HEAD (7G3)

98580-05008-00

Unavailable

53

NIPPLE

3GM-14251-00-00

Unavailable

54

O-RING

3LK-14147-00-00

Unavailable

55

ROD

3GM-14992-00-00

Unavailable

56

HOSE

50H-14987-00-00

Unavailable

57

PIPE, JOINT

3H3-24376-00-00

Unavailable

58

CLIP

4LE-14137-00-00

Unavailable

59

HOSE

14X-14294-00-00

Unavailable

60

PIPE

3GM-14197-00-00

Unavailable

61

CLAMP(6M7)

90464-09M31-00

Unavailable

61

CLAMP(6M7)

90464-09M31-00

Unavailable
