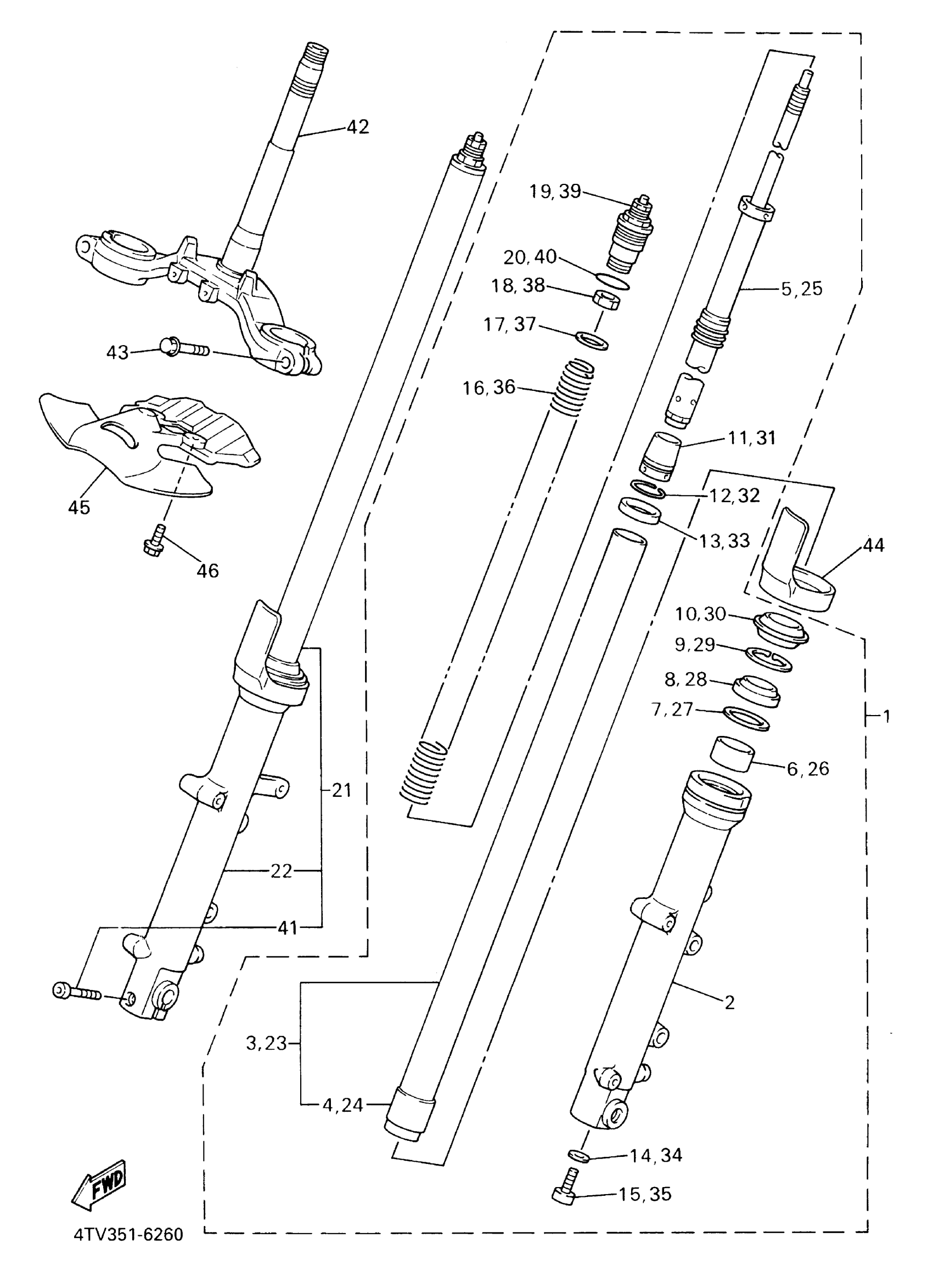

Yamaha YZF600RWC (YZF600R CA) 5AHN 2007 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L.H)
4TV-23102-10-00
Unavailable
2
TUBE, OUTER (LEFT)
4TV-23126-10-00
Unavailable
5
. CYLINDER COMP, FRONT FORK
4TV-23170-00-00
Unavailable
13
. CAP, AIR VALVE
4TV-23184-00-00
Unavailable
16
. SPRING, FRONT FORK
4JH-23141-10-00
Unavailable
17
WASHER, SPRING UPPER
3LC-23149-00-00
Unavailable
18
NUT
3LC-23357-00-00
Unavailable
19
. BOLT, CAP
4JH-23111-10-00
Unavailable
20
O-RING
43F-23188-10-00
Unavailable
21
FRONT FORK ASSY (R.H)
4TV-23103-10-00
Unavailable
22
TUBE, OUTER
4TV-23136-10-00
Unavailable
25
. CYLINDER COMP, FRONT FORK
4TV-23170-00-00
Unavailable
33
. CAP, AIR VALVE
4TV-23184-00-00
Unavailable
36
. SPRING, FRONT FORK
4JH-23141-10-00
Unavailable
37
WASHER, SPRING UPPER
3LC-23149-00-00
Unavailable
38
NUT
3LC-23357-00-00
Unavailable
39
. BOLT, CAP
4JH-23111-10-00
Unavailable
40
O-RING
43F-23188-10-00
Unavailable
41
BOLT,SOCKET
91314-08040-00
Unavailable
42
UNDER BRACKET COMP
4TV-23340-01-00
Unavailable
43
BOLT 2
4TV-23356-00-00
Unavailable
44
COVER
4PU-2331G-00-00
Unavailable
45
COVER, STEERING
4TV-23818-00-00
Unavailable
46
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
47
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
