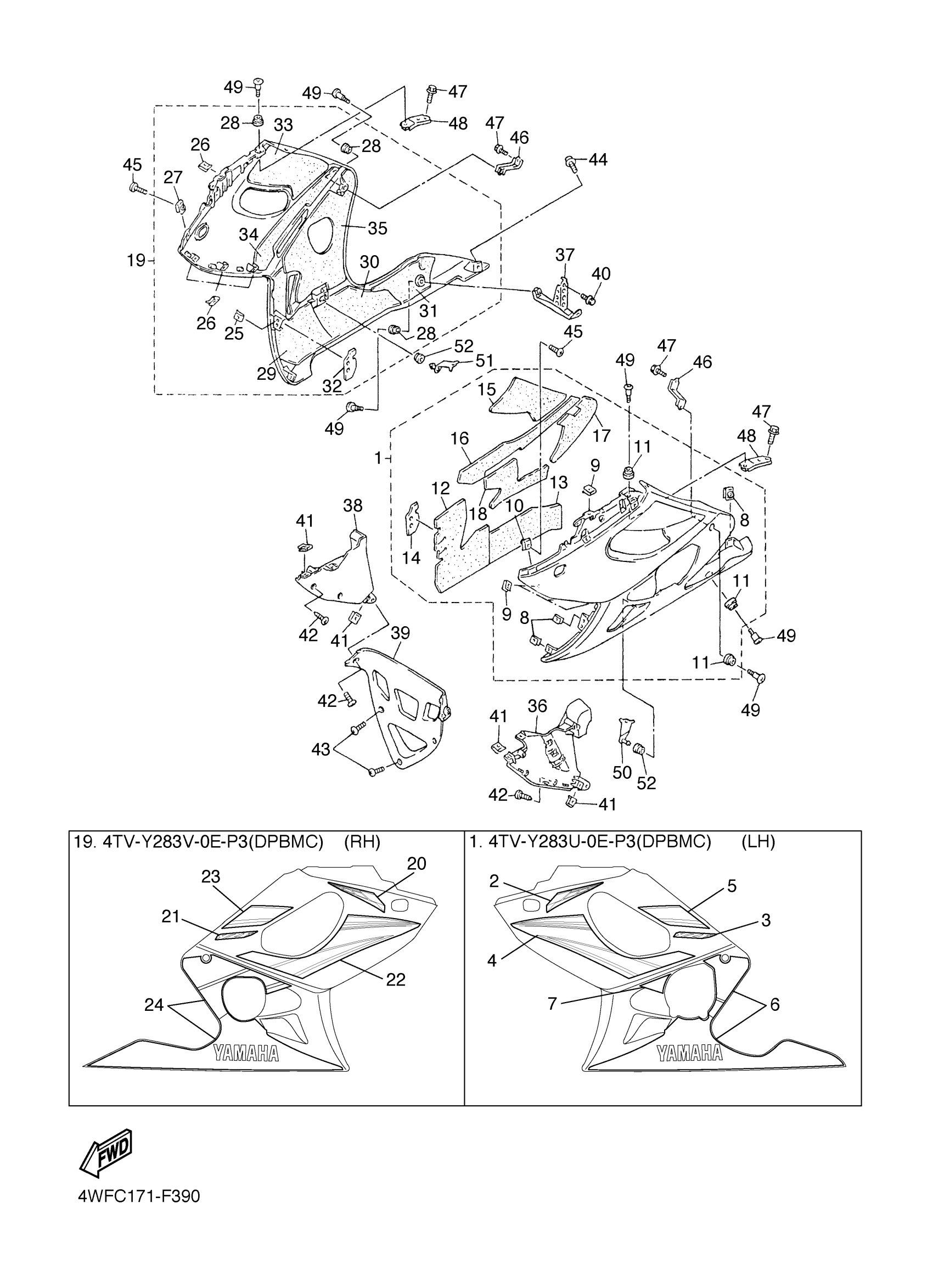

Yamaha YZF600RWC (YZF600R CA) 5AHN 2007 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-Y283U-0E-P3
Unavailable
2
. GRAPHIC 19 (DEEP PURPLISH BLUE METALLIC C)
5AH-283B3-00-00
Unavailable
3
. EMBLEM 1
5PW-2839H-50-00
Unavailable
4
. GRAPHIC 1
5AH-28391-10-00
Unavailable
5
. GRAPHIC 3
5AH-28393-00-00
Unavailable
6
. GRAPHIC, UNDER COVER 1
5AH-283A1-00-00
Unavailable
7
. GRAPHIC, UNDER COVER 3
5AH-283A3-00-00
Unavailable
8
NUT, SPRING(3YX)
90183-05074-00
Unavailable
12
SEAT 3
4TV-2848L-03-00
Unavailable
13
SEAT 5
4TV-2848N-02-00
Unavailable
14
SEAT 7
4TV-2848R-00-00
Unavailable
15
DAMPER 2
4TV-28227-00-00
Unavailable
16
DAMPER
4TV-2834F-00-00
Unavailable
17
. DAMPER 5
4TV-2837J-00-00
Unavailable
18
DAMPER 6
4TV-2837K-00-00
Unavailable
19
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-Y283V-0E-P3
Unavailable
20
. GRAPHIC 20 (DEEP PURPLISH BLUE METALLIC C)
5AH-283B4-00-00
Unavailable
21
. EMBLEM 1
5PW-2839H-60-00
Unavailable
22
GRAPHIC 2
5AH-28392-10-00
Unavailable
23
. GRAPHIC 4
5AH-28394-00-00
Unavailable
24
. GRAPHIC, UNDER COVER 2
5AH-283A2-00-00
Unavailable
25
NUT, SPRING(3YX)
90183-05074-00
Unavailable
29
. SEAT 2
4TV-2848K-03-00
Unavailable
30
. SEAT 4
4TV-2848M-02-00
Unavailable
31
. SEAT
4TV-2848H-00-00
Unavailable
32
. SEAT 6
4TV-2848P-00-00
Unavailable
33
. DAMPER 1
4TV-28217-00-00
Unavailable
34
DAMPER
4TV-2834E-00-00
Unavailable
35
. DAMPER
4TV-28371-00-00
Unavailable
36
BODY, FRONT LOWER 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835J-00-P3
Unavailable
37
STAY, SUPPORT 1
4JH-2831T-00-00
Unavailable
38
BODY, FRONT UNDER 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835K-00-P3
Unavailable
39
COVER, LOWER
4TV-28385-00-P3
Unavailable
40
BOLT, FLANGE
95817-06010-00
Unavailable
42
SCREW, TAPPING(4KY)
97780-50016-00
Unavailable
43
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
44
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
45
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
46
STAY, SIDE 1
4JH-2832U-00-00
Unavailable
47
BOLT, FLANGE
95817-06010-00
Unavailable
48
BRACKET 5
4TV-2836H-00-00
Unavailable
49
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
50
BRACKET 3
4JH-2836F-00-00
Unavailable
51
BRACKET 4
4JH-2836G-00-00
Unavailable
52
GROMMET(3UL)
90480-01531-00
Unavailable
