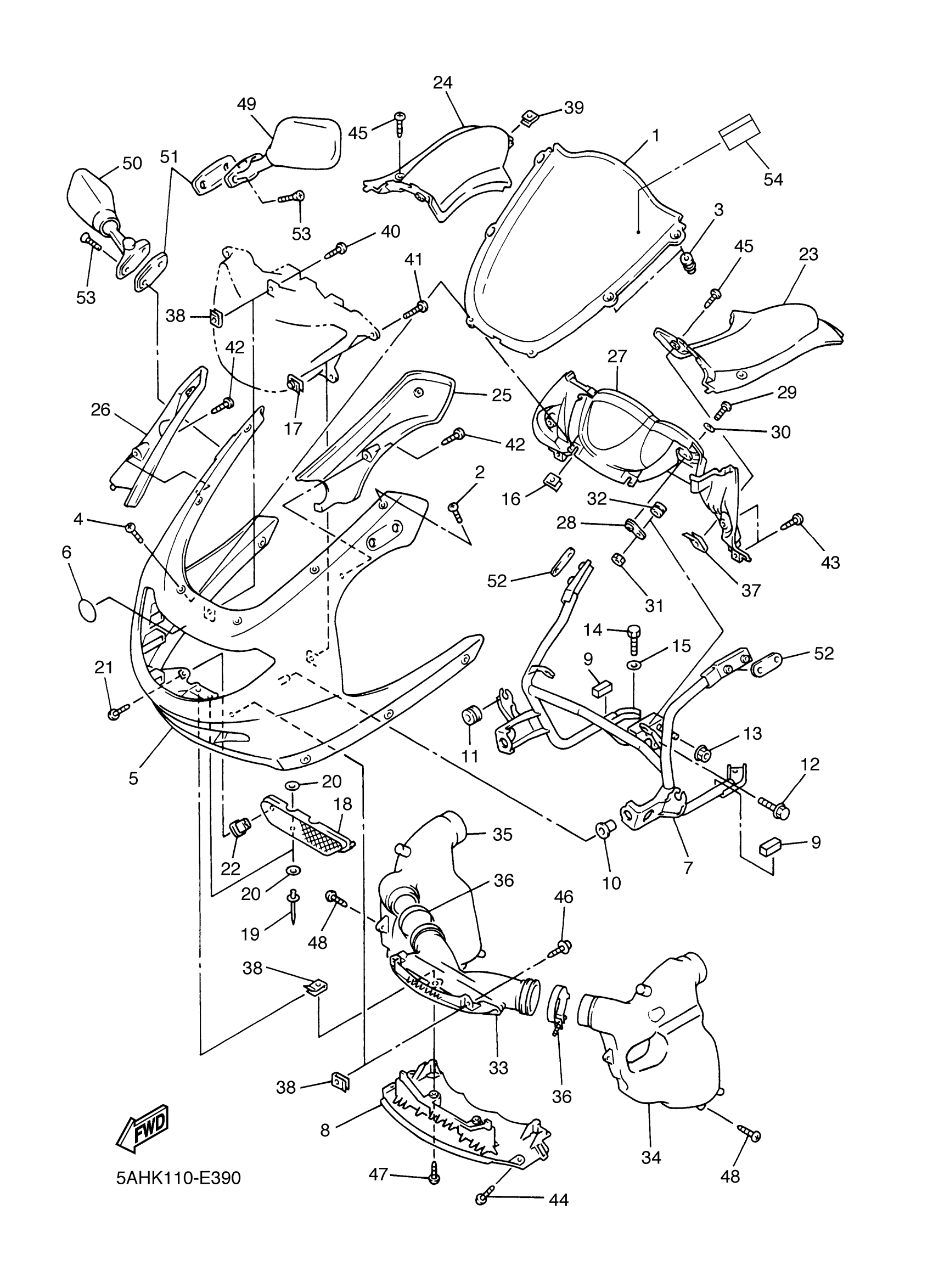

Yamaha YZF600RWC (YZF600R CA) 5AHN 2007 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

4TV-28381-01-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

3

NUT(1KT)

90179-05523-00

$8.49

4

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

5

BODY, FRONT UPPER 1

4TV-2835G-00-P3

$449.99

6

TUNING FORK MARK

5LV-2836B-01-00

$50.99

7

STAY 1

4TV-28356-00-00

Unavailable

8

BODY, FRONT UPPER 2 (DEEP PURPLISH BLUE METALLIC C)

4TV-2835H-00-P3

Unavailable

9

DAMPER

5G3-21747-00-00

Unavailable

10

GROMMET (4L0)

90480-18277-00

$8.49

11

GROMMET (13X)

90480-18330-00

$2.75

12

BOLT (34L)

90109-08789-00

$9.49

13

NUT, SELF-LOCKING

90185-08169-00

$8.49

14

BOLT, HEXAGON

97017-08016-00

$8.49

15

WASHER(6TA)

92907-08600-00

$3.03

16

NUT, SPRING(3YX)

90183-05074-00

Unavailable

17

NUT, SPRING(3YX)

90183-05074-00

Unavailable

18

PANEL 1

4TV-2172A-00-00

Unavailable

19

RIVET, BLIND

90267-40191-00

Unavailable

20

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

21

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

22

GROMMET(4TV)

90480-01605-00

Unavailable

23

PANEL, INNER 1

4TV-2836K-00-00

Unavailable

24

PANEL, INNER 2

4TV-2836L-00-00

Unavailable

25

PANEL, INNER 3

4TV-2836M-00-00

Unavailable

26

PANEL, INNER 4

4TV-2836N-00-00

Unavailable

27

PANEL, INNER 5

4TV-2836R-00-00

Unavailable

28

BRACET 7

4TV-2833A-00-00

Unavailable

29

SCREW, PAN

98517-05012-00

Unavailable

30

WASHER(1RW)

92907-05600-00

Unavailable

31

NUT(6TA)

95317-06600-00

Unavailable

32

GROMMET(3GM)

90480-14585-00

Unavailable

33

DUCT 1

4TV-2838N-00-00

Unavailable

34

DUCT 2

4TV-2838R-00-00

Unavailable

35

DUCT 3

4TV-2838T-00-00

Unavailable

36

HOSE CLAMP ASSY

90450-64004-00

Unavailable

37

NUT, SPRING(1YT)

90183-05042-00

Unavailable

38

NUT, SPRING(1YT)

90183-05042-00

Unavailable

39

NUT, SPRING(1YT)

90183-05042-00

Unavailable

40

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

41

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

42

SCREW, TAPPING(4TV)

90167-05077-00

Unavailable

43

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

44

SCREW, TAPPING(4KY)

97780-50016-00

Unavailable

45

SCREW, TAPPING(4TV)

90167-05077-00

Unavailable

46

SCREW, TAPPING (35R)

90167-05015-00

Unavailable

47

SCREW, TAPPING(4TV)

90167-05077-00

Unavailable

48

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

49

REAR VIEW MIRROR ASSY(LEFT)

4FM-26280-10-00

Unavailable

50

REAR VIEW MIRROR ASSY(RIGHT)

4FM-26290-10-00

Unavailable

51

PLATE, MIRROR FITTING 2

4FM-26299-00-00

Unavailable

52

PLATE, MIRROR FITTING 1

3XV-26298-00-00

Unavailable

53

SCREW, COUNTERSUNK(3JP)

90151-06061-00

Unavailable

54

LABEL, CAUTION

5JW-2835Y-00-00

Unavailable
