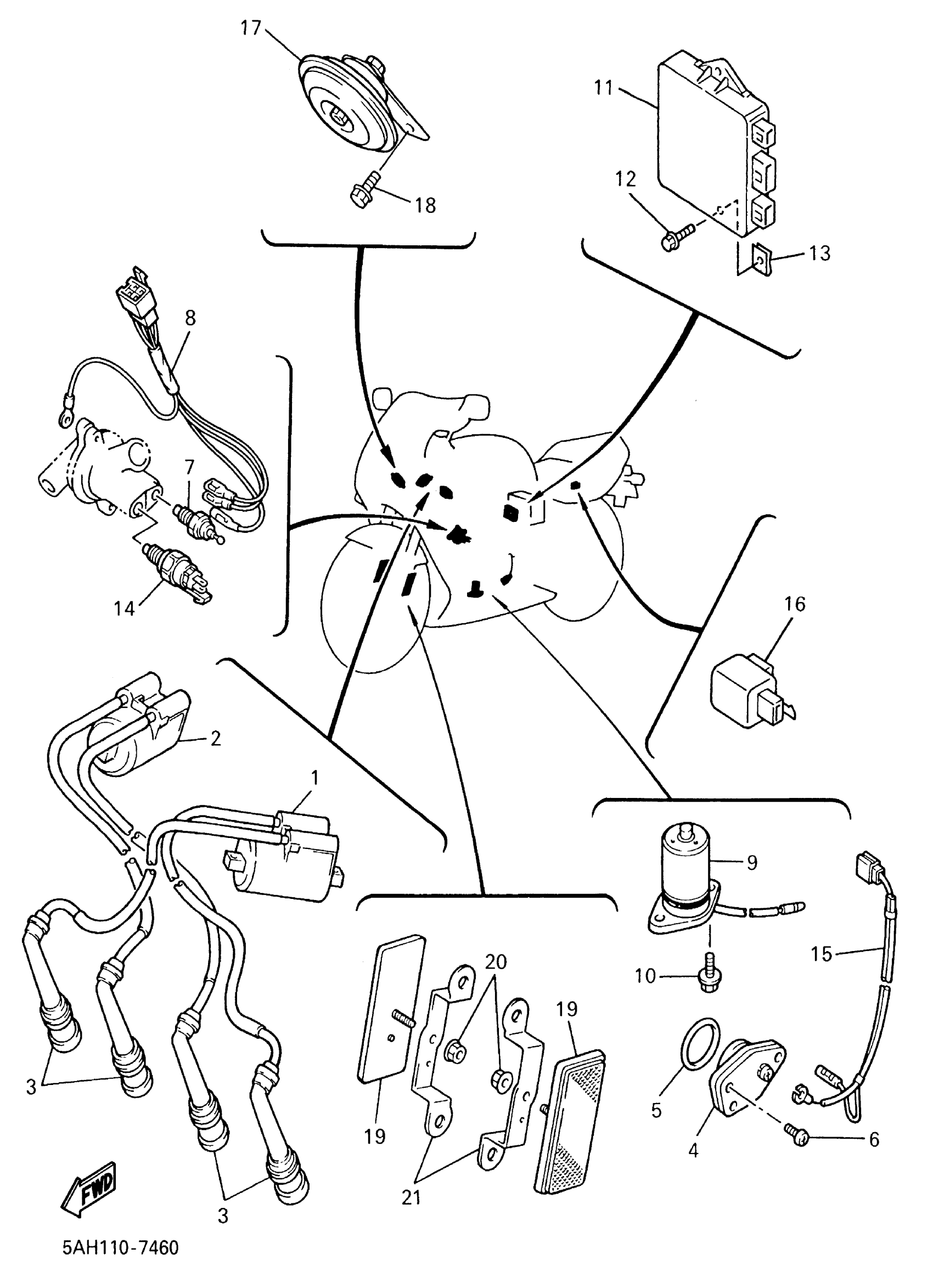

Yamaha YZF600RVC (YZF600R CA) 5AHL 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4KM-82310-02-00

Unavailable

2

IGNITION COIL ASY

4BH-82320-01-00

Unavailable

3

PLUG CAP ASSY

4TV-82370-00-00

$116.85

4

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$24.62

5

O-RING (371)

93210-29196-00

$6.02

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

7

THERMO UNIT

11H-83591-00-00

$97.00

8

WIRE, SUB LEAD

3TJ-82583-00-00

Unavailable

9

OIL LEVEL GAUGE ASSY

4JH-85720-03-00

Unavailable

10

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

11

IGNITOR UNIT ASSY

4TV-82305-50-00

Unavailable

12

. BOLT, FLANGE

95027-06020-00

$0.93

13

NUT, SPRING (26H)

90183-06023-00

$6.94

14

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

15

WIRE, LEAD

1WG-82541-00-00

Unavailable

16

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

17

HORN

4TH-83371-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

21

BRACKET, REFLECTOR 1

4SV-85112-00-00

Unavailable
