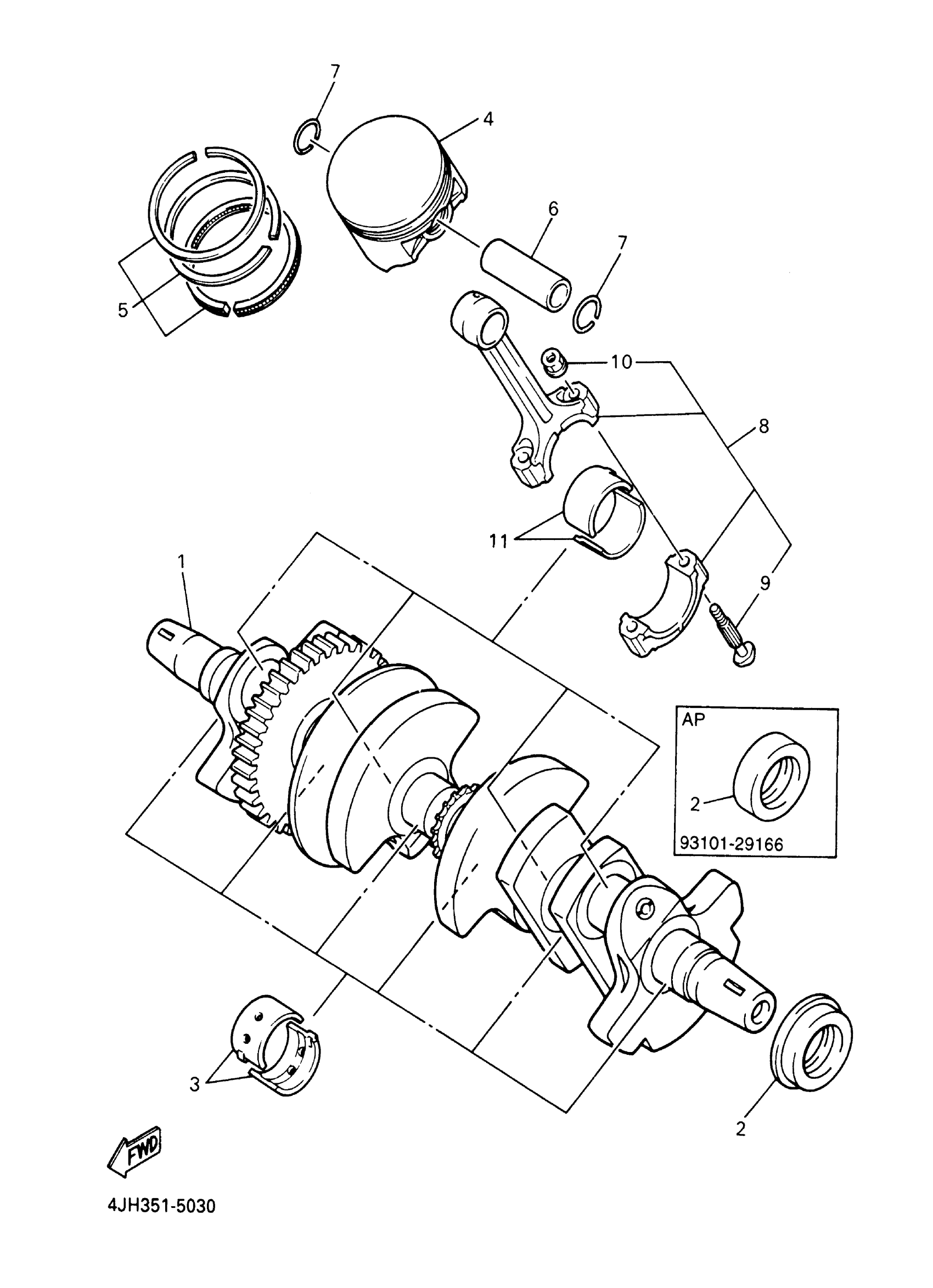

Yamaha YZF600RVC (YZF600R CA) 5AHL 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4TV-11411-00-00

Unavailable

2

OIL SEAL(4JH)

93101-29165-00

Unavailable

2

OIL SEAL(4JH)

93101-29166-00

$28.99

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-00-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-10-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-20-00

$17.49

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-30-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-40-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4TV-11416-50-00

$8.99

4

PISTON (STD)

4TV-11631-00-00

Unavailable

5

PISTON RING SET (STD)

4JH-11603-00-00

$75.99

6

PIN, PISTON

4JH-11633-00-00

$38.99

7

CLIP (1J7)

90468-12069-00

$9.49

8

CONNECTING ROD ASSY

4JH-11650-00-00

Unavailable

9

BOLT, CONNECTING ROD

4JH-11654-00-00

$13.49

10

NUT(4JH)

90179-07652-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

4TV-11656-00-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

4TV-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

4TV-11656-20-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

4TV-11656-30-00

Unavailable
