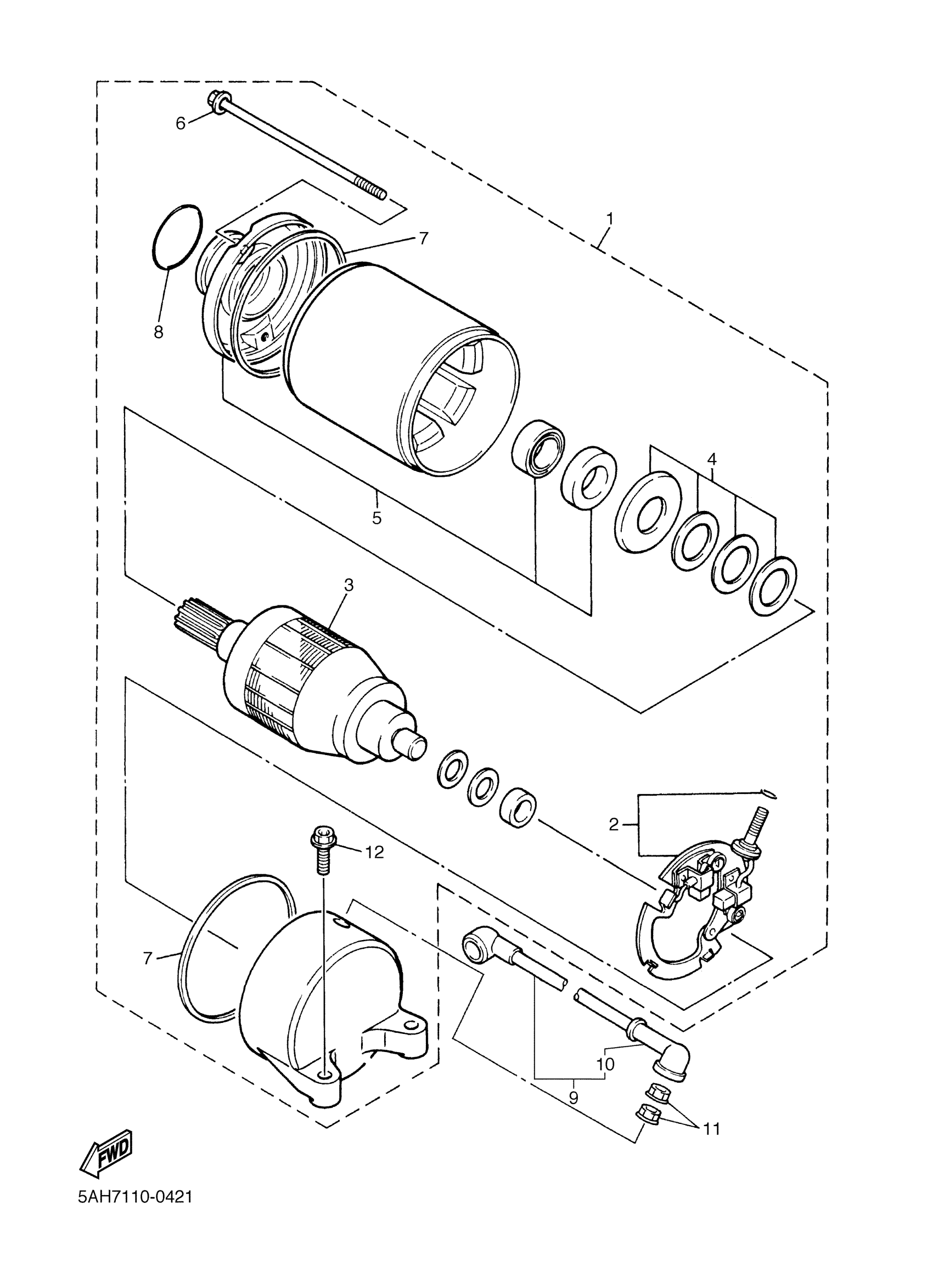

Yamaha YZF600RTC (YZF600R CA) 5AHJ 2005 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR UNIT

3HE-81890-00-00

$681.88

2

BRUSH HOLDER ASSY

3HE-81840-00-00

$163.73

3

ARMATURE ASSY

3HE-81850-00-00

Unavailable

4

WASHER KIT

3AJ-81809-00-00

Unavailable

5

FRONT BRACKET ASSY

3HE-81830-00-00

Unavailable

6

BOLT

3HE-81826-00-00

Unavailable

7

GASKET

35C-81844-00-00

Unavailable

8

O-RING (437)

93210-24235-00

$5.34

9

WIRE, STARTER

1HX-81815-00-00

$57.38

10

.. CAP

5H0-81871-00-00

Unavailable

11

NUT

4XV-8182A-00-00

$5.86

12

BOLT, SMALL FLANGE

95027-06025-00

$2.95
