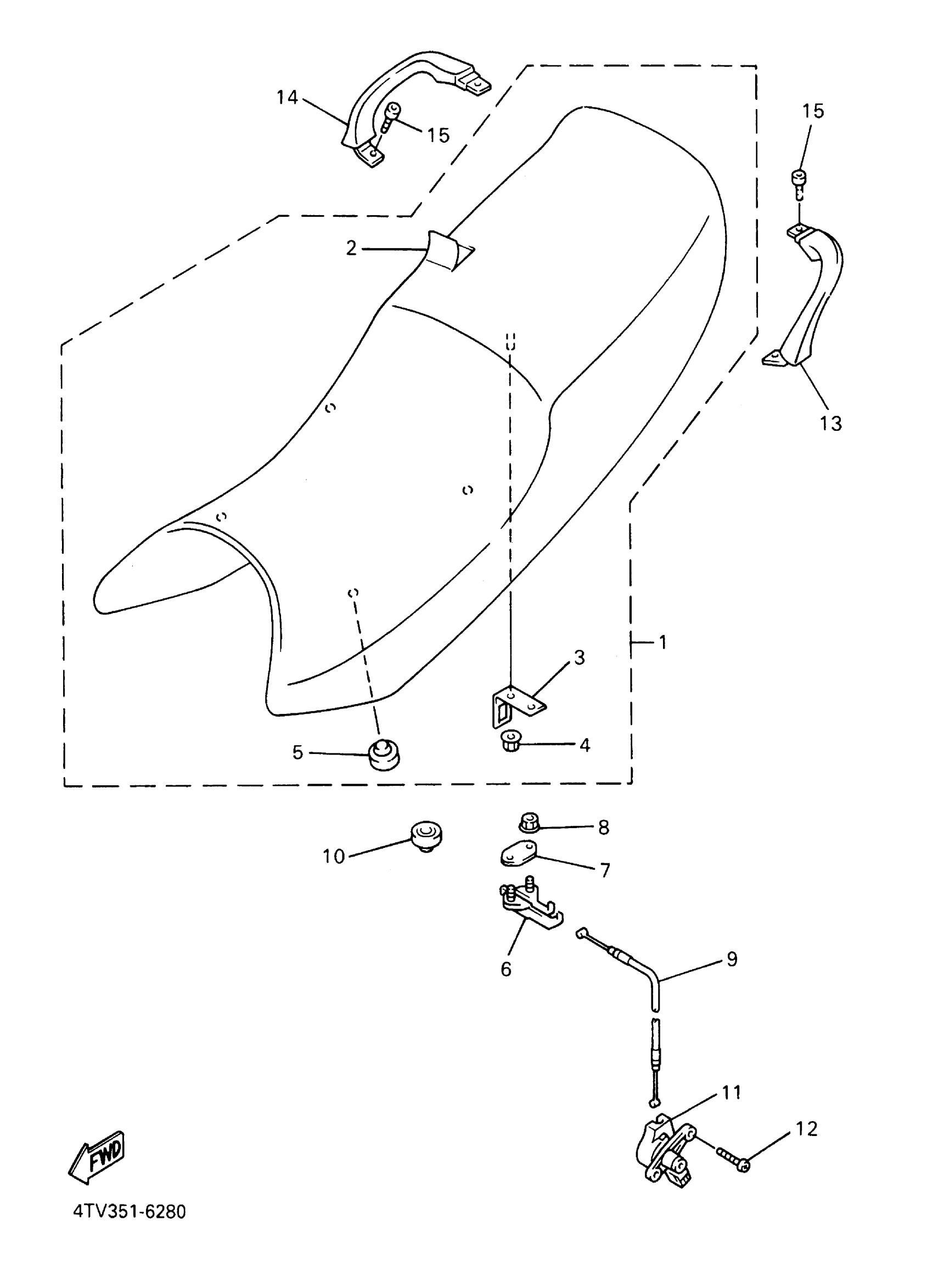

Yamaha YZF600RTC (YZF600R CA) 5AHJ 2005 SEAT Diagram
#
Description
Price
1
DOUBLE SEAT ASSY
4TV-24730-00-00
Unavailable
2
. COVER, SEAT
4TV-24731-00-00
Unavailable
7
PLATE
4BP-24792-00-00
Unavailable
9
CABLE, SEAT LOCK
4TV-2478E-01-00
Unavailable
11
HELMET HANGER ASSY
3YX-21308-00-00
Unavailable
12
SCREW
90149-06313-00
Unavailable
13
STAY, REAR
4BP-21644-01-00
Unavailable
14
STAY, REAR
4BP-21645-01-00
Unavailable
