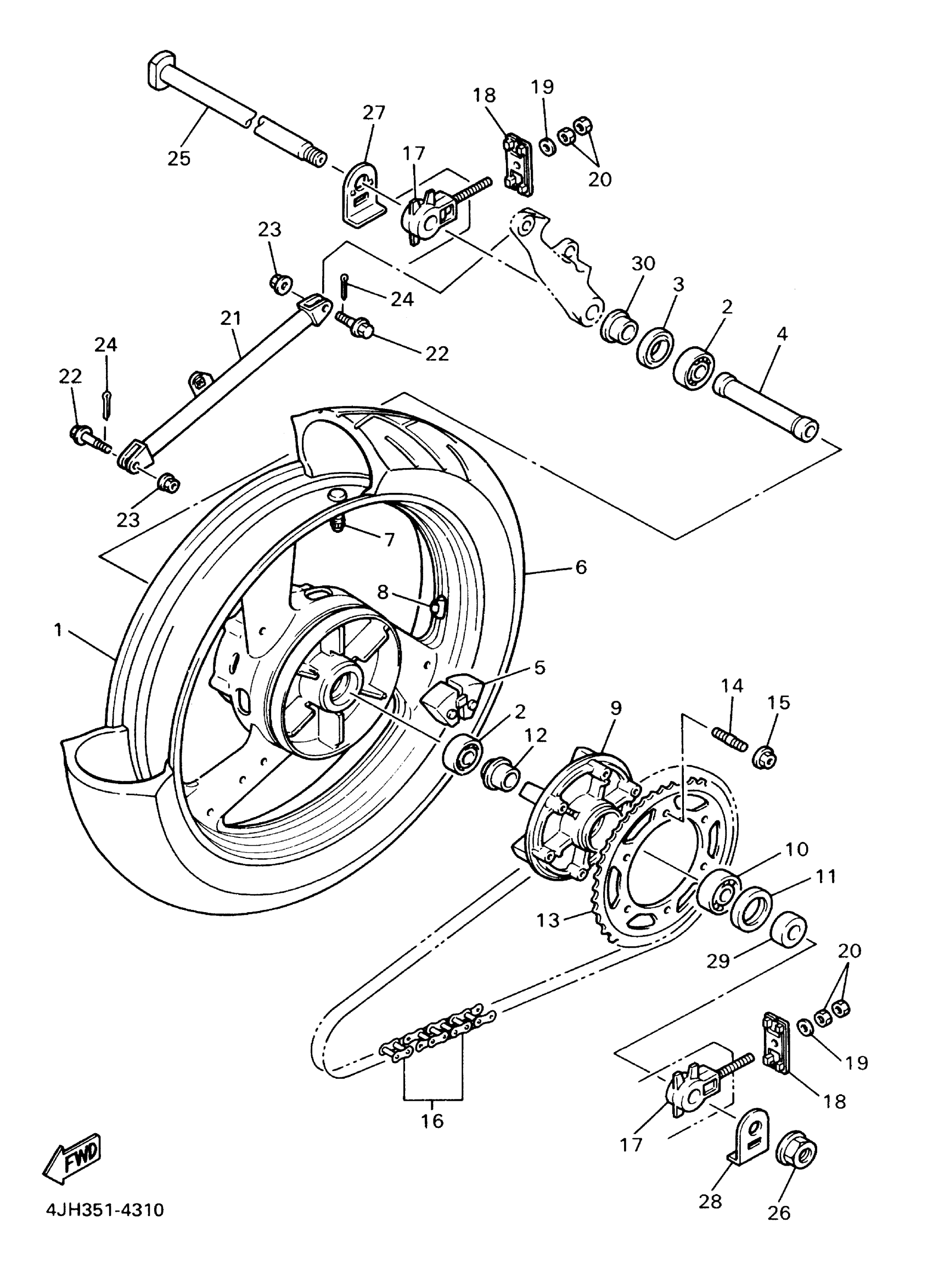

Yamaha YZF600RTC (YZF600R CA) 5AHJ 2005 REAR WHEEL Diagram
#
Description
Price
1
CAST WHEEL, REAR
4JH-25338-00-7B
Unavailable
4
COLLAR(4JH)
90387-2004F-00
Unavailable
6
160/60ZR17 BS BT50R
94116-1711V-00
Unavailable
8
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
9
CLUTCH, HUB
4FM-25366-00-00
Unavailable
10
BEARING(4HD)
93306-20644-00
Unavailable
12
COLLAR
90387-2004E-00
Unavailable
13
SPROCKET, DRIVEN (47T)
4JH-25447-00-00
Unavailable
14
BOLT, STUD(4HD)
90116-10575-00
Unavailable
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
16
CHAIN(4JH)
94581-59108-00
Unavailable
17
PULLER, CHAIN 1
3XW-25388-00-00
Unavailable
18
END 1
4JH-22174-00-00
Unavailable
19
WASHER(6TA)
92907-08600-00
Unavailable
20
NUT(6TA)
95337-08600-00
Unavailable
21
BAR, TENSION
4JH-25371-01-00
Unavailable
22
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
23
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
24
PIN, COTTER (648)
91490-20015-00
Unavailable
25
AXLE, WHEEL
3GM-25381-10-00
Unavailable
26
NUT, SELF-LOCKING
95607-18200-00
Unavailable
27
WASHER, WHEEL
4JH-25384-03-00
Unavailable
28
WASHER, WHEEL
4JH-25384-12-00
Unavailable
29
COLLAR
90387-2004C-00
Unavailable
30
COLLAR(4JH)
90387-2004D-00
Unavailable
