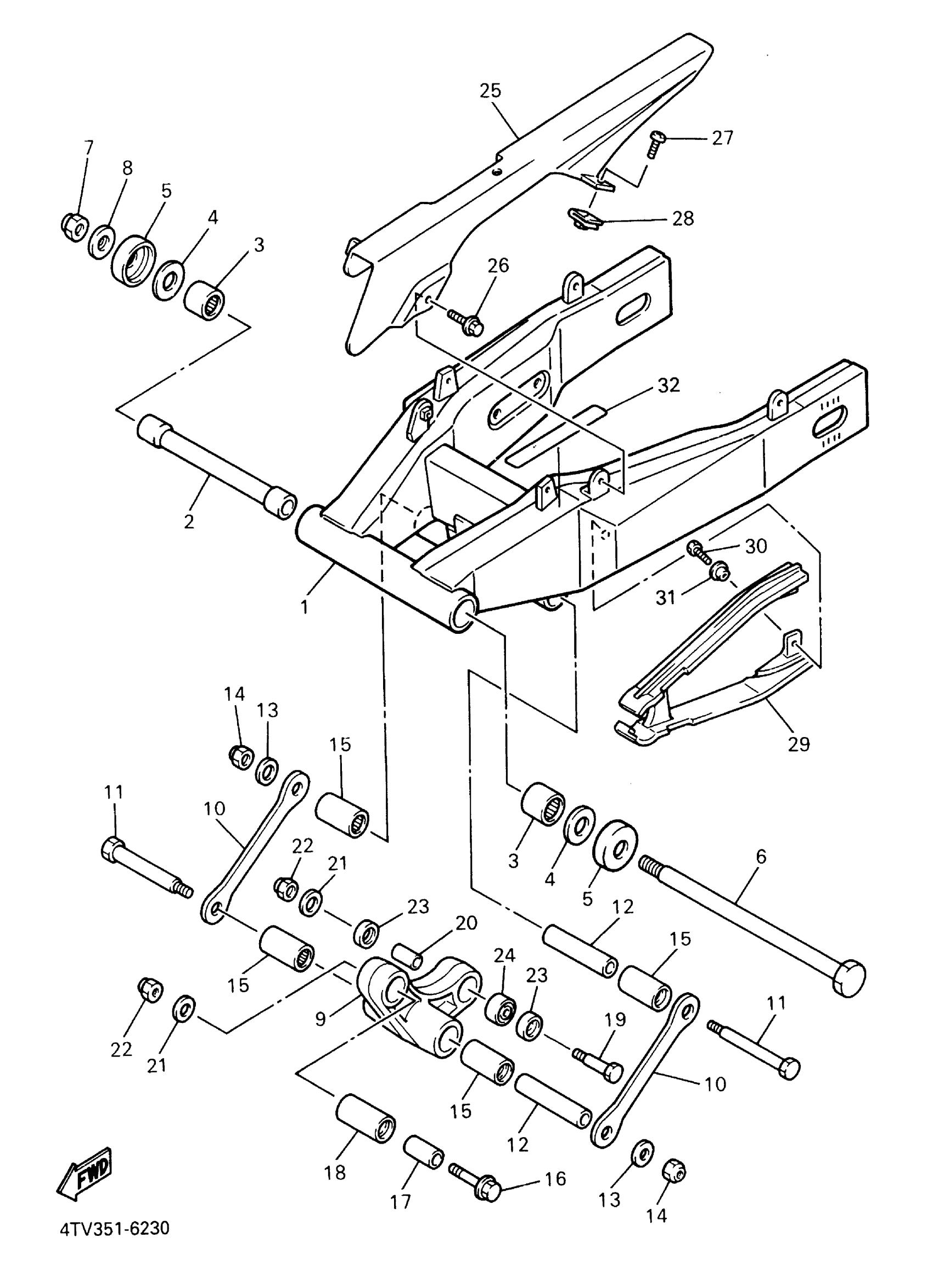

Yamaha YZF600RSC (YZF600R CA) 5AHG 2004 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4JH-22110-00-35

Unavailable

2

BUSH

47X-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

WASHER, PLATE(48H)

90201-161J3-00

Unavailable

5

COVER, THRUST 2

4X7-22129-00-00

$22.99

6

SHAFT, PIVOT

1UY-22141-10-00

$61.99

7

NUT, SELF-LOCKING

90185-16002-00

$16.99

8

WASHER, PLATE (5X6)

90201-160F6-00

$8.49

9

ARM, RELAY

4TV-2217A-00-00

Unavailable

10

ARM 1

3GM-2217M-00-00

Unavailable

11

BOLT(2GH)

90101-12673-00

$16.99

12

COLLAR(2GH)

90387-126T1-00

Unavailable

13

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

14

NUT, U (4PM)

95617-12100-00

$4.16

15

BEARING, CYLINDRICAL(2GH)

93317-41761-00

$42.99

16

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

17

COLLAR(2MF)

90387-100T8-00

Unavailable

18

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

19

BOLT(1WG)

90101-10659-00

Unavailable

20

COLLAR(3TJ)

90387-127W0-00

Unavailable

21

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

22

NUT, U

95617-10100-00

Unavailable

23

OIL SEAL

93109-17071-00

Unavailable

24

BEARING, CYLINDRICAL(3YL)

93317-31771-00

Unavailable

25

CASE, CHAIN

4JH-22311-00-00

Unavailable

26

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

27

SCREW, BINDING (10V)

90154-05013-00

Unavailable

28

NUT, SPRING

90183-051A0-00

Unavailable

29

SEAL, GUARD

4JH-22151-00-00

Unavailable

30

BOLT(8CP)

97017-06014-00

Unavailable

31

C0LLAR

90387-062M9-00

Unavailable

32

TAPE

3TU-28344-00-00

Unavailable
