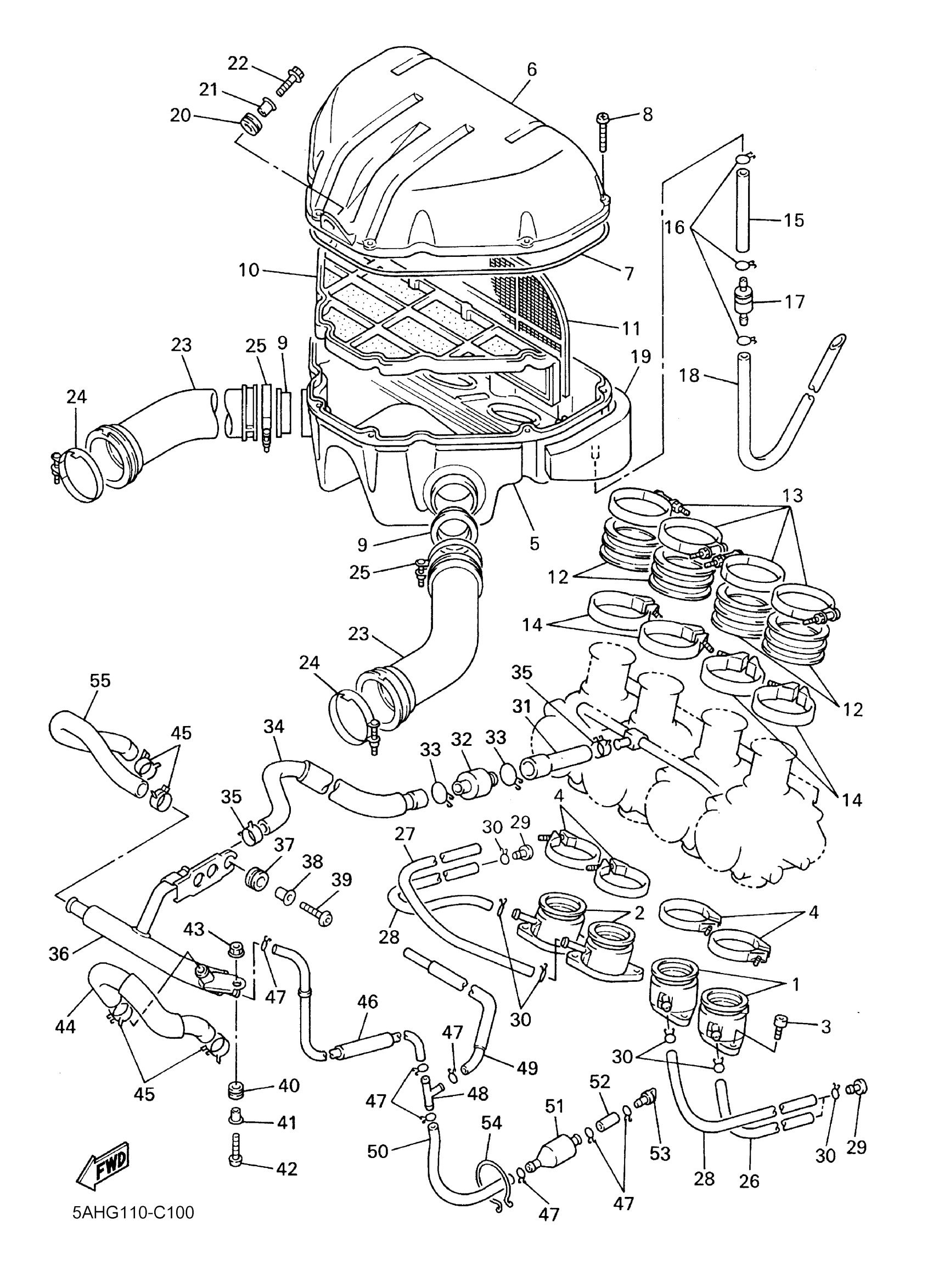

Yamaha YZF600RSC (YZF600R CA) 5AHG 2004 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
4JH-13586-02-00
Unavailable
2
JOINT, CARBURETOR 2
4JH-13596-02-00
Unavailable
3
BOLT,SOCKET
91317-06020-00
Unavailable
4
HOSE CLAMP ASSY
90450-52002-00
Unavailable
5
CASE, AIR CLEANER 1
4WE-14411-00-00
Unavailable
6
CASE, AIR CLEANER 2
4TV-14421-00-00
Unavailable
7
SEAL
4KM-14452-00-00
Unavailable
9
PIPE, SILENCER
4TV-1441J-00-00
Unavailable
12
JOINT, AIR CLEANER 1
4TV-14453-00-00
Unavailable
14
HOSE CLAMP ASSY
90450-60005-00
Unavailable
16
CLIP
90467-100A1-00
Unavailable
17
FILTER ASSY
4X7-2149Y-00-00
Unavailable
18
HOSE (L600)
90445-11012-00
Unavailable
19
DAMPER
5AH-14409-00-00
Unavailable
20
GROMMET(3AA)
90480-12497-00
Unavailable
21
COLLAR
90387-06159-00
Unavailable
22
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
23
JOINT, SURGE TANK 1
4TV-1446F-00-00
Unavailable
25
HOSE CLAMP ASSY
90450-62006-00
Unavailable
26
HOSE (L770)
90445-090G9-00
Unavailable
27
HOSE (L770)
90445-090G9-00
Unavailable
28
HOSE (L270)
90445-09757-00
Unavailable
29
PLUG
90338-05240-00
Unavailable
30
CLIP (8L2)
90467-08017-00
Unavailable
31
PIPE, JOINT (L55)
4TV-14485-01-00
Unavailable
32
SEAL
3GM-14467-00-00
Unavailable
33
CLIP
90467-20M15-00
Unavailable
34
PIPE
4TV-14197-00-00
Unavailable
35
CLIP (4V3)
90467-19051-00
Unavailable
36
PIPE
4TV-14466-00-00
Unavailable
37
GROMMET (29L)
90480-15363-00
Unavailable
38
COLLAR 437216330000
90387-07391-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06087-00
Unavailable
40
GROMMET (2T4)
90480-12237-00
Unavailable
41
COLLAR(50M)
90387-087L0-00
Unavailable
42
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
43
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
44
PIPE
4TV-14148-00-00
Unavailable
45
CLIP(MG5)
90467-20154-00
Unavailable
46
PIPE, DRAIN
4TV-1443E-00-00
Unavailable
47
CLIP(1JH)
90467-11106-00
Unavailable
48
WAY 3(7U6)
90413-08009-00
Unavailable
49
HOSE (L390)
90445-110H9-00
Unavailable
50
HOSE (L210)
90445-110F5-00
Unavailable
51
CUP, DRAIN
4TV-14226-00-00
Unavailable
52
HOSE (L30)
90445-11795-00
Unavailable
53
PLUG, DRAIN
4TV-14191-00-00
Unavailable
54
CLAMP(2LM)
90464-44109-00
Unavailable
55
PIPE
4TV-14149-00-00
Unavailable
