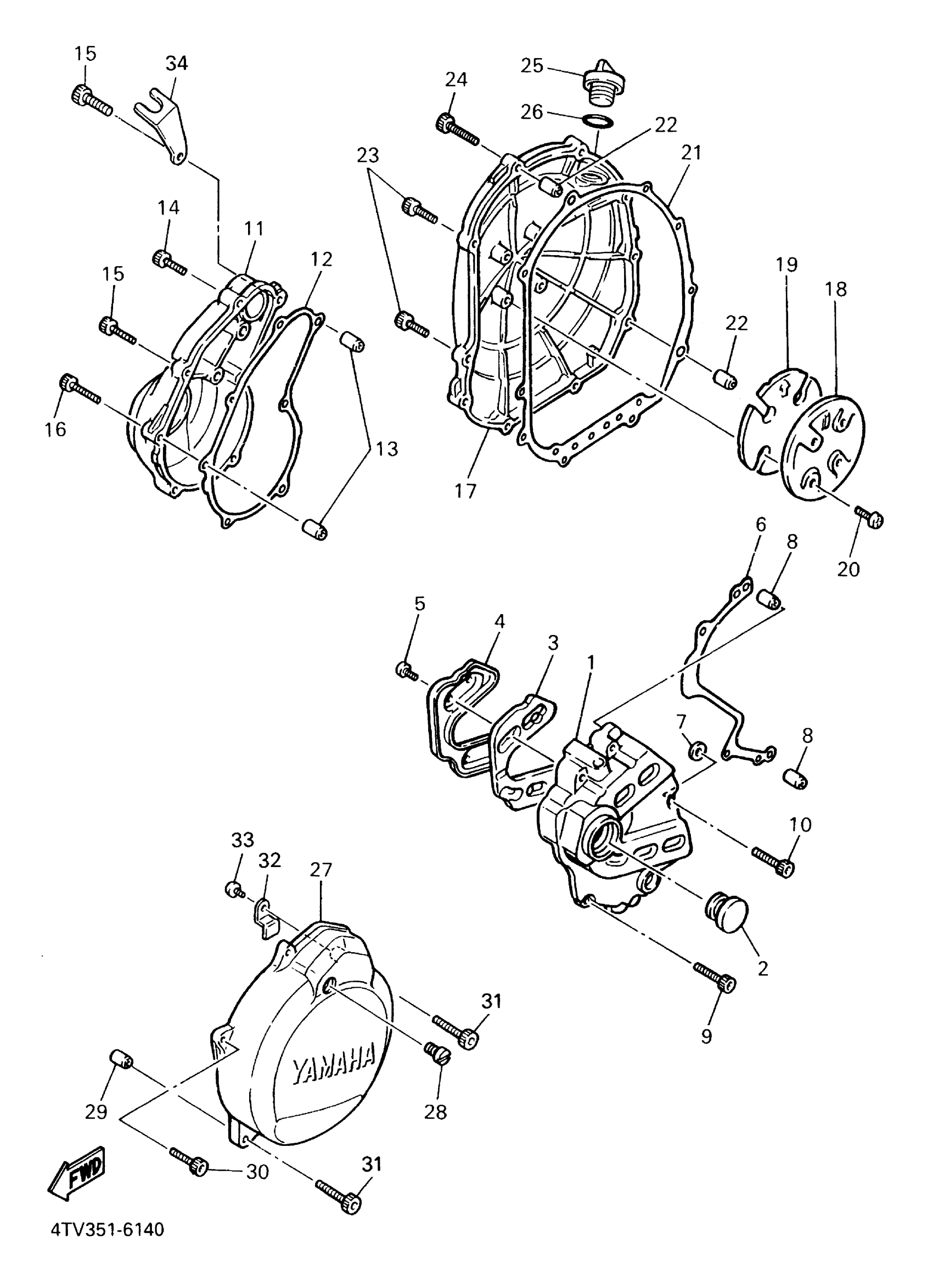

Yamaha YZF600RSC (YZF600R CA) 5AHG 2004 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4JH-15411-00-00

Unavailable

2

COVER, CAP

1L9-15417-00-00

Unavailable

3

DAMPER, ENGINE MOUNT 1

1WG-15316-00-00

Unavailable

4

COVER, CAP 2

1WG-15427-00-00

Unavailable

5

SCREW, BINDING

98907-05008-00

$1.48

6

GASKET, CRANKCASE COVER 1

3HE-15451-10-00

$7.66

7

GASKET

3FA-15467-00-00

$6.03

8

PIN, DOWEL(3XW)

91808-16023-00

$5.26

9

BOLT,SOCKET

91317-06040-00

$3.22

10

BOLT,SOCKET

91317-06050-00

$3.14

11

COVER, CRANKCASE 2

4JH-15421-00-00

$122.12

12

GASKET, CRANKCASE COVER 2

4TV-15461-00-00

$16.89

13

PIN, DOWEL(3XW)

91808-16023-00

$5.26

14

BOLT,SOCKET HEAD

91314-06025-00

$6.22

15

BOLT, SOCKET

91314-06035-00

$5.75

16

BOLT, SOCKET

91314-06045-00

Unavailable

17

COVER, CRANKCASE 3

4JH-15431-00-00

Unavailable

18

COVER, GENERATOR 2

1WG-15425-00-00

Unavailable

19

DAMPER, ENGINE MOUNT 2

1WG-15326-00-00

Unavailable

20

SCREW, BINDING

98907-05008-00

$1.48

21

GASKET, CRANKCASE COVER 3

4TV-15462-00-00

Unavailable

22

PIN, DOWEL(3XW)

91808-16023-00

$5.26

23

BOLT,SOCKET HEAD

91314-06025-00

$6.22

24

BOLT, SOCKET

91314-06035-00

$5.75

25

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

26

O-RING(1KT)

93210-27778-00

Unavailable

27

COVER, GENERATOR

4TV-15415-00-00

Unavailable

28

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

29

PIN, DOWEL(3XW)

91808-16023-00

$5.26

30

BOLT,SOCKET HEAD

91314-06025-00

$6.22

31

BOLT, SOCKET

91314-06035-00

$5.75

32

CLAMP(3KM)

90462-10182-00

Unavailable

33

SCREW, PAN

98507-06010-00

Unavailable

34

STAY

4JH-14413-00-00

Unavailable
