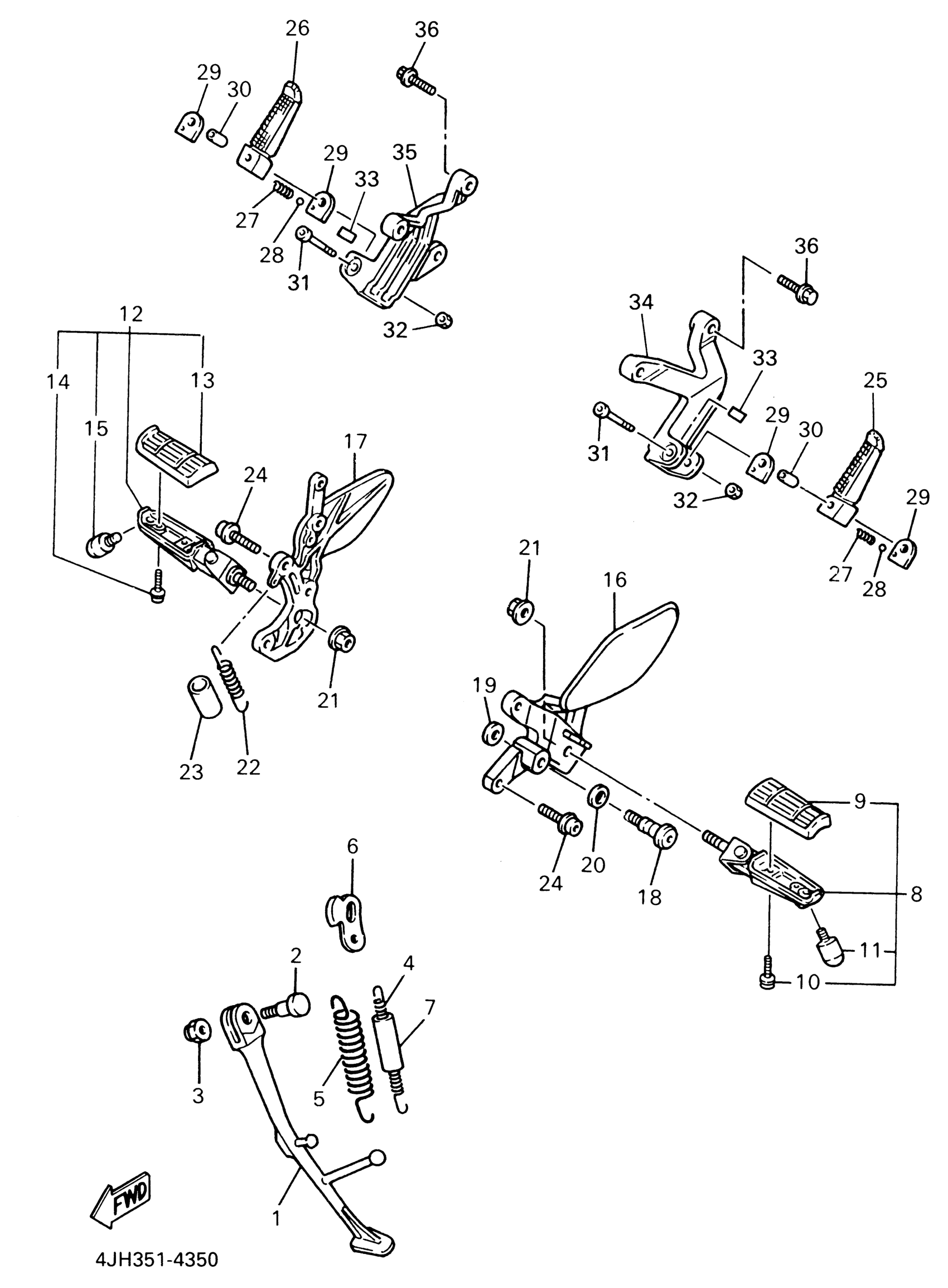

Yamaha YZF600RRC (YZF600R CA) 5AHE 2003 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

4FM-27311-00-00

Unavailable

2

BOLT(2GH)

90109-104E6-00

$9.49

3

NUT, SELF LOCKING (3G1)

90185-10091-00

$9.49

4

SPRING, TENSION (4K0)

90506-18224-00

$5.60

5

SPRING, TENSION (4K0)

90506-26225-00

$11.49

6

LINK, SIDE STAND

4FM-27315-00-00

Unavailable

7

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

8

FRT FOOTREST ASY L

4JH-27410-01-00

Unavailable

9

COVER, FOOTREST

3YX-27413-00-00

$29.99

10

SCREW, PAN HEAD

98507-05014-00

$8.49

11

BOLT

3HE-27435-00-00

$28.99

12

FRONT FOOTREST ASSY (RIGHT)

4JH-27420-01-00

Unavailable

13

COVER, FOOTREST

3YX-27413-00-00

$29.99

14

SCREW, PAN HEAD

98507-05014-00

$8.49

15

BOLT

3HE-27435-00-00

$28.99

16

BRACKET 2

4FM-27442-02-00

Unavailable

17

BRACKET 3

4FM-27443-02-00

Unavailable

18

BOLT

4BP-27434-11-00

Unavailable

19

WASHER (853)

90201-08326-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable

21

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

22

SPRING, TENSION(46X)

90506-20377-00

Unavailable

23

HOSE(3GM)

90446-17346-00

Unavailable

24

BOLT,SOCKET

91314-08025-00

Unavailable

25

FOOTREST, REAR 1

3XV-27431-01-00

Unavailable

26

FOOTREST, REAR 2

3XV-27441-11-00

Unavailable

27

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

28

BALL

93501-04011-00

Unavailable

29

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

30

COLLAR (24R)

90387-064H8-00

Unavailable

31

BOLT, SMALL FLANGE

95024-06045-00

Unavailable

32

NUT, U FLANGE

95604-06200-00

Unavailable

33

PLATE, FOOTREST

1HX-27415-00-00

Unavailable

34

BRACKET 4

4JH-2741L-03-00

Unavailable

35

BRACKET 5

4JH-2742L-10-00

Unavailable

36

BOLT, FLANGE(4FM)

95814-08035-00

Unavailable
