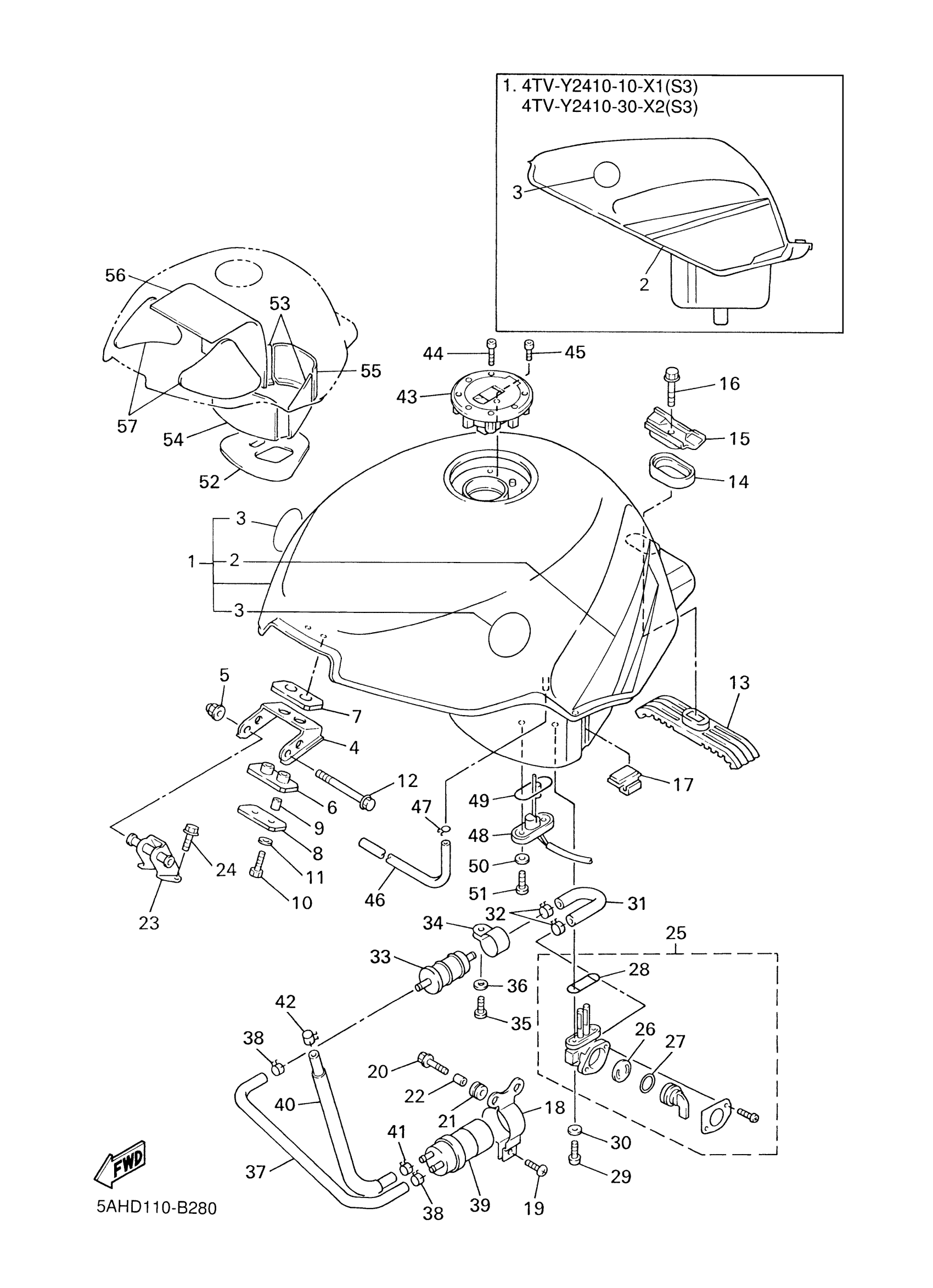

Yamaha YZF600RRC (YZF600R CA) 5AHE 2003 FUEL TANK Diagram
#
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
4TV-Y2410-10-09
Unavailable
1
FUEL TANK COMP.
4TV-Y2410-10-X6
Unavailable
1
FUEL TANK COMP. (DEEP PURPLISH BLUE METALLIC C)
4TV-Y2410-30-X1
Unavailable
1
FUEL TANK COMP.
4TV-Y2410-30-X2
Unavailable
2
. GRAPHIC SET (DEEP PURPLISH BLUE METALLIC C)
5AH-24240-60-00
Unavailable
2
GRAPHIC SET
5AH-24240-70-00
Unavailable
3
EMBLEM
5VX-2411B-10-00
Unavailable
3
EMBLEM
5VX-2411B-10-00
Unavailable
4
BRACKET, FUEL TANK 1
4FM-24191-00-00
Unavailable
6
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
7
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
8
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
11
WASHER(6TA)
92907-06600-00
Unavailable
12
BOLT, FLANGE
95817-06075-00
Unavailable
13
DAMPER, LOCATING 2
33M-24182-01-00
Unavailable
14
DAMPER, LOCATING 3
3Y6-24183-00-00
Unavailable
15
WASHER, SPECIAL
4FM-24187-00-00
Unavailable
16
BOLT, FLANGE
95817-08035-00
Unavailable
17
DAMPER, LOCATING 3
4TV-24183-10-00
Unavailable
18
BRACKET, FUEL PUMP
3CV-24491-10-00
Unavailable
19
SCREW, BINDING
98907-05010-00
Unavailable
20
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
21
GROMMET (1E5)
90480-13163-00
Unavailable
22
COLLAR(47X)
90387-060G7-00
Unavailable
23
STAY, FUEL TANK 1
4TV-24115-00-00
Unavailable
24
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
25
FUEL COCK ASSY 1
4TV-24500-00-00
Unavailable
26
VALVE
3XV-24523-00-00
Unavailable
27
SEAL, COCK
3XV-24534-00-00
Unavailable
28
O-RING
4X8-24512-00-00
Unavailable
29
SCREW, PAN
98517-06020-00
Unavailable
30
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
31
PIPE 3
4TV-24313-00-00
Unavailable
32
CLIP (5K4)
90467-14057-00
Unavailable
33
FILTER ASSY
4TV-24560-00-00
Unavailable
34
CLAMP, FUEL PIPE 1
4BR-24366-00-00
Unavailable
35
SCREW, PAN
98517-06012-00
Unavailable
36
WASHER(6TA)
92907-06600-00
Unavailable
37
PIPE, FUEL 1
4TV-24311-00-00
Unavailable
38
CLIP (5K4)
90467-14057-00
Unavailable
39
FUEL PUMP COMP.
4TV-13907-01-00
Unavailable
40
HOSE (L230)
4TV-14294-00-00
Unavailable
41
CLIP(3YX)
90467-13133-00
Unavailable
42
CLIP (7K7)
90467-11044-00
Unavailable
43
CAP ASSY
4FM-24602-20-00
Unavailable
43
CAP ASSY
4HM-24602-01-00
Unavailable
44
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
45
BOLT, SOCKET
91317-05010-00
Unavailable
46
HOSE
90445-11M78-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
48
SENDER UNIT ASSY, FUEL METER
3GM-85752-03-00
Unavailable
49
GASKET, SENDER UNIT
42X-85753-00-00
Unavailable
50
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
51
SCREW 366241430000
90149-06008-00
Unavailable
52
SCREW, PAN
98517-06020-00
Unavailable
53
DAMPER, SIDE COVER
4TV-24145-10-00
Unavailable
54
DAMPER, SIDE COVER
4TV-24145-20-00
Unavailable
55
DAMPER, SIDE COVER
4TV-24145-30-00
Unavailable
56
DAMPER, SIDE COVER
4TV-24145-40-00
Unavailable
57
DAMPER, SIDE COVER
4TV-24145-50-00
Unavailable
