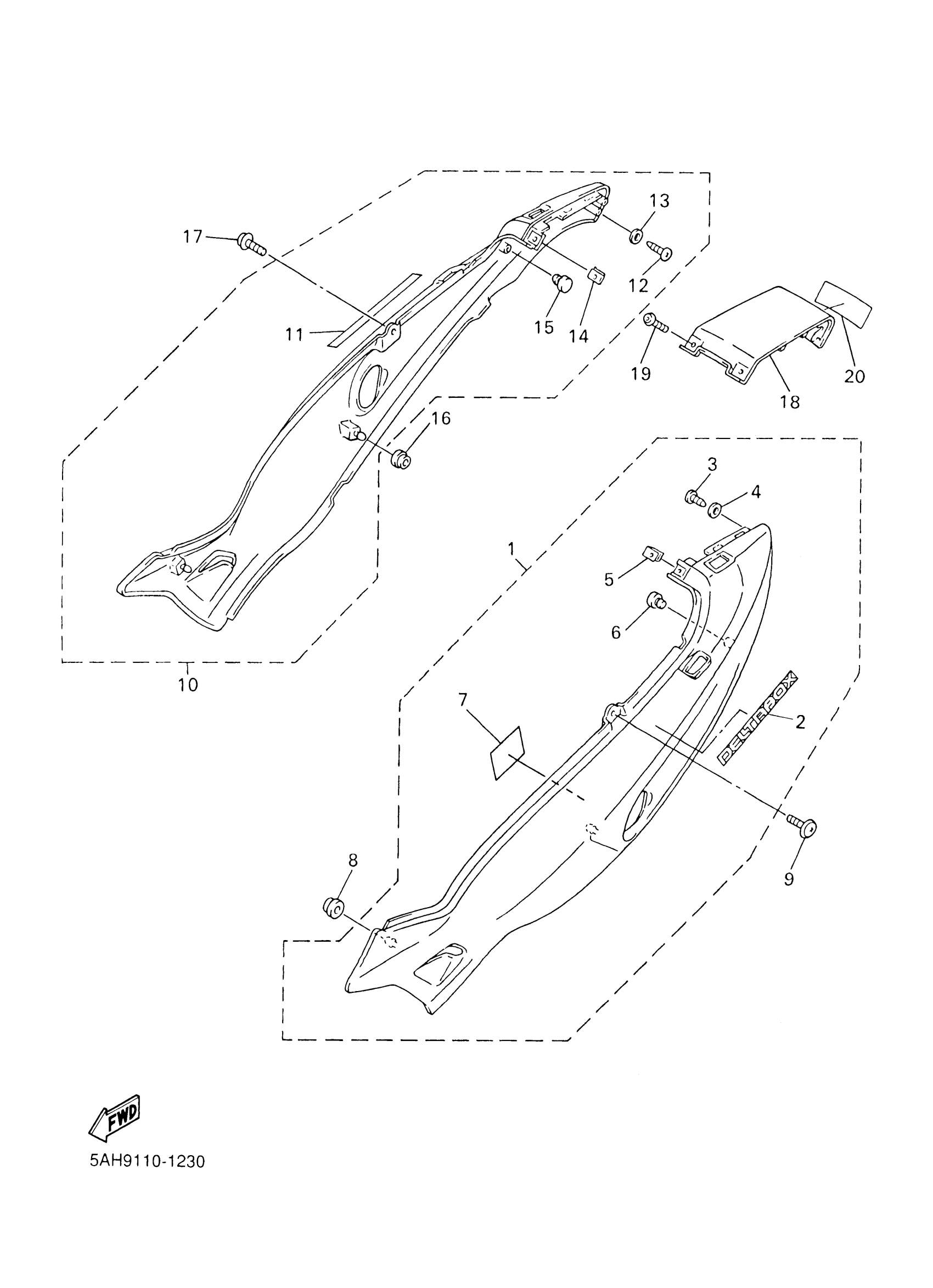

Yamaha YZF600RNC (YZF600R CA) 5AHA 2001 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2171-0M-P4

Unavailable

1

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2171-0N-P4

Unavailable

1

COVER, SIDE 1 (BLACK 2)

4TV-Y2171-0R-4B

Unavailable

1

COVER, SIDE 1 (BLACK 2)

4TV-Y2171-0S-4B

Unavailable

2

. EMBLEM (VIVID RED COCKTAIL 7)

4SV-28328-40-00

Unavailable

2

. EMBLEM (DEEP PURPLISH BLUE METALLIC C)

4SV-28328-60-00

Unavailable

3

SCREW, TRUSS TAP.

97707-40010-00

$0.27

4

WASHER, PLATE (34L)

90201-043H7-00

$3.50

5

NUT, SPRING

90183-051A0-00

$3.81

6

PLUG (17J)

90338-10132-00

Unavailable

7

. PLATE, EPA 2 (CALIFORNIA)

5AH-2179R-40-00

Unavailable

7

. PLATE, EPA 1 (NON CALIFORNIA)

5AH-2179V-40-00

Unavailable

8

GROMMET(4FU)

90480-13567-00

$4.99

9

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

10

COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2172-K1-P4

Unavailable

10

COVER, SIDE 2 (BLACK 2)

4TV-Y2172-L1-4B

Unavailable

11

. EMBLEM (VIVID RED COCKTAIL 7)

4SV-28328-40-00

Unavailable

11

. EMBLEM (DEEP PURPLISH BLUE METALLIC C)

4SV-28328-60-00

Unavailable

12

SCREW, TRUSS TAP.

97707-40010-00

$0.27

13

WASHER, PLATE (34L)

90201-043H7-00

$3.50

14

NUT, SPRING

90183-051A0-00

$3.81

15

PLUG (17J)

90338-10132-00

Unavailable

16

GROMMET(4FU)

90480-13567-00

$4.99

17

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

18

COVER, REAR FENDER

4TV-21651-00-P6

Unavailable

18

COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC C)

4TV-21651-00-P2

Unavailable

19

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

20

EMBLEM, YAMAHA

99241-00080-00

Unavailable

20

EMBLEM, YAMAHA

99246-00080-00

Unavailable
