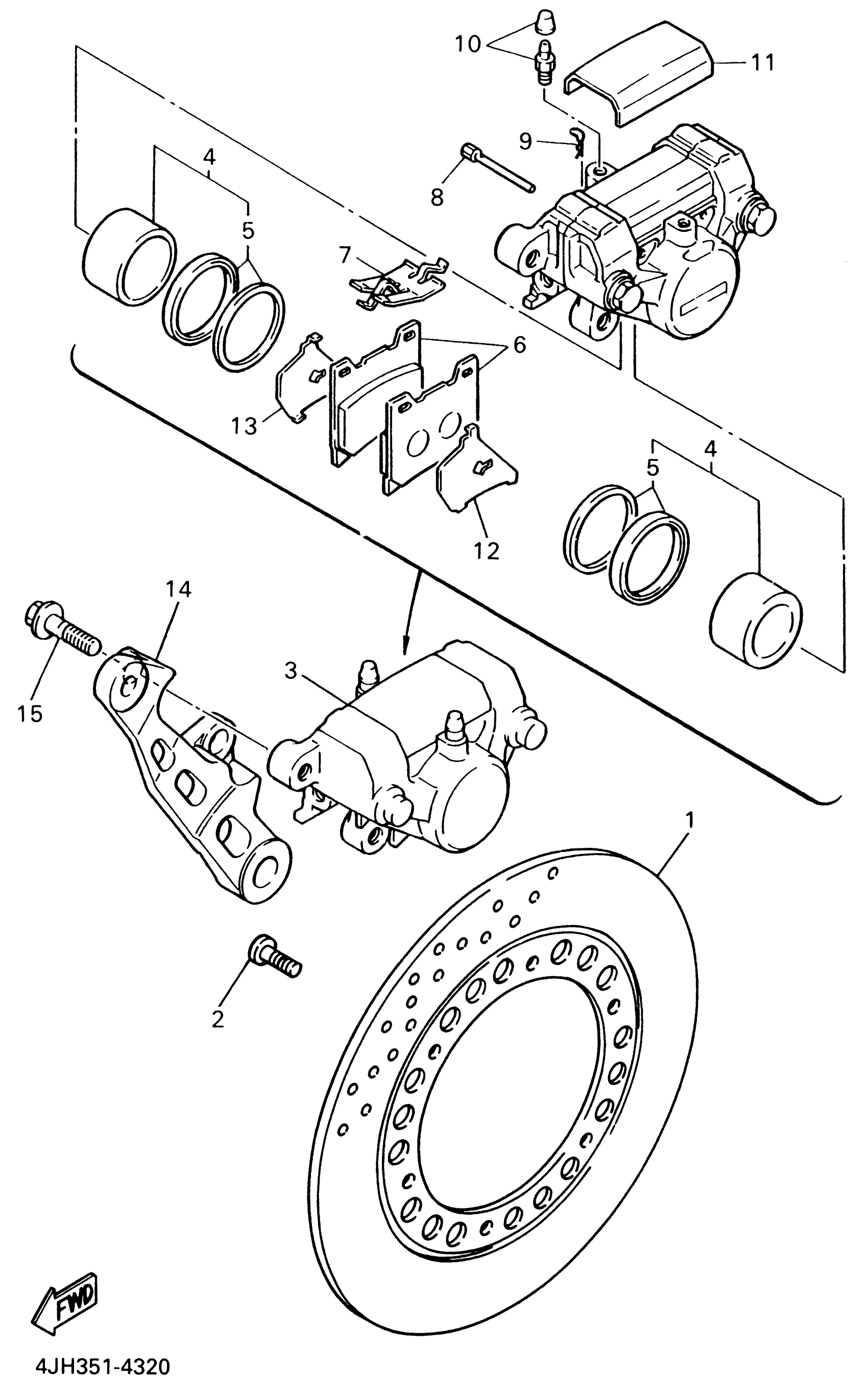

Yamaha YZF600RNC (YZF600R CA) 5AHA 2001 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4JH-2582W-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

CALIPER ASSY, REAR 2

5JD-2580W-02-00

$296.99

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

PISTON SEAL KIT

31A-W0047-00-00

$57.99

BRAKE PAD KIT

3XF-W0045-50-00

$44.99

SUPPORT, PAD

29L-25919-A0-00

Unavailable

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

51J-25836-01-00

Unavailable

SHIM, CALIPER

1FK-25827-01-00

$16.49

SHIM, CALIPER

1FK-25828-01-00

$15.49

BRACKET, CALIPER

4JH-25819-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
