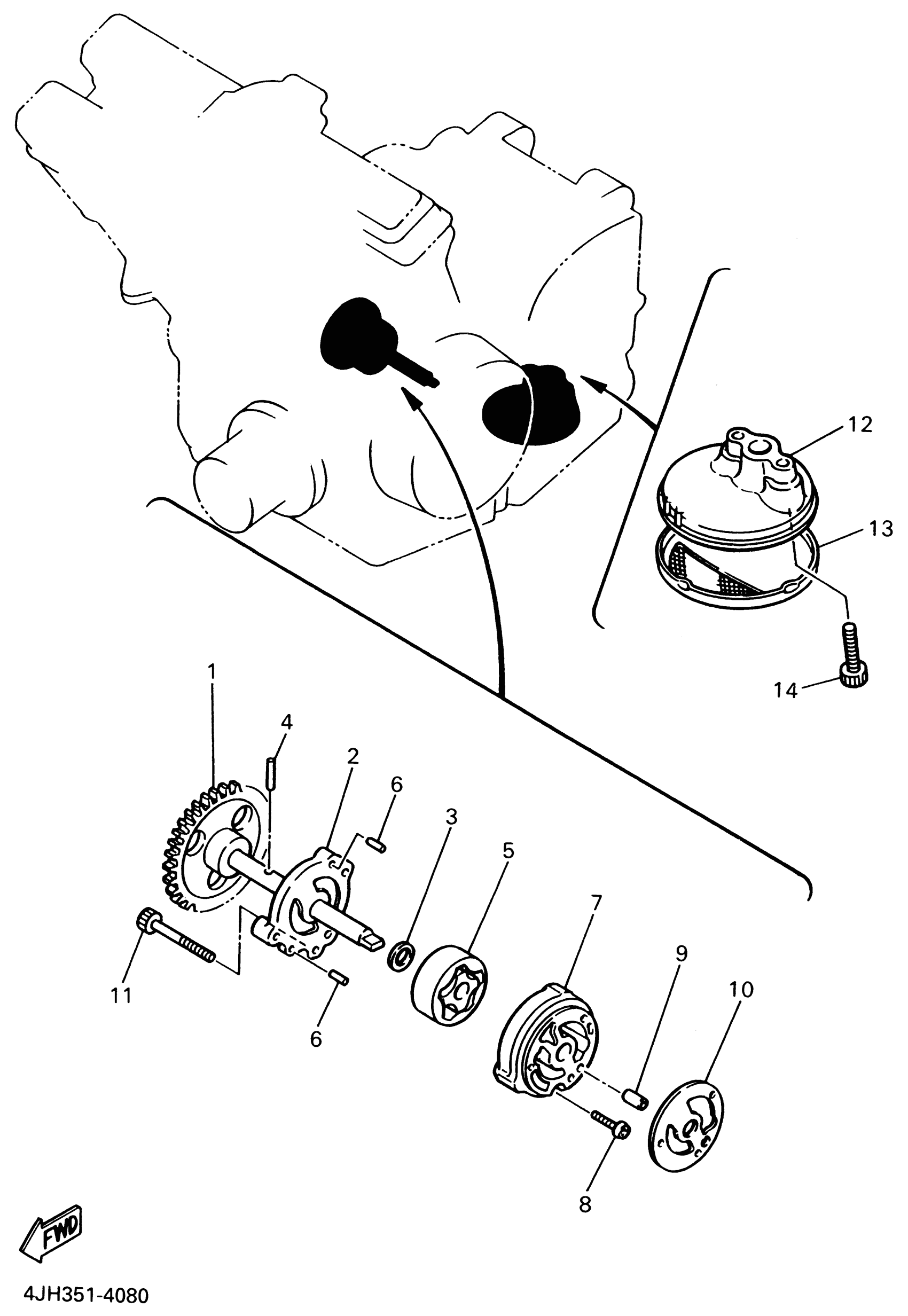

Yamaha YZF600RNC (YZF600R CA) 5AHA 2001 OIL PUMP Diagram

#

Description
Price

1

PUMP SHAFT ASSY

4JH-13330-00-00

Unavailable

2

COVER, PUMP

1WG-13316-00-00

Unavailable

3

WASHER, PLATE(1WG)

90201-113K2-00

$9.49

4

PIN,DOWEL

93603-17070-00

$4.14

5

ROTOR ASSY 1

1WG-13310-00-00

Unavailable

6

PIN, DOWEL (341)

93603-09106-00

$2.28

7

HOUSING, ROTOR

1WG-13336-00-00

Unavailable

8

SCREW, PAN

98517-06020-00

$8.49

9

PIN, DOWEL

99530-08012-00

Unavailable

10

GASKET, PUMP COVER

1WG-13329-00-00

$7.99

11

BOLT, HEXAGON SOCKET HEAD

9137-06050-00

Unavailable

12

HOUSING, STRAINER

3TJ-13412-00-00

Unavailable

13

STRAINER, OIL

4H7-13411-02-00

Unavailable

14

BOLT,SOCKET

91317-06025-00

$5.60
