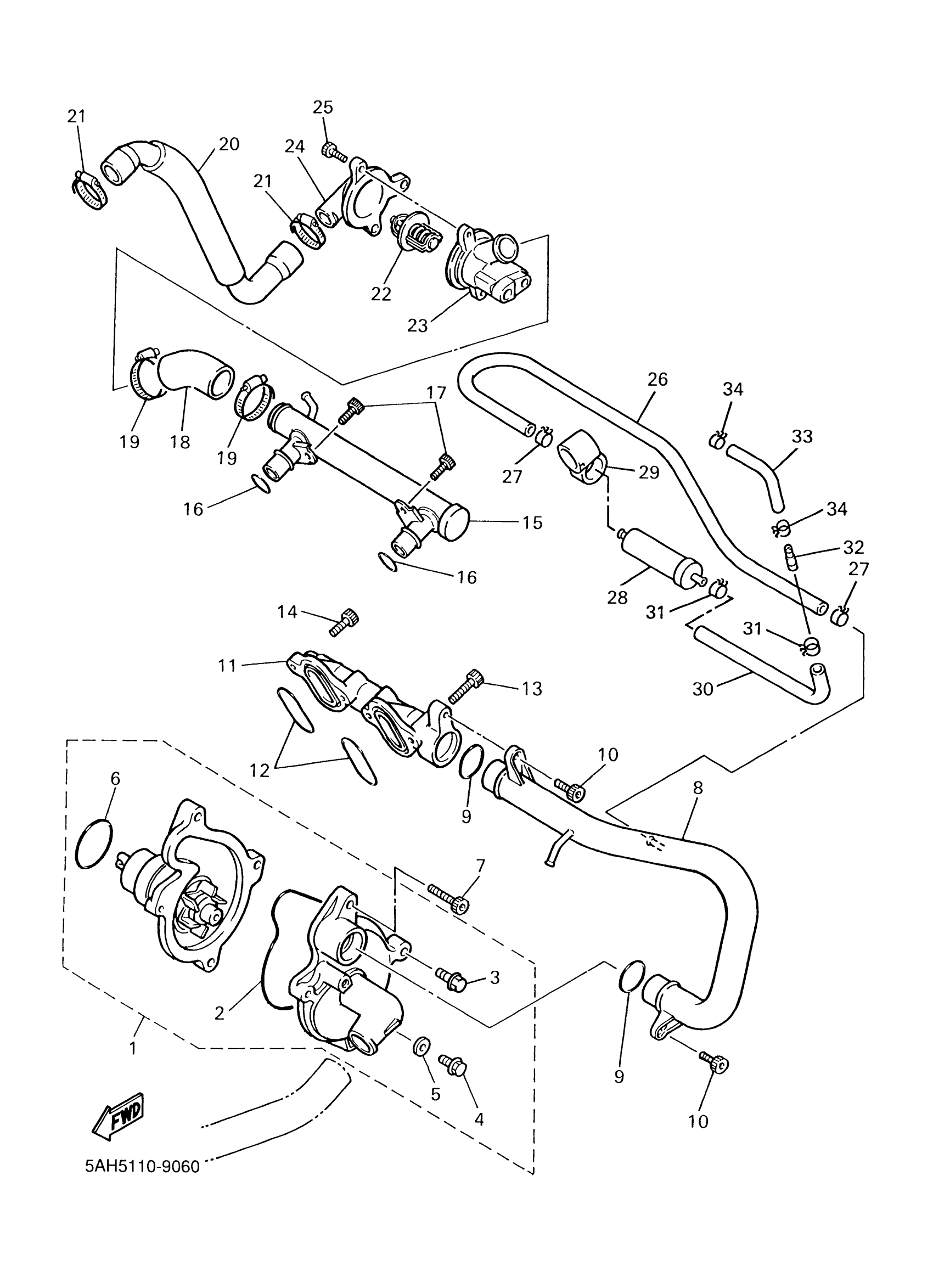

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 WATER PUMP Diagram
#
Description
Price
1
WATER PUMP ASSY (O-RING)
3TJ-Y1242-00-00
Unavailable
3
. BOLT, FLANGE
90105-066A5-00
Unavailable
5
GASKET 256113960000
90430-06014-00
Unavailable
7
BOLT,SOCKET
91317-06035-00
Unavailable
8
PIPE 1
4JH-12481-00-00
Unavailable
8
PIPE 1
4TV-12481-00-00
Unavailable
11
J0INT
1WG-12446-01-00
Unavailable
15
PIPE 2
4JH-12482-00-00
Unavailable
16
O-RING (22U)
93210-15566-00
Unavailable
18
HOSE 1
3TJ-12576-00-00
Unavailable
19
HOSE CLAMP ASSY
90450-32015-00
Unavailable
20
HOSE 2
4JH-12577-00-00
Unavailable
21
HOSE CLAMP ASSY
90450-32015-00
Unavailable
22
THERMOSTAT ASSY
4JH-12410-01-00
Unavailable
23
HOUSING, THERMOSTAT
3TJ-12417-00-00
Unavailable
24
COVER, THERMOSTAT
3TJ-12413-00-00
Unavailable
25
BOLT,SOCKET
91317-06020-00
Unavailable
26
HOSE 6
4TV-12589-00-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
THERMOSTAT
5AH-1240G-00-00
Unavailable
29
ADAPTER
4TV-12572-00-00
Unavailable
30
HOSE 2
4TV-1243E-00-00
Unavailable
31
CLIP (7K7)
90467-11044-00
Unavailable
32
JOINT, HOSE 1
4TV-12581-00-00
Unavailable
33
HOSE 7
4TV-12551-00-00
Unavailable
34
CLIP
90467-09120-00
Unavailable
