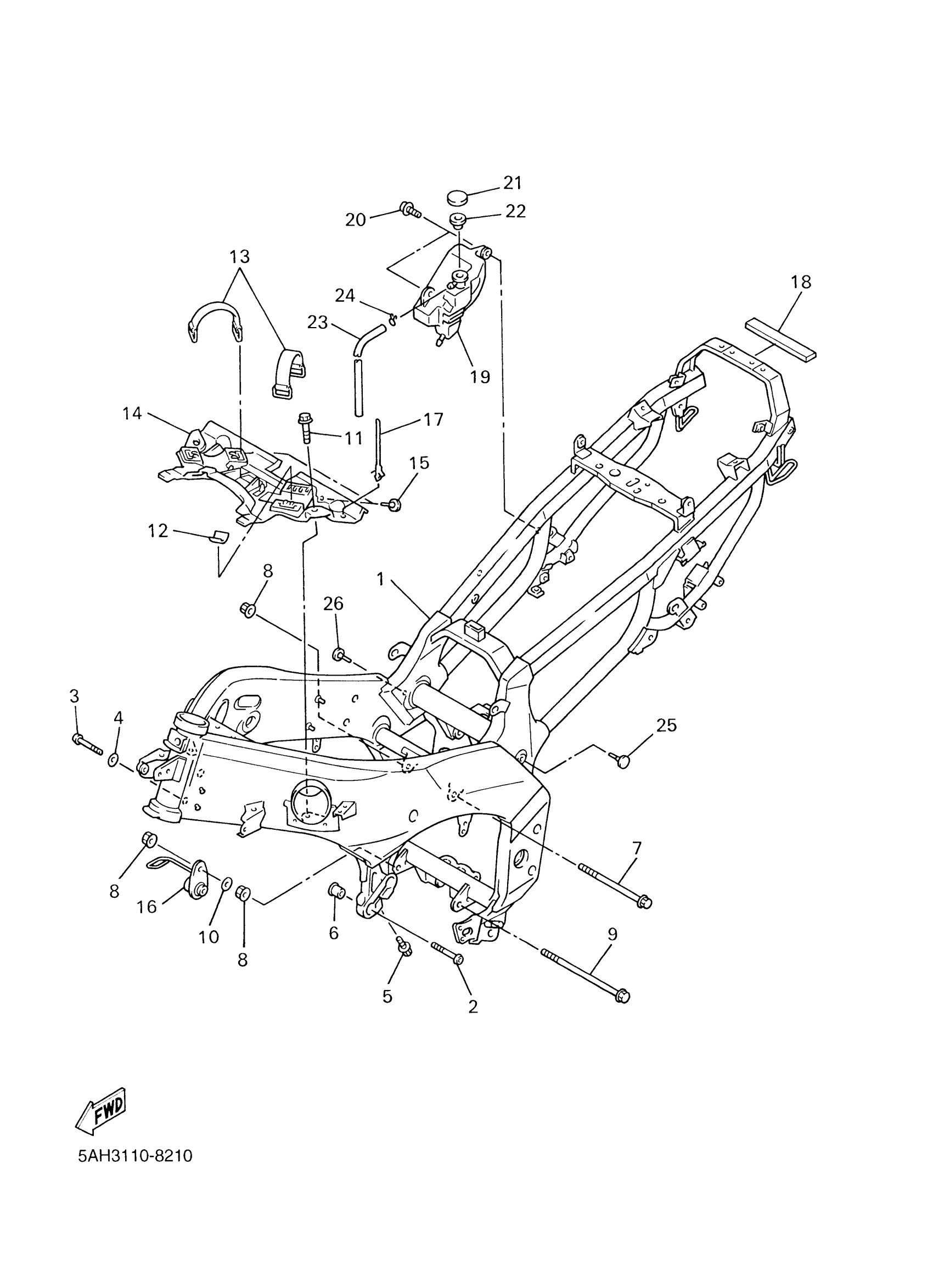

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4TV-21110-01-35

Unavailable

2

. BOLT

91314-10045-00

Unavailable

3

BOLT,SOCKET

91314-10050-00

$5.60

4

WASHER, PLATE(4TV)

90201-110T8-00

Unavailable

5

BOLT, FLANGE(4TV)

95814-10025-00

$8.49

6

COLLAR

90387-115V8-00

Unavailable

7

BOLT, WASHER BASED (5E3)

90105-10183-00

$12.49

8

NUT, FLANGE(8AB)

95707-10500-00

$3.18

9

BOLT,FLANGE

95827-10175-00

Unavailable

10

WASHER, PLATE (3L6)

90201-10774-00

$9.49

11

BOLT, WITH WASHER

90119-06242-00

$7.49

12

DAMPER 1

31A-28217-00-00

$3.22

13

BAND

36X-2811G-00-00

Unavailable

14

COVER 2

4TV-2117M-00-00

Unavailable

15

DAMPER 2

36Y-21639-00-00

Unavailable

16

STAY, MUFFLER 2

4JH-21446-00-00

Unavailable

17

CLAMP(2TV)

90464-10112-00

Unavailable

18

DAMPER 2

4TV-21486-00-00

Unavailable

19

TANK, RECOVERY

4FM-21871-02-00

Unavailable

20

SCREW, W/WASHER (4L0)

90159-06060-00

Unavailable

21

CAP

1AA-21815-00-00

Unavailable

22

GASKET

1AA-21874-00-00

Unavailable

23

HOSE (L1500)

90445-084J0-00

Unavailable

24

CLIP 101235600

90467-08003-00

Unavailable

25

DAMPER 2

36Y-21639-00-00

Unavailable

26

DAMPER 2

36Y-21639-00-00

Unavailable
