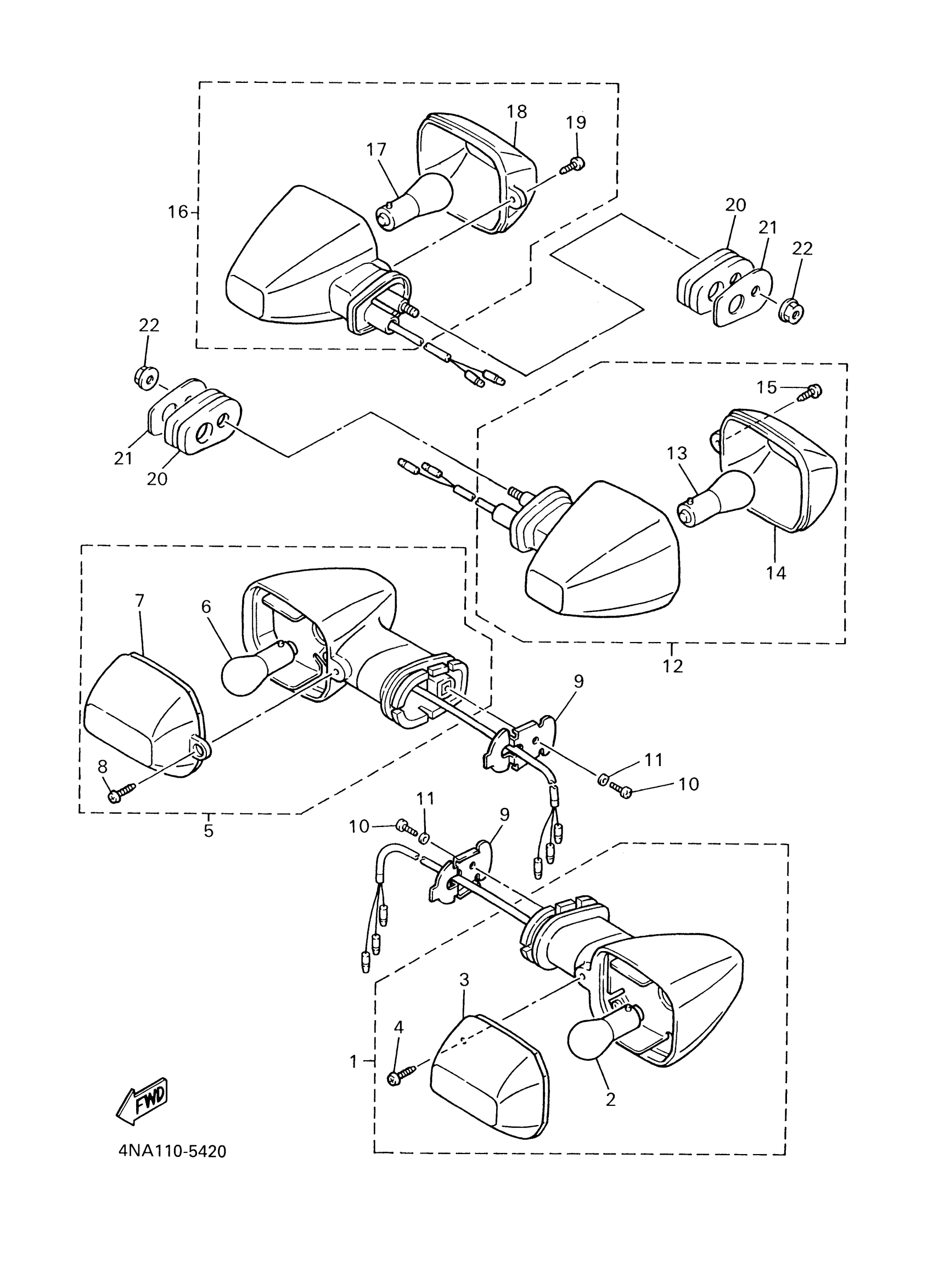

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

4JH-83310-11-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, FLASHER

4JH-83332-10-00

Unavailable

4

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.23

5

FRONT FLASHER LIGHT ASSY 2

4JH-83320-11-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

7

LENS, FLASHER 2

4JH-83342-10-00

$18.20

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.23

9

STAY, FLASHER 1

4JH-83318-00-00

$7.40

10

SCREW, PAN HEAD(JG1)

98507-04008-00

$1.35

11

WASHER(JF2)

92907-04600-00

$1.15

12

REAR FLASHER LIGHT ASSY 1

4JH-83330-20-00

Unavailable

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

LENS, FLASHER

4JH-83332-10-00

Unavailable

15

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.23

16

FLASHER LIGHT ASSY 2

4JH-83340-20-00

Unavailable

17

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

18

LENS, FLASHER 2

4JH-83342-10-00

$18.20

19

SCREW, PAN TAP.2 SLIT

97707-40610-00

$6.23

20

PLUG, BLIND

4FM-83345-00-00

Unavailable

21

STAY, FLASHER 2

4FM-83369-00-00

Unavailable

22

NUT, FLANGE(4MV)

95707-06500-00

Unavailable
