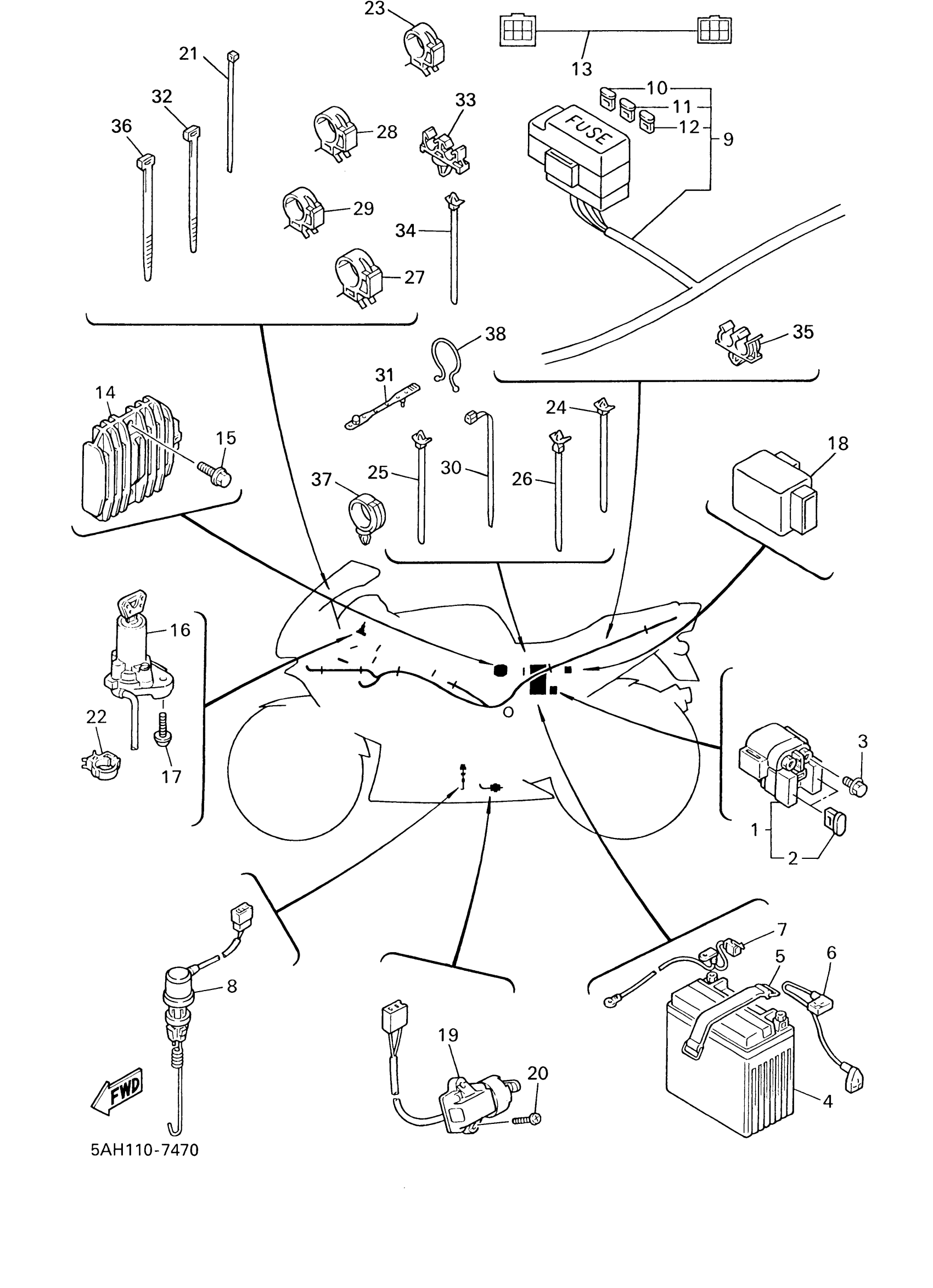

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-003)

4DN-81940-12-00

$149.99

2

FUSE (12V 30A)

1AE-82151-00-00

$7.99

3

BOLT, SMALL FLANGE

95027-06008-00

$7.99

4

YTX12BS YUASA BATTERY - SA

YTX-12BS0-00-00

Unavailable

5

BAND, BATTERY

2T4-82131-00-00

$8.99

6

WIRE,PLUS LEAD

4NX-82115-00-00

Unavailable

7

WIRE, MINUS LEAD

4JH-82116-00-00

Unavailable

8

STOP SWITCH ASSY

1KT-82530-03-00

Unavailable

9

WIRE HARNESS ASSY

4WF-82590-00-00

$357.99

10

FUSE (20A)

2GV-82151-00-00

$5.49

11

FUSE

2KW-82151-00-00

$6.99

12

FUSE (12V 15A)

36Y-82151-00-00

$4.94

13

WIRE, SUB LEAD

4TV-82509-00-00

Unavailable

14

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

$225.99

15

BOLT, FLANGE

95817-06020-00

$3.81

16

MAIN SWITCH STEERING LOCK

4NA-82501-02-00

Unavailable

17

BOLT

90109-08196-00

Unavailable

18

RELAY ASSY

4TV-81950-01-00

Unavailable

19

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

20

SCREW, PAN HEAD

98507-05014-00

Unavailable

21

CLAMP(4FM)

90464-15195-00

Unavailable

22

CLAMP(4HM)

90464-15192-00

Unavailable

23

CLAMP(4GY)

90464-10190-00

Unavailable

24

CLAMP(2TV)

90464-10112-00

Unavailable

25

CLAMP(2TV)

90464-10112-00

Unavailable

26

CLAMP(2TV)

90464-10112-00

Unavailable

27

CLAMP(4KM)

90464-25217-00

Unavailable

28

CLAMP(4HM)

90464-15192-00

Unavailable

29

CLAMP(4GY)

90464-10190-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable

31

CLAMP

90464-07121-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

CLAMP(4JH)

90464-08211-00

Unavailable

34

CLAMP(2TV)

90464-10112-00

Unavailable

35

CLAMP(87A)

90464-08126-00

Unavailable

36

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

37

CLAMP(4AP)

90464-20181-00

Unavailable

38

CLAMP (3Y2)

90464-16039-00

Unavailable
