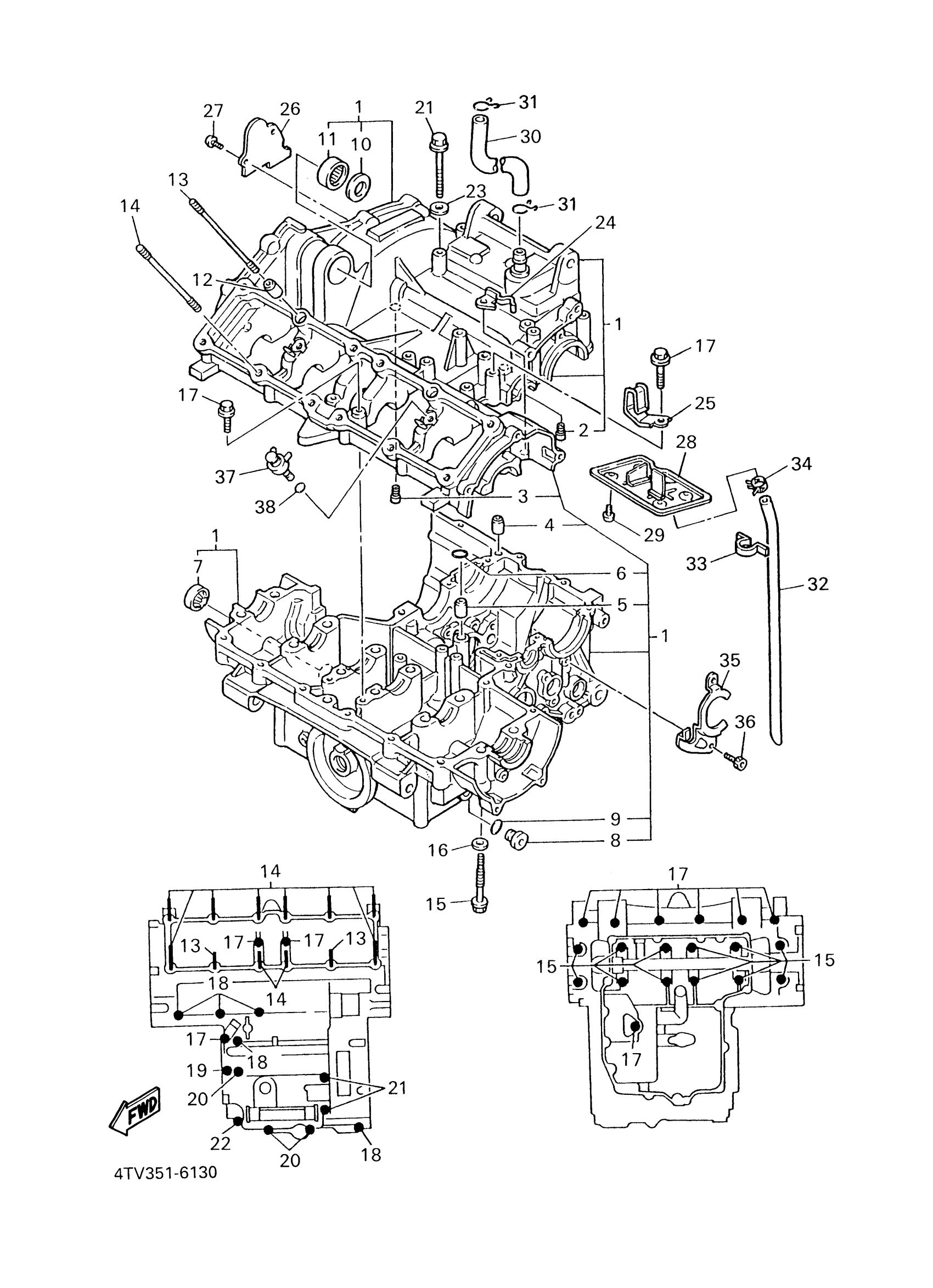

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4JH-15100-03-00

Unavailable

2

NOZZLE 1

11H-15138-00-00

Unavailable

3

NOZZLE 1

26H-15138-00-00

$9.99

4

PIN, DOWEL

99530-12016-00

$4.89

5

. NOZZLE 1

4JH-15138-00-00

Unavailable

6

O-RING (256)

93210-12152-00

$7.49

7

GAUGE, LEVEL

2H7-15361-00-00

$97.99

8

PLUG

36Y-15189-01-00

Unavailable

9

O-RING(1L9)

93210-16325-00

$7.49

10

WASHER, PLATE(1WG)

90201-237K5-00

$2.34

11

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

12

PIN, DOWEL(4XL)

93612-16254-00

$5.60

13

BOLT, STUD(4JH)

90116-09583-00

$8.49

14

BOLT, STUD(4JH)

90116-09584-00

$16.99

15

BOLT, WASHER BASED(1WG)

90105-08630-00

$7.49

16

WASHER, PLATE(1WG)

90201-087K3-00

Unavailable

17

BOLT, FLANGE

95817-06040-00

Unavailable

18

BOLT, FLANGE

95817-06050-00

Unavailable

19

BOLT, FLANGE

95817-06070-00

Unavailable

20

BOLT, FLANGE

95817-06080-00

Unavailable

21

BOLT, FLANGE

95817-06090-00

Unavailable

22

BOLT, FLANGE(JN5)

95817-08070-00

Unavailable

23

GASKET (4V2)

90430-06166-00

Unavailable

24

CLAMP

90465-10307-00

Unavailable

25

CLAMP

90465-10308-00

Unavailable

26

PLATE, BREATHER

4JH-11165-00-00

Unavailable

27

SCREW, PAN

98517-06012-00

Unavailable

28

PLATE, BREATHER 2

5RT-11145-00-00

Unavailable

29

SCREW, PAN

98517-06012-00

Unavailable

30

PIPE, BREATHER 1

1WG-11166-00-00

Unavailable

31

CLIP (371)

90467-14015-00

Unavailable

32

HOSE (L370)

90445-112E1-00

Unavailable

33

CLAMP(1HX)

90465-06289-00

Unavailable

34

CLIP

90467-10038-00

Unavailable

35

PLATE, BEARING COVER

4JH-15381-00-00

Unavailable

36

BOLT,SOCKET

91317-06012-00

Unavailable

37

NOZZLE ASSY

5RT-15105-00-00

Unavailable

38

O-RING (26H)

93210-06632-00

Unavailable
