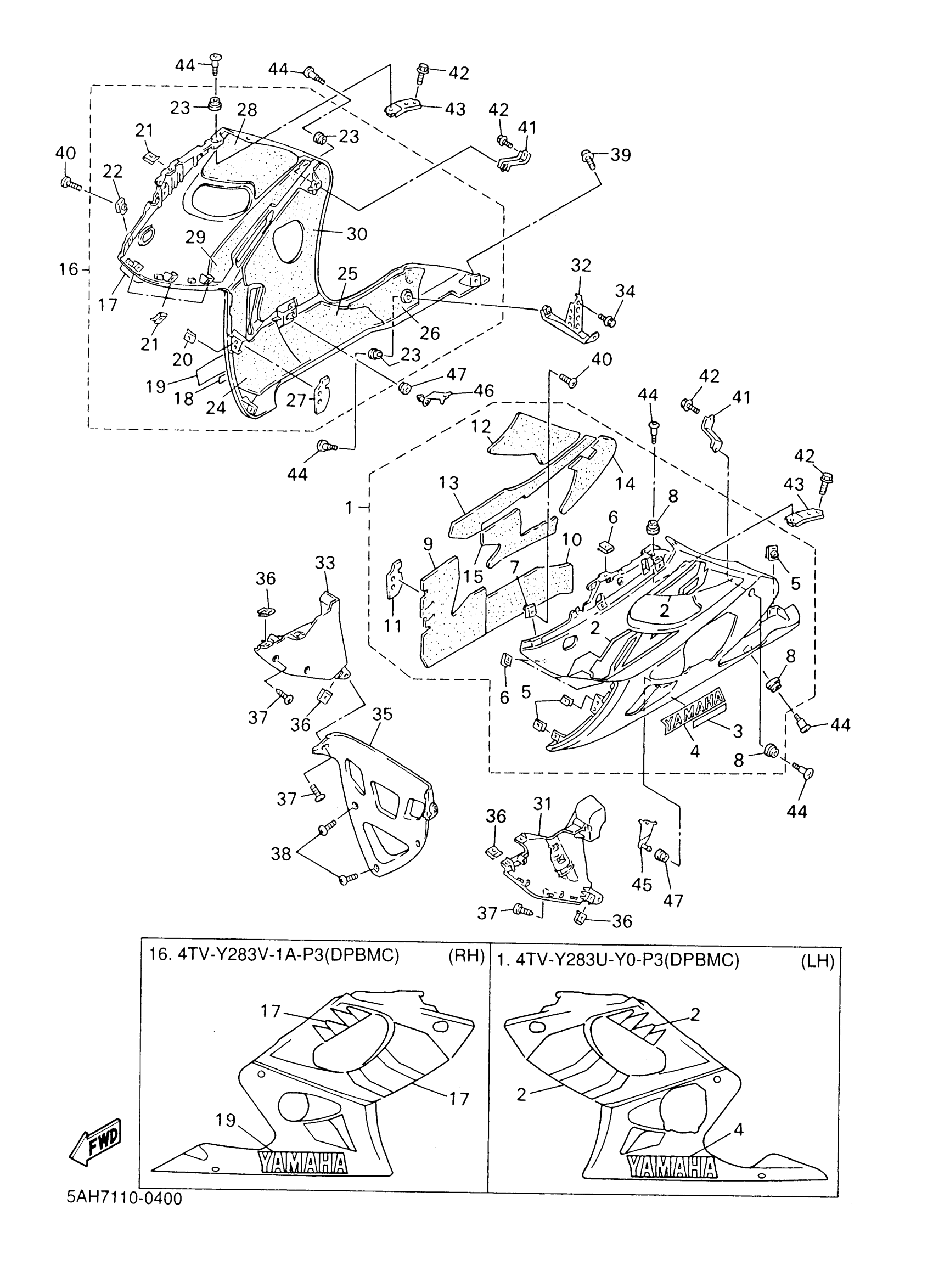

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 COWLING 2 Diagram
#
1
PANEL ASSY 1
4TV-W283U-1A-9X
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-Y283U-Y0-P3
Unavailable
2
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5AH-28301-30-00
Unavailable
2
. GRAPHICSET, LOWER COVER 3 (BLACK 2)
5AH-28304-40-00
Unavailable
3
. EMBLEM
4SV-28328-50-00
Unavailable
4
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
5
NUT, SPRING(3YX)
90183-05074-00
Unavailable
9
SEAT 3
4TV-2848L-03-00
Unavailable
10
SEAT 5
4TV-2848N-02-00
Unavailable
11
SEAT 7
4TV-2848R-00-00
Unavailable
12
DAMPER 2
4TV-28227-00-00
Unavailable
13
DAMPER
4TV-2834F-00-00
Unavailable
14
. DAMPER 5
4TV-2837J-00-00
Unavailable
15
DAMPER 6
4TV-2837K-00-00
Unavailable
16
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-Y283V-1A-P3
Unavailable
16
PANEL ASSEMBLY 2
4TV-Y283V-1B-9X
Unavailable
17
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5AH-28303-30-00
Unavailable
17
. UNDER COVER GRAPHIC SET, 4 (BLACK 2)
5AH-28305-40-00
Unavailable
18
. EMBLEM
4SV-28328-50-00
Unavailable
19
. EMBLEM, YAMAHA (BLACK 2)
99247-00320-00
Unavailable
20
NUT, SPRING(3YX)
90183-05074-00
Unavailable
24
. SEAT 2
4TV-2848K-03-00
Unavailable
25
. SEAT 4
4TV-2848M-02-00
Unavailable
26
. SEAT
4TV-2848H-00-00
Unavailable
27
. SEAT 6
4TV-2848P-00-00
Unavailable
28
. DAMPER 1
4TV-28217-00-00
Unavailable
29
DAMPER
4TV-2834E-00-00
Unavailable
30
. DAMPER
4TV-28371-00-00
Unavailable
31
BODY, FRONT LOWER
4TV-2835J-00-P8
Unavailable
31
BODY, FRONT LOWER 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835J-00-P3
Unavailable
32
STAY, SUPPORT 1
4JH-2831T-00-00
Unavailable
33
BODY, FRONT LOWER
4TV-2835K-00-P8
Unavailable
33
BODY, FRONT UNDER 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835K-00-P3
Unavailable
34
BOLT, FLANGE
95817-06010-00
Unavailable
35
COVER, LOWER
4TV-28385-00-P3
Unavailable
35
COVER, LOWER (MAT BLACK 2) (BLACK 2)
4TV-28385-00-P7
Unavailable
37
SCREW, TAPPING(4KY)
97780-50016-00
Unavailable
38
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
39
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
40
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
41
STAY, SIDE 1
4JH-2832U-00-00
Unavailable
42
BOLT, FLANGE
95817-06010-00
Unavailable
43
BRACKET 5
4TV-2836H-00-00
Unavailable
44
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
45
BRACKET 3
4JH-2836F-00-00
Unavailable
46
BRACKET 4
4JH-2836G-00-00
Unavailable
47
GROMMET(3UL)
90480-01531-00
Unavailable
