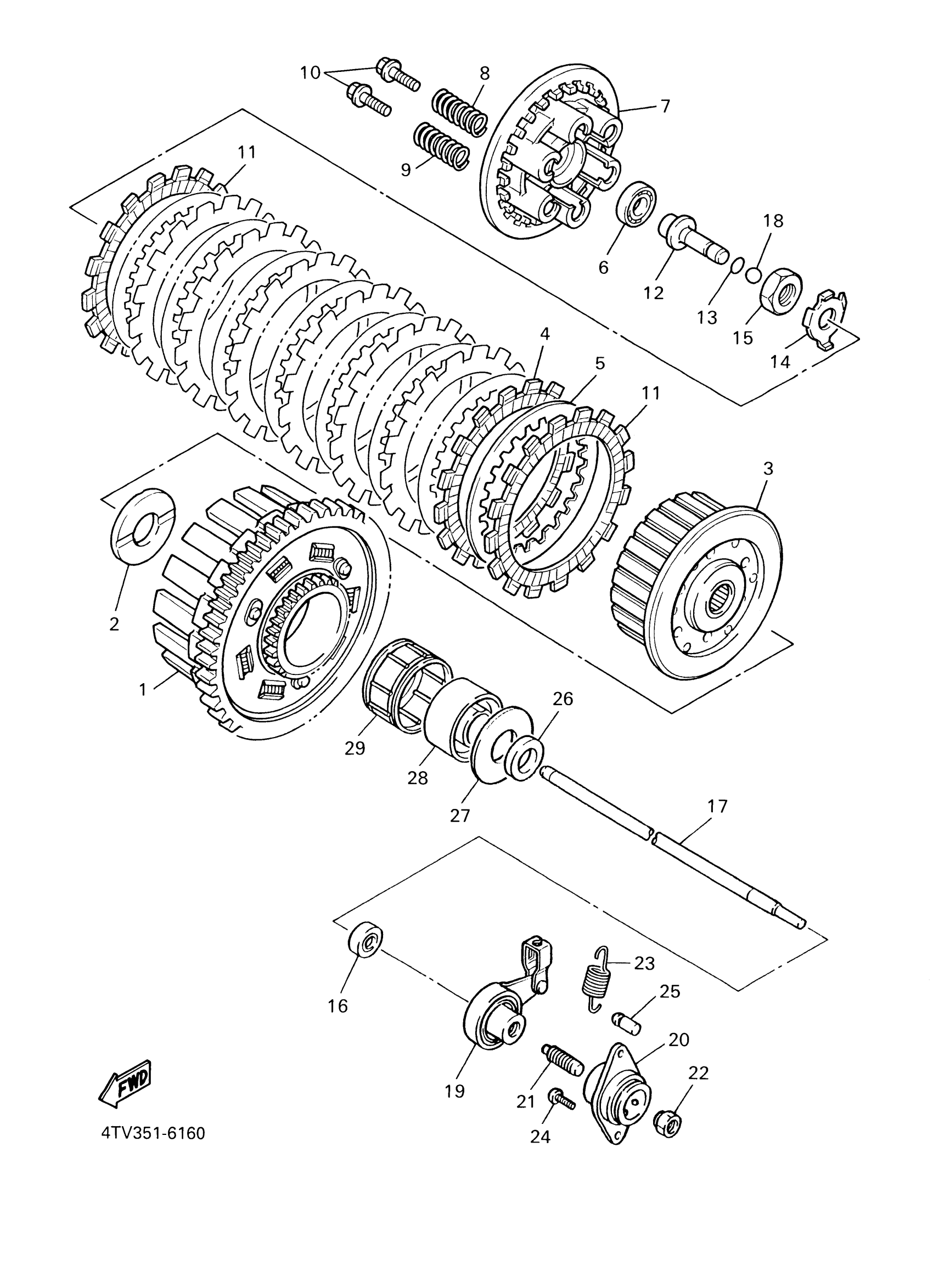

Yamaha YZF600RMC (YZF600R CA) 5AH8 2000 CLUTCH Diagram

PRIMARY DRIVEN GEAR COMP.

4JH-16150-00-00

Unavailable

PLATE, THRUST 1

1WG-16154-00-00

Unavailable

BOSS, CLUTCH

4JH-16371-01-00

Unavailable

PLATE, FRICTION

4JH-16321-00-00

Unavailable

PLATE, CLUTCH 1

1LX-16324-00-00

$23.99

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

PLATE, PRESSURE 1

4JH-16351-00-00

Unavailable

SPRING, COMPRESSION (509)

90501-23346-00

$14.99

SPRING, COMPRESSION(4JH)

90501-224J9-00

$11.49

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

PLATE, FRICTION

3JD-16321-00-00

Unavailable

ROD, PUSH 1

4JH-16356-00-00

Unavailable

O-RING (2H7)

93210-48364-00

$8.49

WASHER, LOCK (33M)

90215-18225-00

$14.99

NUT, HEXAGON (2H7)

90170-18221-00

$14.99

SEAL, PUSH ROD (8.0X21X5.5)

93109-08058-00

Unavailable

ROD, PUSH 2

4JH-16357-01-00

Unavailable

BALL

93505-16006-00

Unavailable

PUSH LEVER ASSY

4JH-16340-00-00

Unavailable

BALL SCREW HOUSING ASSY

1WG-16304-00-00

Unavailable

BOLT SET 256163430100

90113-08021-00

Unavailable

NUT

90179-08179-00

Unavailable

SPRING, TENSION(4JH)

90506-11488-00

Unavailable

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

HOOK, SPRING

132-16346-00-00

Unavailable

COLLAR(1WG)

90387-212R3-00

Unavailable

PLATE, THRUST 2

1WG-16164-00-00

Unavailable

SPACER 1

1WG-16181-00-00

Unavailable

BEARING, CYLINDRICAL(1WG)

93310-345R8-00

Unavailable
