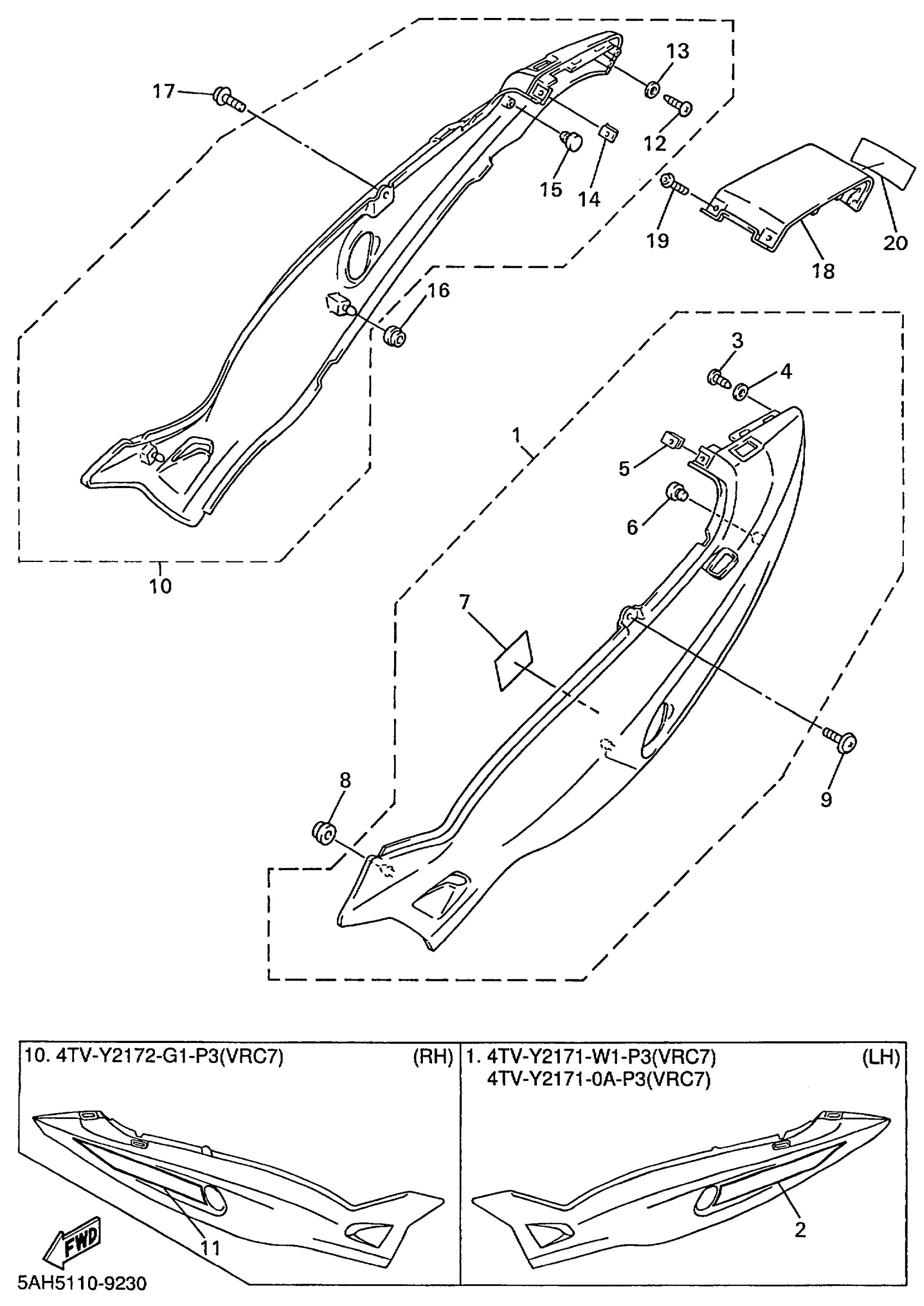

Yamaha YZF600RLC (YZF600R CA) 1999 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1 (VIVID RED COCKTAIL 7)

4TV-Y2171-0A-P3

Unavailable

1

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2171-T1-2X

Unavailable

1

COVER, SIDE 1 (VIVID RED COCKTAIL 7)

4TV-Y2171-W1-P3

Unavailable

1

COVER, SIDE 1 (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2171-Y1-2X

Unavailable

2

. GRAPHIC 1 (VIVID RED COCKTAIL 7)

4TV-2173E-30-00

Unavailable

3

SCREW, TRUSS TAP.

97707-40010-00

$0.27

4

WASHER, PLATE

90201-042E0-00

$7.49

5

NUT, SPRING

90183-051A0-00

$3.81

6

PLUG (17J)

90338-10132-00

Unavailable

7

. PLATE, EPA 2 (CALIFORNIA)

5AH-2179R-20-00

Unavailable

7

. PLATE, EPA 1 (NON CALIFORNIA)

5AH-2179V-20-00

Unavailable

8

GROMMET(4FU)

90480-13567-00

$4.99

9

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

10

COVER, SIDE 2 (PURPLISH WHITE SOLID 1) (DEEP PURPLISH BLUE METALLIC C)

4TV-Y2172-71-2X

Unavailable

10

COVER, SIDE 2 (VIVID RED COCKTAIL 7)

4TV-Y2172-G1-P3

Unavailable

11

. GRAPHIC 2 (VIVID RED COCKTAIL 7)

4TV-2173F-30-00

Unavailable

12

SCREW, TRUSS TAP.

97707-40010-00

$0.27

13

WASHER, PLATE

90201-042E0-00

$7.49

14

NUT, SPRING

90183-051A0-00

$3.81

15

PLUG (17J)

90338-10132-00

Unavailable

16

GROMMET(4FU)

90480-13567-00

$4.99

17

SCREW, W/WASHER (4L0)

90159-06060-00

$8.49

18

COVER, REAR FENDER (DEEP PURPLISH BLUE METALLIC C)

4TV-21651-00-P2

Unavailable

18

COVER, REAR FENDER (VIVID RED COCKTAIL 7)

4TV-21651-00-P4

Unavailable

19

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

20

EMBLEM, YAMAHA

99246-00080-00

Unavailable
