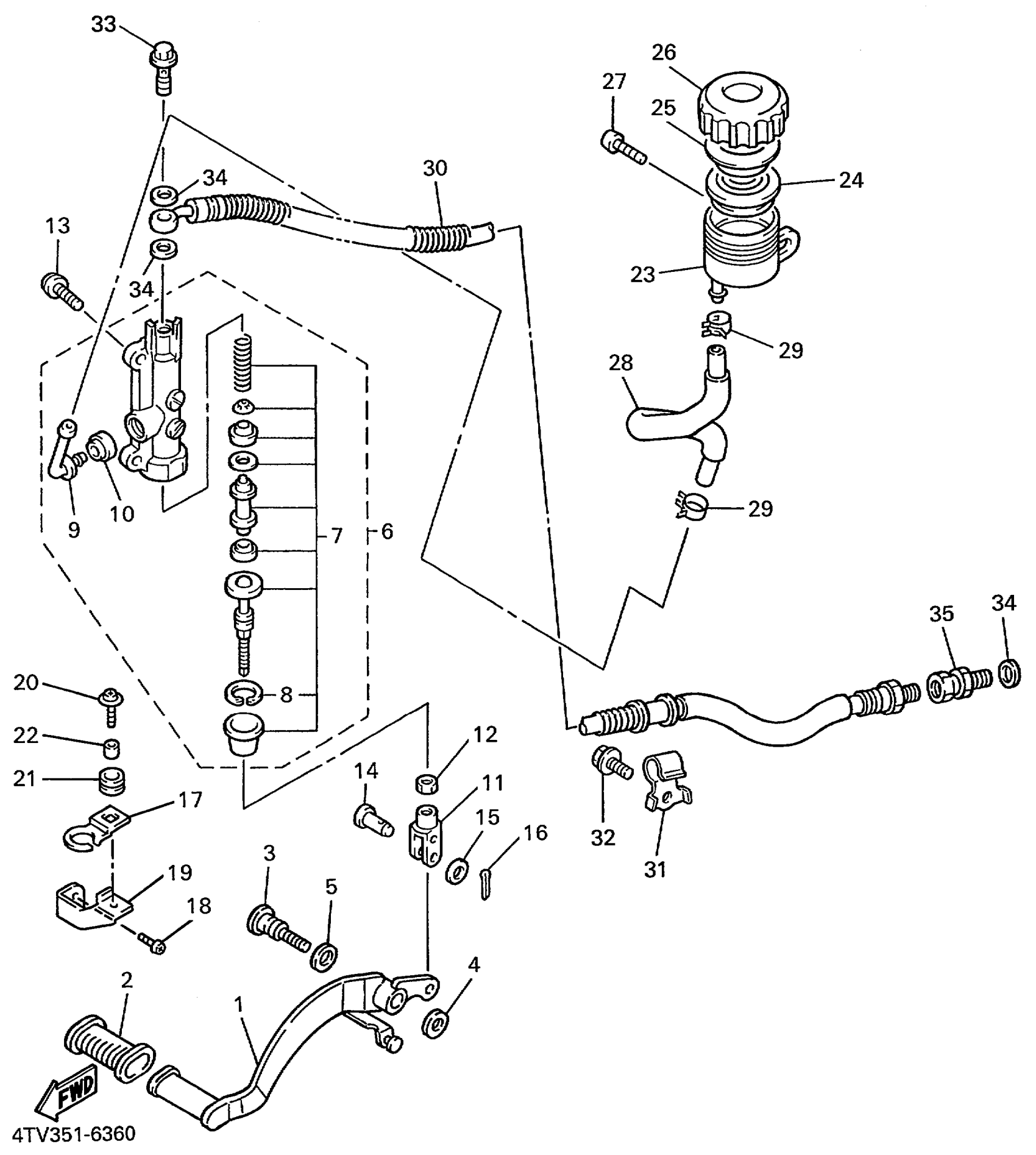

Yamaha YZF600RLC (YZF600R CA) 1999 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4JH-27211-10-00

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

SHAFT

21C-27261-01-00

Unavailable

4

WASHER PLATE (3L6)

90201-08759-00

$3.23

5

WASHER, WAVE(6T4)

90206-14086-00

$8.49

6

RR. MASTER CYLINDER ASSY.

4BH-2583V-00-00

Unavailable

7

CYLINDER KIT, MASTER

4BH-W0042-50-00

Unavailable

8

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

9

JOINT

4BP-2582A-00-00

$17.49

10

O-RING

4BP-2585F-01-00

Unavailable

11

JOINT

47X-27222-00-00

Unavailable

12

NUT, HEXAGON SMALL

95317-08700-00

$9.49

13

BOLT, BUTTON

92014-08020-00

$8.49

14

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

PIN, COTTER (648)

91490-20015-00

Unavailable

17

STAY, STOP SWITCH

4SV-2144G-00-00

Unavailable

18

SCREW, PAN

98517-06008-00

Unavailable

19

BRACKET, STOP SWITCH

4SV-21441-00-00

Unavailable

20

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

21

GROMMET(4SV)

90480-12607-00

Unavailable

22

COLLAR 8121444900

90387-06023-00

Unavailable

23

TANK, RESERVOIR

31A-25894-01-00

Unavailable

24

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

25

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

26

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

27

SCREW, WITH WASHER (36X)

90159-06085-00

Unavailable

28

HOSE, RESERVOIR

4JH-25895-00-00

Unavailable

29

CLIP (5K4)

90467-14057-00

Unavailable

30

HOSE, BRAKE

4JH-25874-01-00

Unavailable

31

CLAMP 1

90461-08031-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

BOLT, UNION(3GM)

90401-10159-00

Unavailable

34

WASHER, PLATE(481)

90201-10118-00

Unavailable

35

JOINT

3LC-25885-00-00

Unavailable
