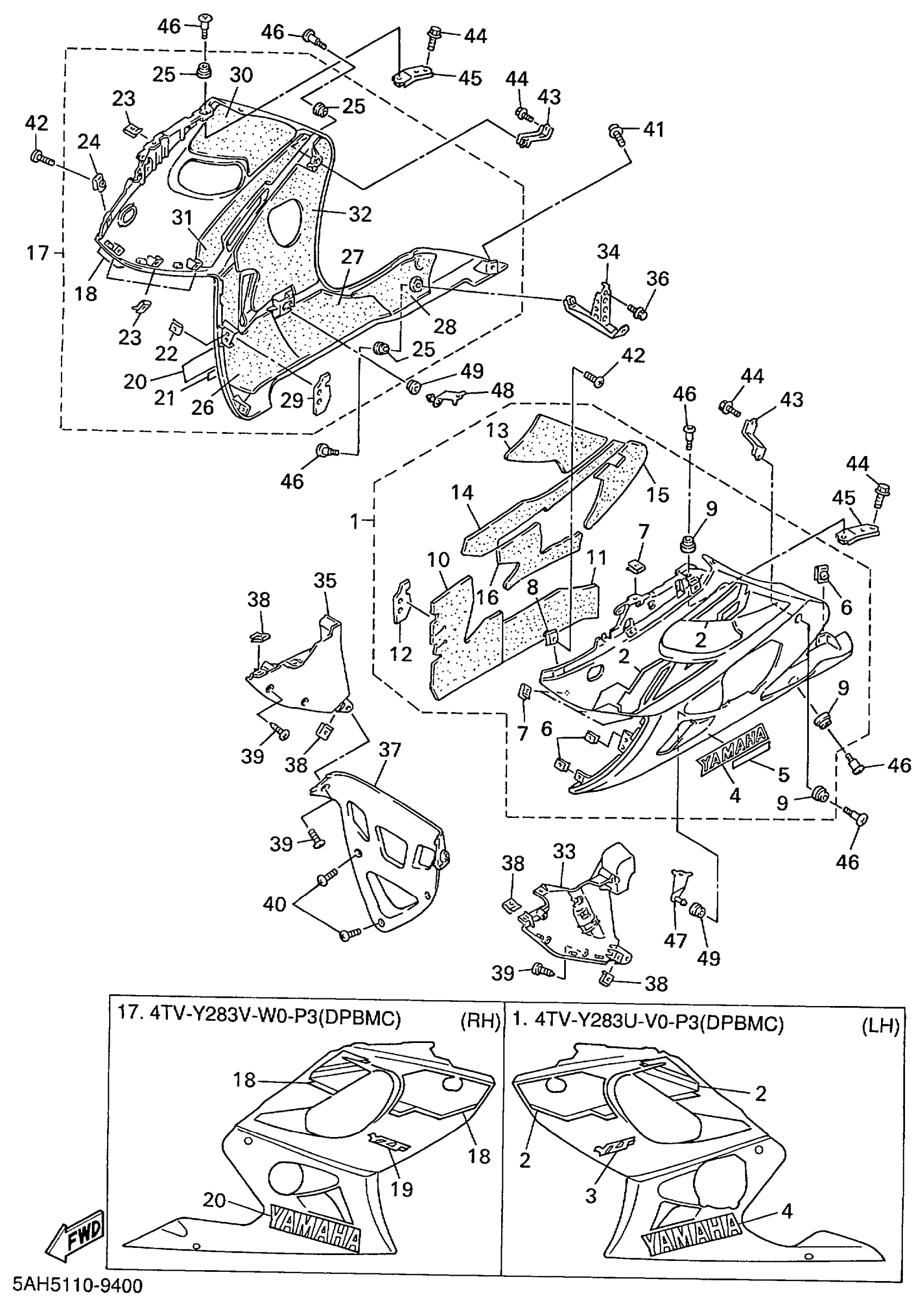

Yamaha YZF600RLC (YZF600R CA) 1999 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4TV-Y283U-V0-P3
Unavailable
1
PANEL ASSEMBLY 1
4TV-Y283U-X0-P4
Unavailable
2
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5AH-28301-20-00
Unavailable
2
. GRAPHICSET, LOWER COVER 3 (VIVID RED COCKTAIL 7)
5AH-28304-30-00
Unavailable
3
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
5AH-28391-00-00
Unavailable
4
EMBLEM, YAMAHA
99246-00320-00
Unavailable
5
. EMBLEM (VIVID RED COCKTAIL 7)
4SV-28328-40-00
Unavailable
6
NUT, SPRING(3YX)
90183-05074-00
Unavailable
10
SEAT 3
4TV-2848L-03-00
Unavailable
11
SEAT 5
4TV-2848N-02-00
Unavailable
12
SEAT 7
4TV-2848R-00-00
Unavailable
13
DAMPER 2
4TV-28227-00-00
Unavailable
14
DAMPER
4TV-2834F-00-00
Unavailable
15
. DAMPER 5
4TV-2837J-00-00
Unavailable
16
DAMPER 6
4TV-2837K-00-00
Unavailable
17
PANEL ASSEMBLY 2
4TV-W283V-W0-P3
Unavailable
17
PANEL ASSEMBLY 2
4TV-Y283V-Y0-P4
Unavailable
18
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5AH-28303-20-00
Unavailable
18
. UNDER COVER GRAPHIC SET, 4 (VIVID RED COCKTAIL 7)
5AH-28305-30-00
Unavailable
19
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
5AH-28391-00-00
Unavailable
20
EMBLEM, YAMAHA
99246-00320-00
Unavailable
21
. EMBLEM (VIVID RED COCKTAIL 7)
4SV-28328-40-00
Unavailable
22
NUT, SPRING(3YX)
90183-05074-00
Unavailable
26
. SEAT 2
4TV-2848K-03-00
Unavailable
27
. SEAT 4
4TV-2848M-02-00
Unavailable
28
. SEAT
4TV-2848H-00-00
Unavailable
29
. SEAT 6
4TV-2848P-00-00
Unavailable
30
. DAMPER 1
4TV-28217-00-00
Unavailable
31
DAMPER
4TV-2834E-00-00
Unavailable
32
. DAMPER
4TV-28371-00-00
Unavailable
33
BODY, FRONT LOWER 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835J-00-P3
Unavailable
33
BODY, FRONT LOWER 1 (VIVID RED COCKTAIL 7)
4TV-2835J-00-P4
Unavailable
34
STAY, SUPPORT 1
4JH-2831T-00-00
Unavailable
35
BODY, FRONT UNDER 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835K-00-P3
Unavailable
35
BODY, FRONT LOWER 2 (VIVID RED COCKTAIL 7)
4TV-2835K-00-P4
Unavailable
36
BOLT, FLANGE
95817-06010-00
Unavailable
37
COVER, LOWER
4TV-28385-00-P3
Unavailable
37
COVER, LOWER (VIVID RED COCKTAIL 7)
4TV-28385-00-P8
Unavailable
39
SCREW, TAPPING(4KY)
97780-50016-00
Unavailable
40
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
41
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
42
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
43
STAY, SIDE 1
4JH-2832U-00-00
Unavailable
44
BOLT, FLANGE
95817-06010-00
Unavailable
45
BRACKET 5
4TV-2836H-00-00
Unavailable
46
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
47
BRACKET 3
4JH-2836F-00-00
Unavailable
48
BRACKET 4
4JH-2836G-00-00
Unavailable
49
GROMMET(3UL)
90480-01531-00
Unavailable
