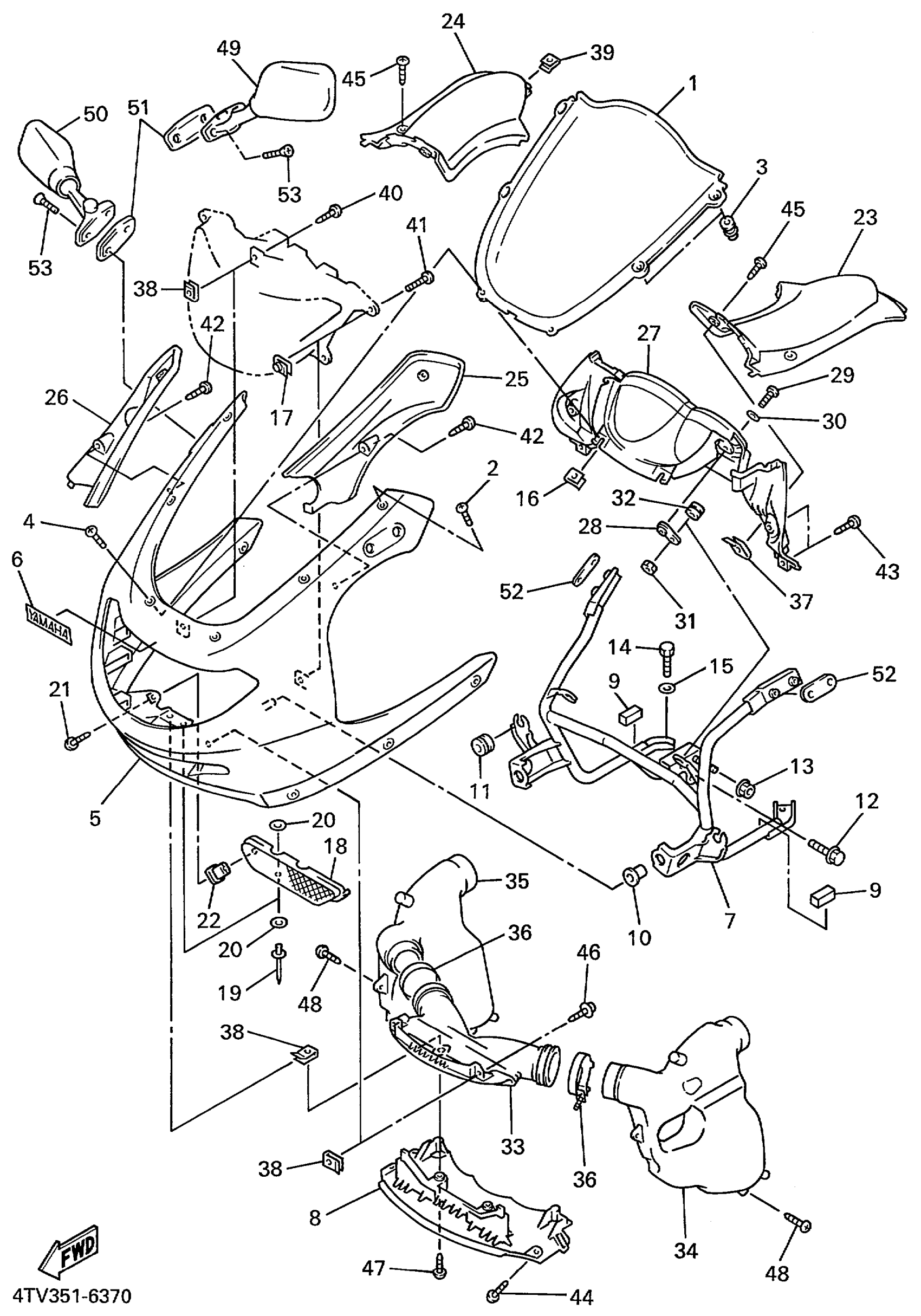

Yamaha YZF600RLC (YZF600R CA) 1999 COWLING 1 Diagram
#
1
WINDSHIELD
4TV-28381-01-00
Unavailable
5
BODY, FRONT UPPER 1 (VIVID RED COCKTAIL 7)
4TV-2835G-00-P4
Unavailable
7
STAY 1
4TV-28356-00-00
Unavailable
8
BODY, FRONT UPPER 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835H-00-P3
Unavailable
8
BODY, FRONT UPPER 2 (VIVID RED COCKTAIL 7)
4TV-2835H-00-P4
Unavailable
9
DAMPER
5G3-21747-00-00
Unavailable
14
BOLT, HEXAGON
97017-08016-00
Unavailable
15
WASHER(6TA)
92907-08600-00
Unavailable
16
NUT, SPRING(3YX)
90183-05074-00
Unavailable
17
NUT, SPRING(3YX)
90183-05074-00
Unavailable
18
PANEL 1
4TV-2172A-00-00
Unavailable
19
RIVET, BLIND
90267-40191-00
Unavailable
20
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
21
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
22
GROMMET(4TV)
90480-01605-00
Unavailable
23
PANEL, INNER 1
4TV-2836K-00-00
Unavailable
24
PANEL, INNER 2
4TV-2836L-00-00
Unavailable
25
PANEL, INNER 3
4TV-2836M-00-00
Unavailable
26
PANEL, INNER 4
4TV-2836N-00-00
Unavailable
27
PANEL, INNER 5
4TV-2836R-00-00
Unavailable
28
BRACET 7
4TV-2833A-00-00
Unavailable
29
SCREW, PAN
98517-05012-00
Unavailable
30
WASHER(1RW)
92907-05600-00
Unavailable
31
NUT(6TA)
95317-06600-00
Unavailable
32
GROMMET(3GM)
90480-14585-00
Unavailable
33
DUCT 1
4TV-2838N-00-00
Unavailable
34
DUCT 2
4TV-2838R-00-00
Unavailable
35
DUCT 3
4TV-2838T-00-00
Unavailable
36
HOSE CLAMP ASSY
90450-64004-00
Unavailable
37
NUT, SPRING(1YT)
90183-05042-00
Unavailable
38
NUT, SPRING(1YT)
90183-05042-00
Unavailable
39
NUT, SPRING(1YT)
90183-05042-00
Unavailable
40
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
41
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
42
SCREW, TAPPING(4TV)
90167-05077-00
Unavailable
43
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
44
SCREW, TAPPING(4KY)
97780-50016-00
Unavailable
45
SCREW, TAPPING(4TV)
90167-05077-00
Unavailable
46
SCREW, TAPPING (35R)
90167-05015-00
Unavailable
47
SCREW, TAPPING(4TV)
90167-05077-00
Unavailable
48
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
49
REAR VIEW MIRROR ASSY(LEFT)
4FM-26280-10-00
Unavailable
50
REAR VIEW MIRROR ASSY(RIGHT)
4FM-26290-10-00
Unavailable
51
PLATE, MIRROR FITTING 2
4FM-26299-00-00
Unavailable
52
PLATE, MIRROR FITTING 1
3XV-26298-00-00
Unavailable
53
SCREW, COUNTERSUNK(3JP)
90151-06061-00
Unavailable
