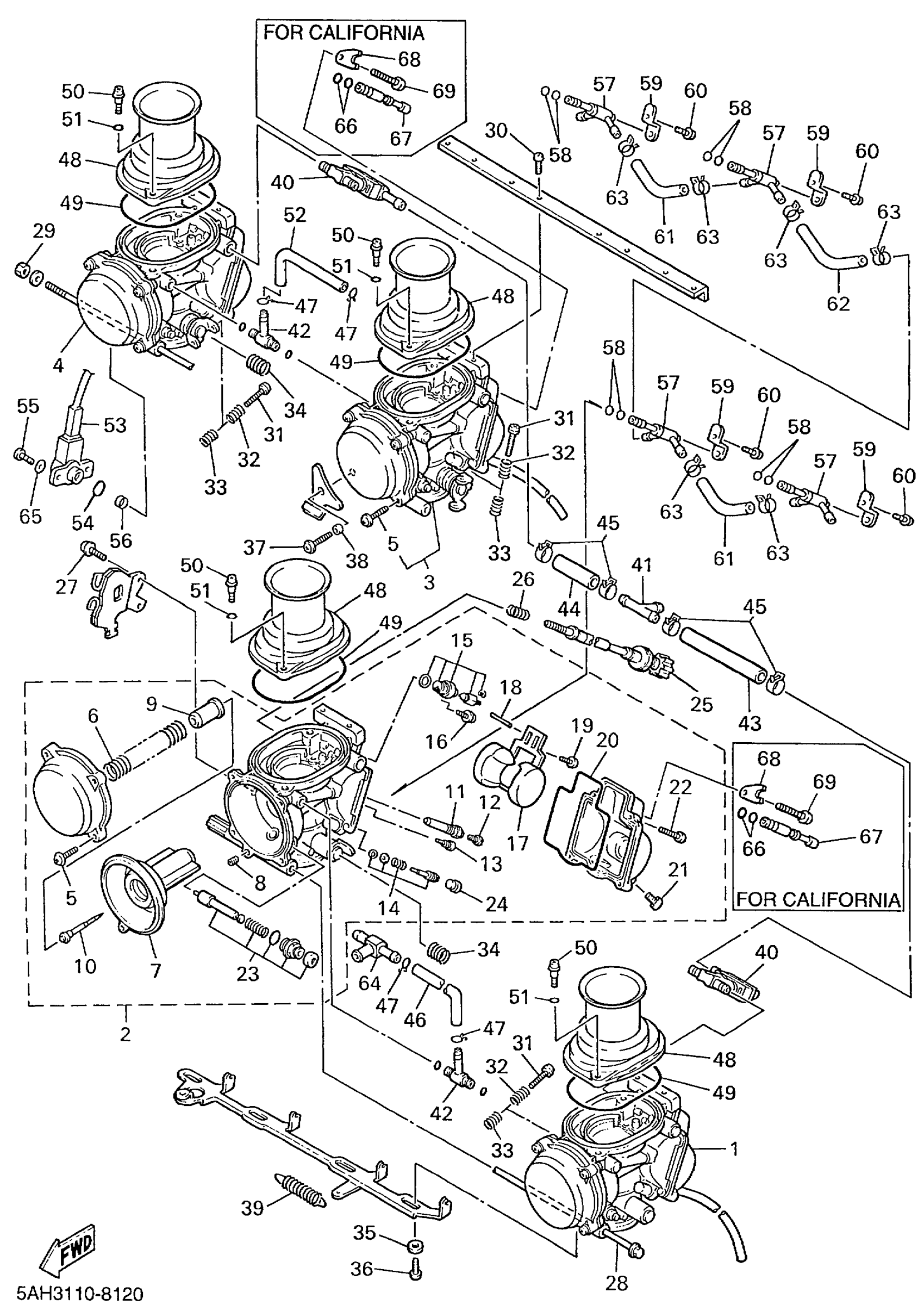

Yamaha YZF600RLC (YZF600R CA) 1999 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4TV-14901-11-00

Unavailable

1

CARBURETOR ASSY 1

5AH-14901-01-00

Unavailable

2

CARBURETOR ASSY 2

4TV-14902-11-00

Unavailable

2

CARBURETOR ASSY 2

5AH-14902-01-00

Unavailable

3

CARBURETOR ASSY 3

4TV-14903-11-00

Unavailable

3

CARBURETOR ASSY 3

5AH-14903-01-00

Unavailable

4

CARBURETOR ASSY 4

4TV-14904-11-00

Unavailable

4

CARBURETOR ASSY 4

5AH-14904-01-00

Unavailable

5

SCREW

4JH-14216-00-00

$31.99

5

SCREW

4JH-14216-00-00

$31.99

6

. SPRING, DIAPHRAGM

4TV-14933-00-00

Unavailable

7

DIAPHRAGM ASSY

4TV-14940-09-00

$131.99

8

JET

4JH-14515-00-00

$14.49

9

SEAT, SPRING

4JH-14936-00-00

Unavailable

10

NEEDLE

4TV-14916-00-00

$29.99

10

NEEDLE

4TV-14916-10-00

Unavailable

11

. PIPE, MAIN BLEED

4TV-1414G-00-00

Unavailable

12

.. JET, MAIN (#155)

3TJ-14943-38-00

Unavailable

12

JET, MAIN

3TJ-14943-87-00

Unavailable

13

JET (#38)

4JH-14948-02-00

Unavailable

14

PILOT SCREW SET

4JH-14105-00-00

Unavailable

15

NEEDLE VALVE SET

4JH-14107-00-00

Unavailable

16

SCREW

3TJ-14216-40-00

Unavailable

17

. FLOAT

4JH-14985-00-00

Unavailable

18

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

19

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

GASKET, FLOAT CHAMBER

4JH-14984-00-00

Unavailable

21

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

23

. STARTER SET

4TV-1410A-01-00

Unavailable

24

CAP

4MM-14118-00-00

Unavailable

25

SCREW, THROTTLE

4JH-14922-00-00

Unavailable

26

SPRING, THROTTLE STOP

4JH-14934-00-00

Unavailable

27

SCREW

4JH-14429-09-00

Unavailable

28

BOLT, HOLDING

4JH-14162-00-00

Unavailable

29

NUT, FLANGE

95704-05500-00

Unavailable

30

SCREW, PAN HEAD

4JH-14325-00-00

Unavailable

31

SCREW

5JG-14565-00-00

Unavailable

32

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

33

SPRING, THROTTLE STOP

4JH-14133-00-00

Unavailable

34

SPRING

4JH-14487-00-00

Unavailable

35

WASHER, PLATE(3TJ)

90202-06056-00

Unavailable

36

SCREW, GUIDE

3TJ-14245-40-00

Unavailable

37

SCREW

4JH-14565-00-00

Unavailable

38

COLLAR

4JH-14264-00-00

Unavailable

39

SPRING

4JH-14935-00-00

Unavailable

40

PIPE ADAPTOR ASSY

4JH-14350-00-00

Unavailable

41

PIPE T

4JH-13918-00-00

Unavailable

42

PIPE

4JH-14197-00-00

Unavailable

43

HOSE

4JH-14294-00-00

Unavailable

44

PIPE

4JH-14298-00-00

Unavailable

45

CLIP

4JH-14137-00-00

Unavailable

46

PIPE

4TV-14349-00-00

Unavailable

47

CLIP

3TJ-14937-40-00

Unavailable

48

JOINT, AIR FILTER 1

4TV-1440F-00-00

Unavailable

49

O-RING

4JH-14561-00-00

Unavailable

50

SCREW, GUIDE

4JH-14245-00-00

Unavailable

51

O-RING

4TV-14561-00-00

Unavailable

52

PIPE

4TV-14349-00-00

Unavailable

53

THROTTLE POSITION SENSOR ASSY

4TV-85885-00-00

Unavailable

54

O-RING

4TV-14562-00-00

Unavailable

55

SCREW

4TV-14216-00-00

Unavailable

56

COLLAR

4TV-14534-00-00

Unavailable

57

JOINT

4TV-12446-00-00

Unavailable

58

O-RING

4TV-12439-00-00

Unavailable

59

FLANGE, HOSE JT. 1

4TV-12573-00-00

Unavailable

60

SCREW, PAN HEAD WITH WASHER

97607-04108-00

Unavailable

61

HOSE 1

4TV-12576-00-00

Unavailable

62

HOSE 2

4TV-12577-00-00

Unavailable

63

. CLIP

4TV-12486-00-00

Unavailable

64

PIPE

4TV-14465-00-00

Unavailable

65

WASHER

4TV-14557-00-00

Unavailable

66

O-RING

67F-14398-10-00

Unavailable

67

JOINT

4NC-14568-00-00

Unavailable

68

PLATE

4NC-14527-00-00

Unavailable

69

SCREW, PAN HEAD

4NC-14325-00-00

Unavailable
