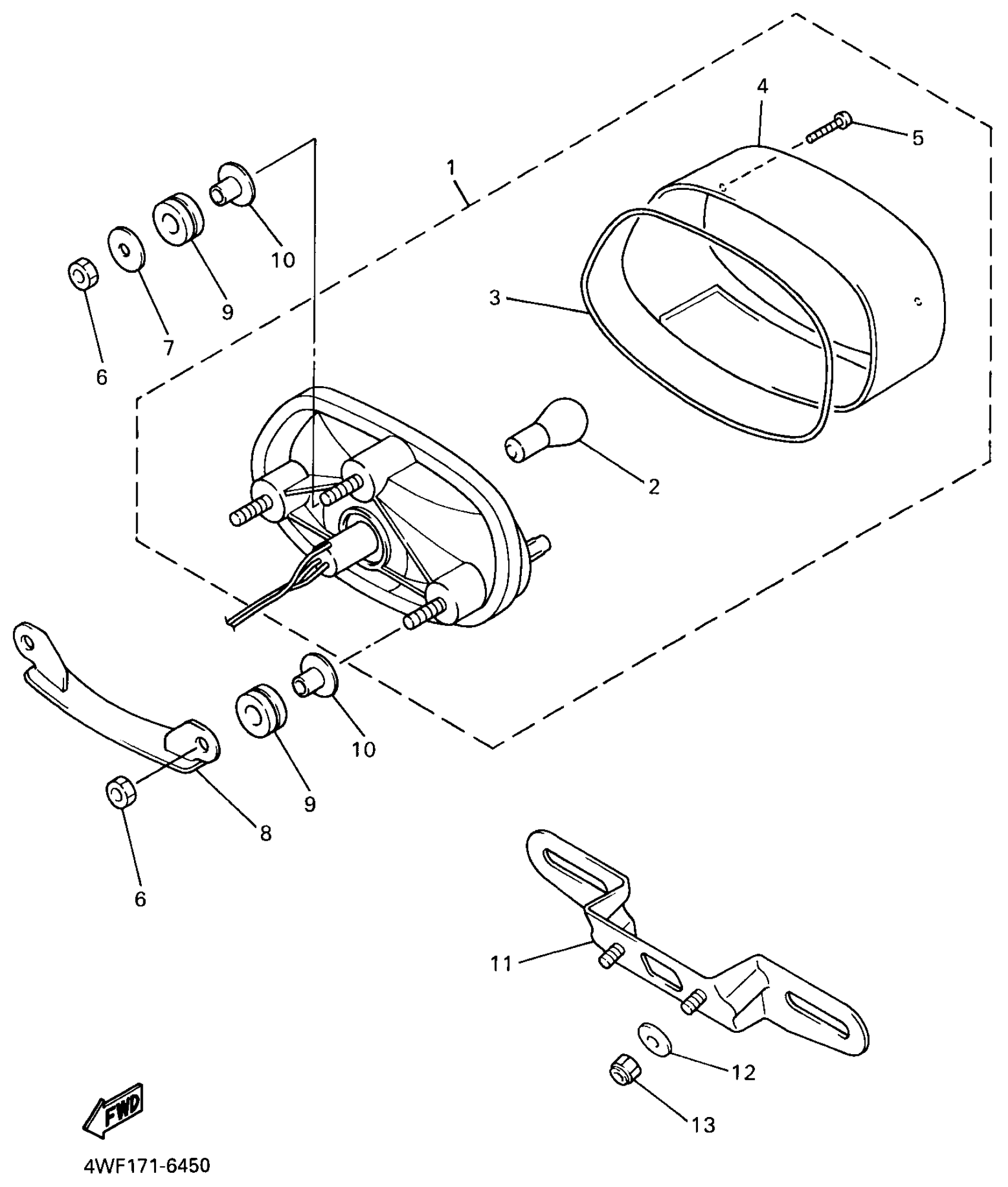

Yamaha YZF600RKC (YZF600R CA) 1998 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

4TV-84700-00-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.89

4

LENS, TAILLIGHT

4TR-84733-00-00

$22.99

5

SCREW, PAN TAP.2

97707-40520-00

$9.49

6

NUT(6TA)

95317-06600-00

$3.55

7

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

8

COVER, TAILLIGHT

4WF-84716-00-00

Unavailable

9

GROMMET (4L0)

90480-18276-00

$8.49

10

COLLAR

90387-062W4-00

Unavailable

11

BRACKET, LICENSE

4TV-84751-00-00

Unavailable

12

WASHER, PLATE

90201-06380-00

$0.60

13

NUT, SELF-LOCKING

95617-06100-00

$8.49
