Description

Price

1

OIL COOLER ASSY

4TV-13470-00-00

Unavailable

2

O-RING

5JW-13473-00-00

$42.99

3

BOLT, UNION

90401-20165-00

Unavailable

4

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

$18.99

5

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

6

O-RING (611)

93210-10096-00

$3.76

7

COVER,STRAINER

4YR-13417-00-00

Unavailable

8

GASKET, STRAINER COVER

4TV-13414-00-00

Unavailable

9

BOLT,SOCKET

91317-06025-00

$5.60

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

12

GASKET

214-11198-01-00

$3.17

13

CLAMP

90465-10306-00

Unavailable

14

PIPE, DELIVERY 1

3HE-13161-00-00

Unavailable

15

BOLT,SOCKET

91317-06010-00

$9.49

16

BOLT, UNION(1HX)

90401-10106-00

Unavailable

17

GASKET

90430-10188-00

Unavailable

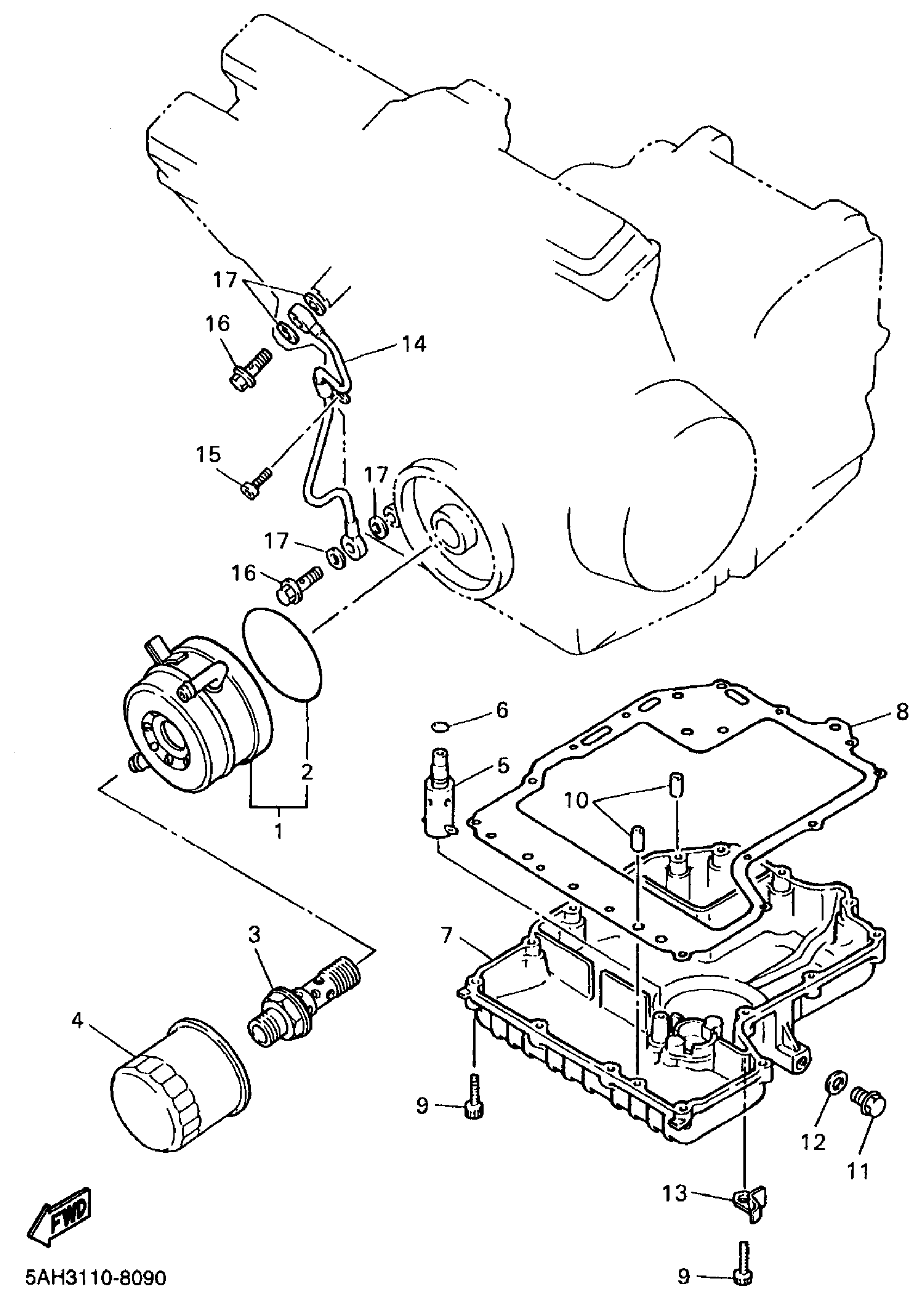

Yamaha YZF600RKC (YZF600R CA) 1998 OIL COOLER Diagram

OIL COOLER ASSY

O-RING

BOLT, UNION

ELEMENT ASSY, OIL CLEANER

RELIEF VALVE ASSY

O-RING (611)

COVER,STRAINER

GASKET, STRAINER COVER

BOLT,SOCKET

PIN, DOWEL(3XW)

PLUG, STRAIGHT SCREW(3FA)

GASKET

CLAMP

PIPE, DELIVERY 1

BOLT,SOCKET

BOLT, UNION(1HX)

GASKET
