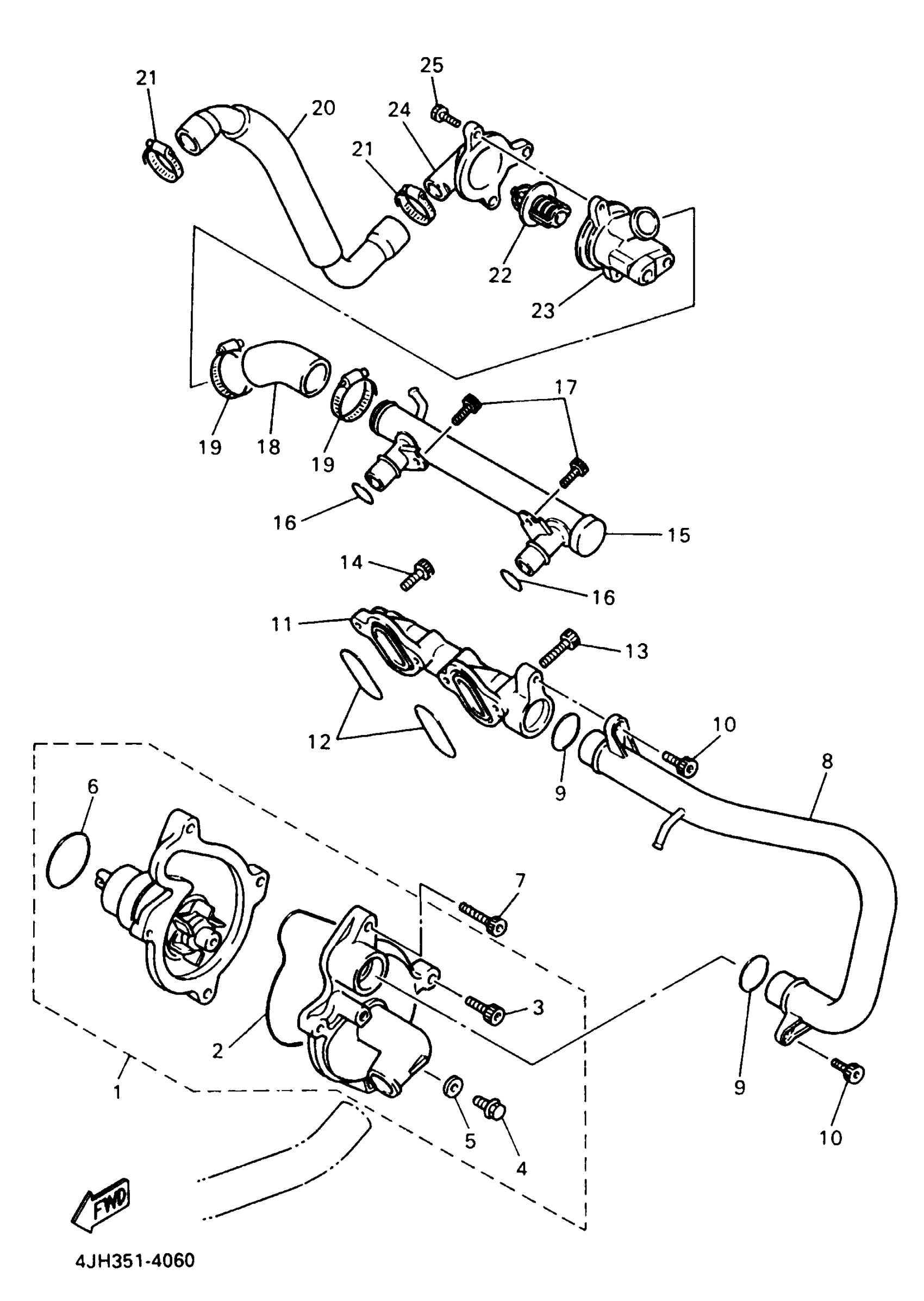

Yamaha YZF600RJC (YZF600R CA) 5AH2 1997 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY (O-RING)

3TJ-Y1242-00-00

Unavailable

2

O-RING

1WG-12439-00-00

$27.99

3

BOLT,SOCKET

91317-06025-00

$5.60

4

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

5

GASKET 256113960000

90430-06014-00

Unavailable

6

O-RING (626)

93210-33133-00

$2.92

7

BOLT,SOCKET

91317-06035-00

Unavailable

8

PIPE 1

4JH-12481-00-00

Unavailable

9

O-RING

93210-21190-00

$7.49

10

BOLT,SOCKET

91317-06010-00

$9.49

11

J0INT

1WG-12446-01-00

Unavailable

12

O-RING(1WG)

93210-17746-00

$7.49

13

BOLT,SOCKET

91317-06040-00

$3.76

14

BOLT,SOCKET

91317-06025-00

$5.60

15

PIPE 2

4JH-12482-00-00

Unavailable

16

O-RING (22U)

93210-15566-00

Unavailable

17

BOLT,SOCKET

91317-06010-00

$9.49

18

HOSE 1

3TJ-12576-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-32015-00

Unavailable

20

HOSE 2

4JH-12577-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-32015-00

Unavailable

22

THERMOSTAT ASSY

4JH-12410-01-00

Unavailable

23

HOUSING, THERMOSTAT

3TJ-12417-00-00

Unavailable

24

COVER, THERMOSTAT

3TJ-12413-00-00

Unavailable

25

BOLT,SOCKET

91317-06020-00

Unavailable
