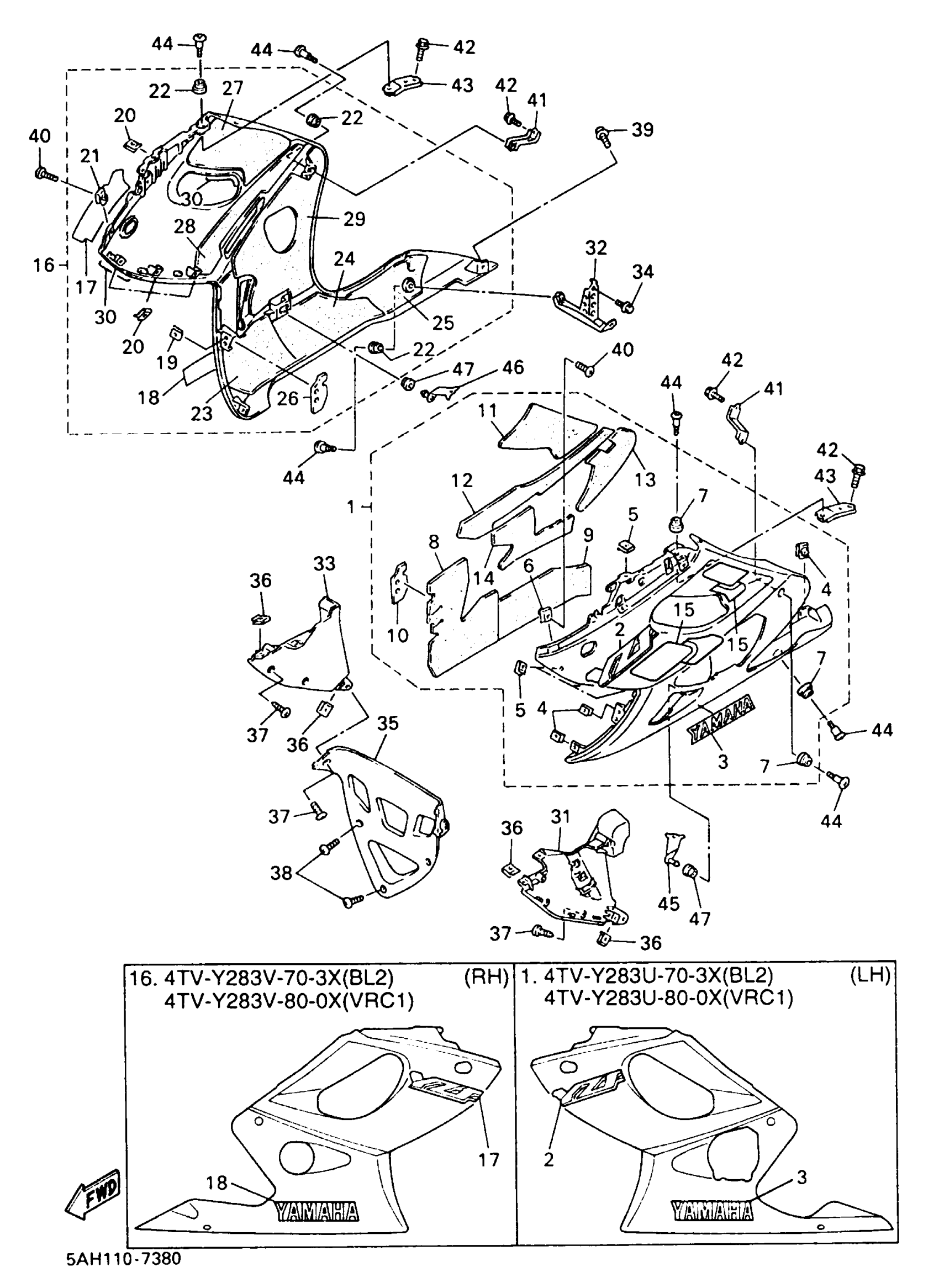

Yamaha YZF600RJC (YZF600R CA) 5AH2 1997 COWLING 2 Diagram
#
1
PANEL ASSY 1
4TV-W283U-60-P3
Unavailable
1
PANEL ASSEMBLY 1 (STAR SILVER) (BLACK 2)
4TV-Y283U-70-3X
Unavailable
1
PANEL ASSY 1
4TV-W283U-80-0X
Unavailable
2
. GRAPHIC 1 (VIVID RED COCKTAIL 1)
4WF-28391-00-00
Unavailable
2
. GRAPHIC 1 (BLACK 2)
4WF-28391-30-00
Unavailable
2
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4WF-28391-40-00
Unavailable
4
NUT, SPRING(3YX)
90183-05074-00
Unavailable
8
SEAT 3
4TV-2848L-03-00
Unavailable
9
SEAT 5
4TV-2848N-02-00
Unavailable
10
SEAT 7
4TV-2848R-00-00
Unavailable
11
DAMPER 2
4TV-28227-00-00
Unavailable
12
DAMPER
4TV-2834F-00-00
Unavailable
13
. DAMPER 5
4TV-2837J-00-00
Unavailable
14
DAMPER 6
4TV-2837K-00-00
Unavailable
15
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
5AH-28301-00-00
Unavailable
16
PANEL 2
4TV-W283V-60-P3
Unavailable
16
PANEL 2
4TV-W283V-70-3X
Unavailable
16
PANEL ASSEMBLY 2
4TV-W283V-80-0X
Unavailable
17
. GRAPHIC 2 (VIVID RED COCKTAIL 1)
4WF-28392-00-00
Unavailable
17
. GRAPHIC 2 (BLACK 2)
4WF-28392-30-00
Unavailable
17
. GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C)
4WF-28392-40-00
Unavailable
19
NUT, SPRING(3YX)
90183-05074-00
Unavailable
23
. SEAT 2
4TV-2848K-03-00
Unavailable
24
. SEAT 4
4TV-2848M-02-00
Unavailable
25
. SEAT
4TV-2848H-00-00
Unavailable
26
. SEAT 6
4TV-2848P-00-00
Unavailable
27
. DAMPER 1
4TV-28217-00-00
Unavailable
28
DAMPER
4TV-2834E-00-00
Unavailable
29
. DAMPER
4TV-28371-00-00
Unavailable
30
. GRAPHIC SET, LOWER COVER 2 (DEEP PURPLISH BLUE METALLIC C)
5AH-28303-00-00
Unavailable
31
BODY, FRONT LOWER
4TV-2835J-00-P8
Unavailable
31
BODY, FRONT LOWER 1 (VIVID RED COCKTAIL 1)
4TV-2835J-00-P0
Unavailable
31
BODY, FRONT LOWER 1 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835J-00-P3
Unavailable
32
STAY, SUPPORT 1
4JH-2831T-00-00
Unavailable
33
BODY, FRONT LOWER
4TV-2835K-00-P8
Unavailable
33
BODY, FRONT LOWER 2 (VIVID RED COCKTAIL 1)
4TV-2835K-00-P0
Unavailable
33
BODY, FRONT UNDER 2 (DEEP PURPLISH BLUE METALLIC C)
4TV-2835K-00-P3
Unavailable
34
BOLT, FLANGE
95817-06010-00
Unavailable
35
COVER, LOWER (BLACK 2)
4TV-28385-00-4B
Unavailable
35
COVER, LOWER (VIVID RED COCKTAIL 1)
4TV-28385-00-P0
Unavailable
35
COVER, LOWER
4TV-28385-00-P3
Unavailable
37
SCREW, TAPPING(4KY)
97780-50016-00
Unavailable
38
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
39
SCREW, WITH WASHER (22W)
90159-05073-00
Unavailable
40
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
41
STAY, SIDE 1
4JH-2832U-00-00
Unavailable
42
BOLT, FLANGE
95817-06010-00
Unavailable
43
BRACKET 5
4TV-2836H-00-00
Unavailable
44
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
45
BRACKET 3
4JH-2836F-00-00
Unavailable
46
BRACKET 4
4JH-2836G-00-00
Unavailable
47
GROMMET(3UL)
90480-01531-00
Unavailable
