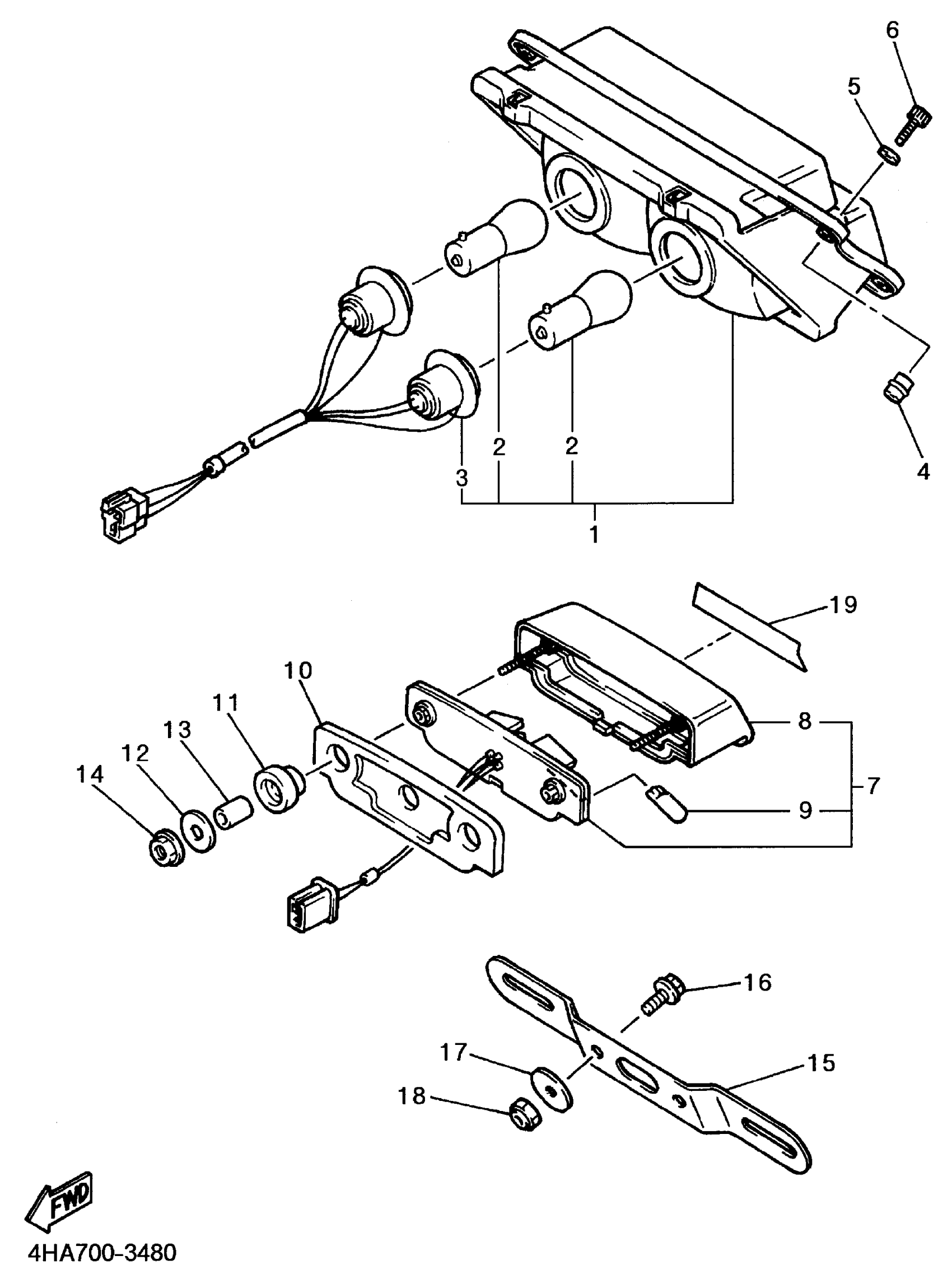

Yamaha YZF600RHC (YZF600R CA) 1996 TAILLIGHT Diagram

TAILLIGHT UNIT ASSEMBLY

4FM-84710-00-00

Unavailable

BULB

1A2-84714-50-00

$14.49

. CORD ASSEMBLY

4FM-84735-00-00

Unavailable

NUT(1KT)

90179-05523-00

$8.49

WASHER(1RW)

92907-05600-00

$3.78

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

LICENCE LIGHT UNIT ASSEMBLY

4FM-84745-00-00

Unavailable

BODY, LICENCE LIGHT

4FM-84749-00-00

Unavailable

BULB

4SV-84347-00-00

$8.99

SEAT, BASE

3F9-84742-00-00

$8.99

DAMPER

3F9-84553-00-00

Unavailable

WASHER PLATE 829771780000

90201-05033-00

$10.49

COLLAR (420)

90387-06241-00

$8.49

NUT, FLANGE(3GM)

95707-05500-00

$8.49

BRACKET, LICENSE

3YF-84751-01-00

$13.49

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

Unavailable

EMBLEM, YAMAHA

99247-00080-00

Unavailable
