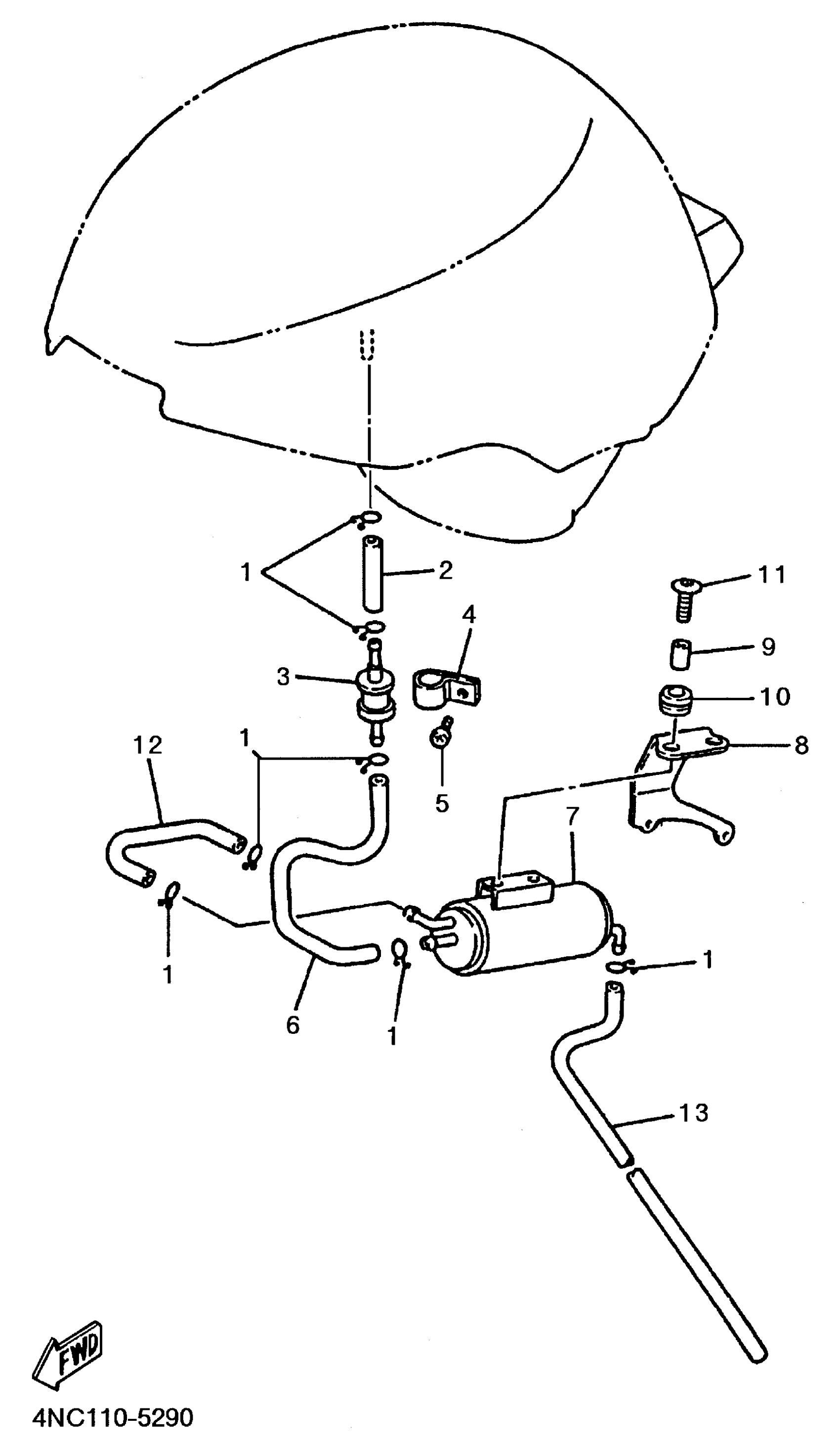

Yamaha YZF600RHC (YZF600R CA) 1996 FUEL TANK CALIFORNIA Diagram

#

Description
Price

1

CLIP

90467-100A1-00

$6.38

2

HOSE (L120)

90445-113E8-00

$3.82

3

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

4

CLAMP

90464-15014-00

$1.91

5

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.52

6

PIPE, FUEL 1

3LK-24311-01-00

Unavailable

7

CANISTER ASSY

3LK-24170-00-00

Unavailable

8

STAY

4NC-14413-01-00

Unavailable

9

COLLAR(47X)

90387-060G7-00

$7.49

10

GROMMET (462)

90480-13018-00

$6.25

11

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$6.28

12

PIPE 3

4NC-24313-00-00

Unavailable

13

HOSE (L450)

90445-10144-00

$4.52
