FRONT FORK

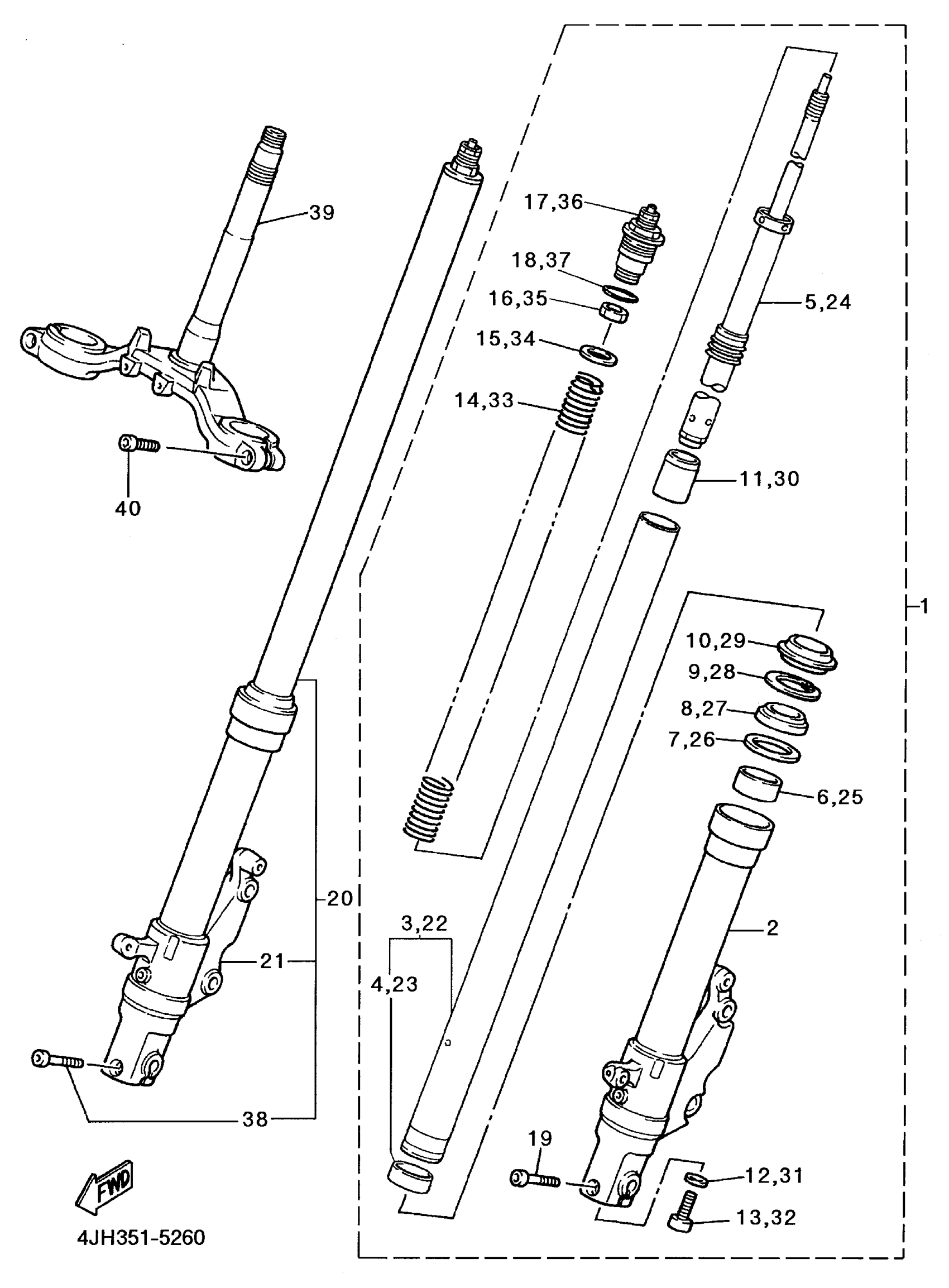

Yamaha YZF600RHC (YZF600R CA) 1996 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
4JH-23102-12-00
Unavailable
2
. TUBE, OUTER (LEFT)
4JH-23126-10-00
Unavailable
3
INNER TUBE 1
4JH-23110-11-00
Unavailable
5
. CYLINDER COMP, FRONT FORK
4JH-23170-10-00
Unavailable
6
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
10
SEAL, DUST
3XV-23144-50-00
Unavailable
11
. SPINDLE, TAPER
3LC-23173-00-00
Unavailable
14
. SPRING, FRONT FORK
4JH-23141-10-00
Unavailable
15
WASHER, SPRING UPPER
3LC-23149-00-00
Unavailable
16
NUT
3XJ-23357-L0-00
Unavailable
17
. BOLT, CAP
4JH-23111-10-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
. BOLT
91314-10045-00
Unavailable
20
FRONT FORK ASY R
4JH-23103-12-00
Unavailable
21
. TUBE, OUTER (RIGHT)
4JH-23136-10-00
Unavailable
22
INNER TUBE 1
4JH-23110-11-00
Unavailable
24
. CYLINDER COMP, FRONT FORK
4JH-23170-10-00
Unavailable
25
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
29
SEAL, DUST
3XV-23144-50-00
Unavailable
30
. SPINDLE, TAPER
3LC-23173-00-00
Unavailable
33
. SPRING, FRONT FORK
4JH-23141-10-00
Unavailable
34
WASHER, SPRING UPPER
3LC-23149-00-00
Unavailable
35
NUT
3XJ-23357-L0-00
Unavailable
36
. BOLT, CAP
4JH-23111-10-00
Unavailable
37
O-RING
43F-23188-10-00
Unavailable
38
. BOLT
91314-10045-00
Unavailable
39
UNDER BRACKET COMP.
4JH-23340-00-00
Unavailable
40
BOLT
91314-12030-00
Unavailable
