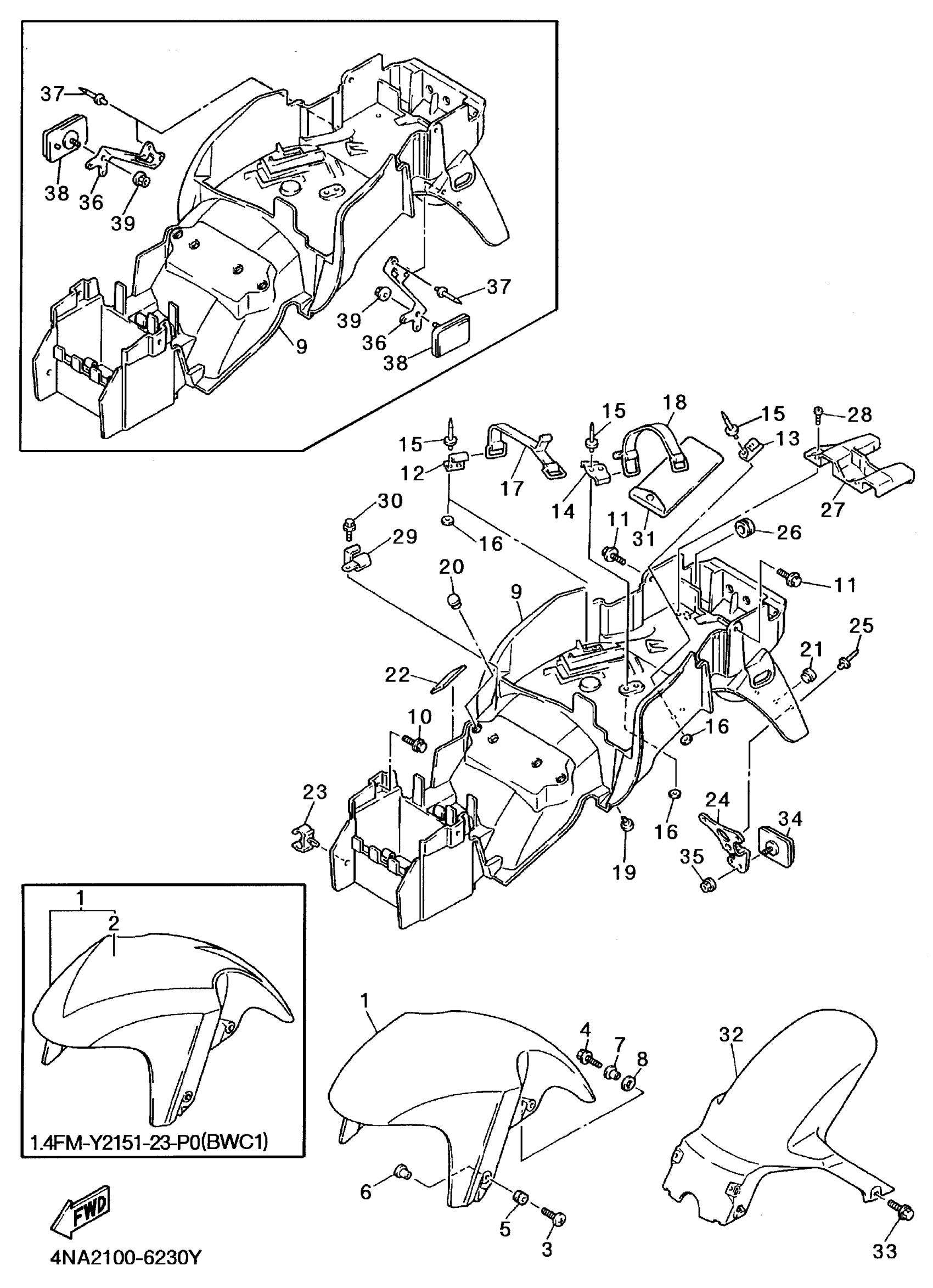

Yamaha YZF600RHC (YZF600R CA) 1996 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4FM-21511-03-R0

Unavailable

1

FENDER, FRONT

4FM-Y2151-23-P0

Unavailable

2

. GRAPHIC 1 (BLUISH WHITE COCKTAIL 1)

4JH-21569-00-00

Unavailable

3

SCREW, BINDING(3XV)

90154-06061-00

$8.49

4

BOLT, FLANGE

95817-06016-00

$2.75

5

GROMMET(53Y)

90480-12072-00

$8.49

6

COLLAR

90387-06159-00

$8.49

7

COLLAR(50M)

90387-087L0-00

$8.49

8

DAMPER

4FM-28372-00-00

$6.99

9

FENDER, REAR

4FM-21611-03-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

12

HOOK, TOOL BAND

3VD-21366-00-00

Unavailable

13

HOOK, TOOL BAND

1M1-21366-00-00

Unavailable

14

BRACKET 3

4JH-2161A-00-00

Unavailable

15

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

16

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

17

BAND, BATTERY

4J2-82131-01-00

Unavailable

18

BAND

36X-2811G-00-00

Unavailable

19

DAMPER, SEAT

35T-24724-00-00

Unavailable

20

PLUG (17J)

90338-10132-00

Unavailable

21

PLUG

90338-07018-00

Unavailable

22

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

23

CLAMP(3LD)

90464-09130-00

Unavailable

24

BRACKET, REFLECTOR 1

4FM-85132-00-00

Unavailable

25

RIVET, BLIND

90267-40029-00

Unavailable

26

GROMMET

90480-10258-00

Unavailable

27

COVER, REAR FENDER 1

4JH-2163A-00-00

Unavailable

28

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

29

HOOK, TOOL BAND

4JH-21366-00-00

Unavailable

30

BOLT, FLANGE

95817-06016-00

$2.75

31

TOOL KIT

1WG-W2810-00-00

Unavailable

32

REAR FENDER COMP.

4JH-21650-00-00

Unavailable

33

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

34

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

35

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

36

BRACKET, REAR STAY

4FM-21688-00-00

Unavailable

37

RIVET, BLIND

90267-40029-00

Unavailable

38

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

39

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
