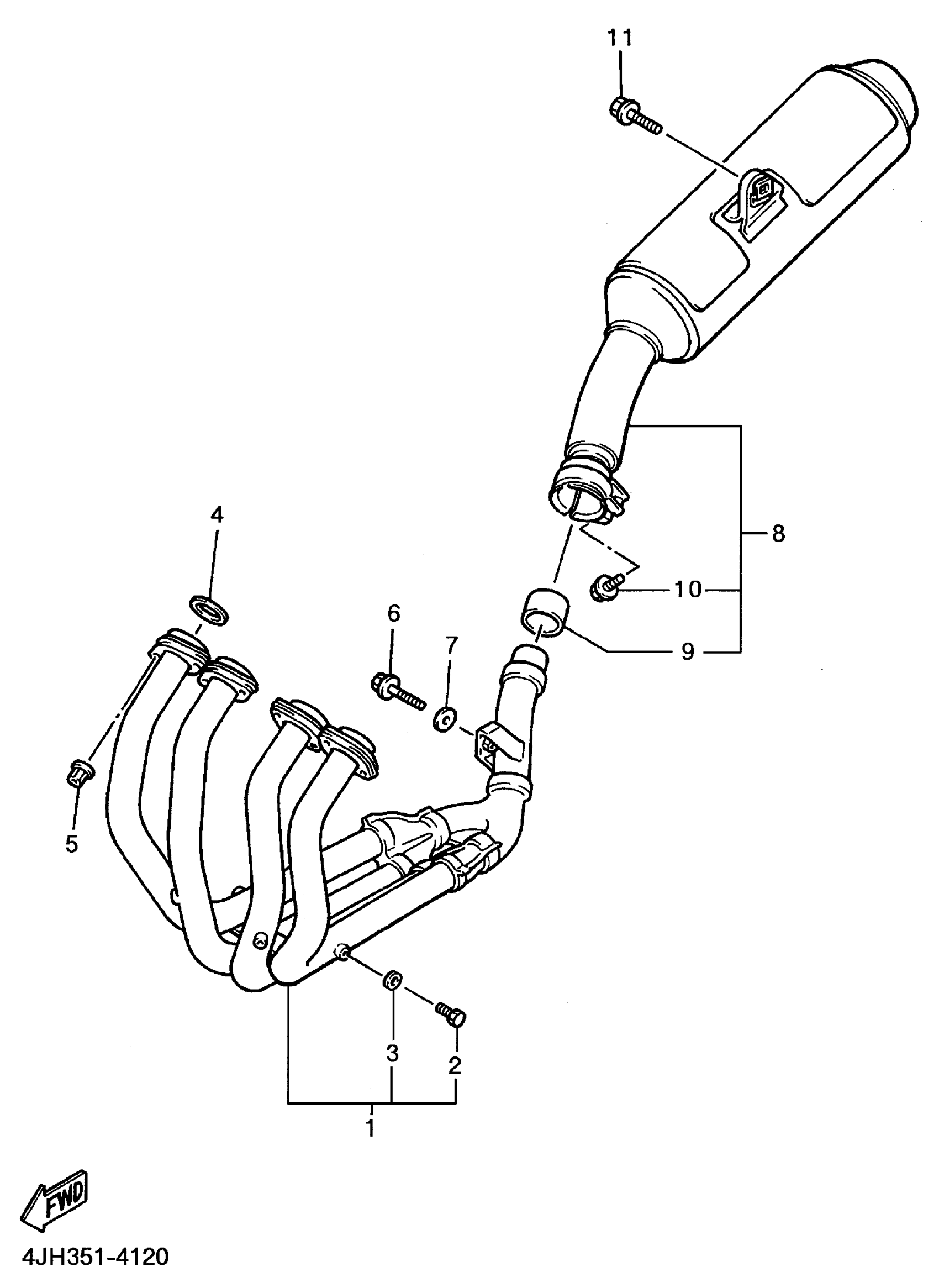

Yamaha YZF600RHC (YZF600R CA) 1996 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE COMP.

4JH-14602-00-00

Unavailable

2

BOLT (11T)

90101-06576-00

$6.46

3

WASHER(6TA)

92907-06600-00

$0.78

4

GASKET, EXHAUST PIPE

3YF-14613-01-00

$11.58

5

NUT(2UJ)

90179-06668-00

$4.51

6

BOLT, FLANGE(6TA)

95817-08030-00

$6.17

7

WASHER, PLATE (12X)

90201-087F0-00

$3.71

8

MUFFLER ASSEMBLY 1

4NA-14710-00-00

Unavailable

9

GASKET, MUFFLER

3XW-14714-00-00

$30.08

10

BOLT, FLANGE(4LN)

95817-08025-00

$6.17

11

BOLT, FLANGE(8AB)

95817-08020-00

$7.00
