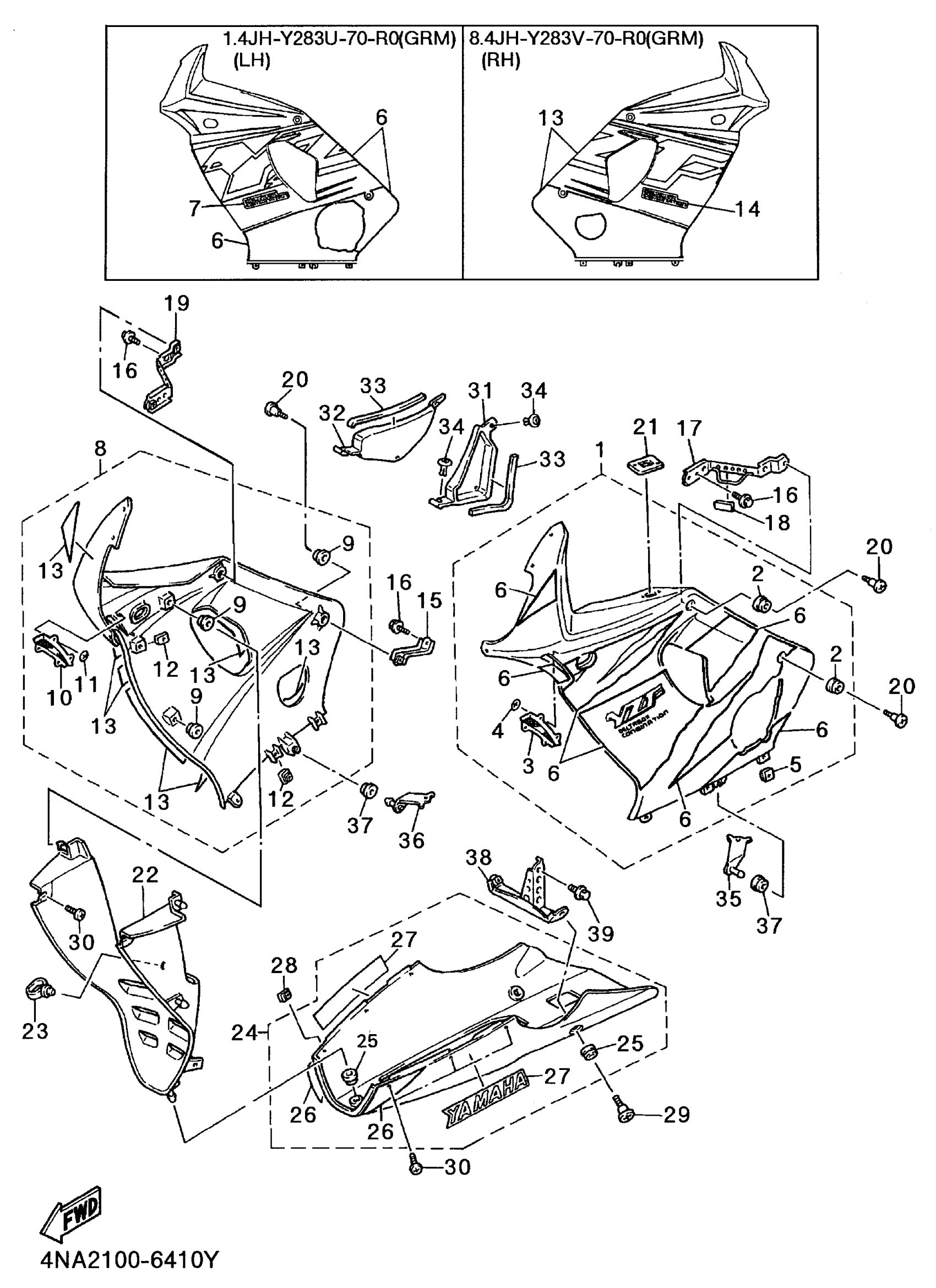

Yamaha YZF600RHC (YZF600R CA) 1996 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4JH-Y283U-60-P1
Unavailable
1
PANEL ASSEMBLY 1
4JH-Y283U-70-R0
Unavailable
3
. PANEL 1
4JH-2172A-00-00
Unavailable
6
. GRAPHIC SET, LOWER COVER 1 (BLUISH WHITE COCKTAIL 1)
4NA-28301-10-00
Unavailable
6
. GRAPHIC SET, LOWER COVER 1 (GRACEFUL MAROON)
4NA-28301-20-00
Unavailable
7
. EMBLEM (GRACEFUL MAROON)
4JH-28368-00-00
Unavailable
8
PANEL ASSEMBLY 2
4JH-Y283V-60-P1
Unavailable
8
PANEL ASSEMBLY 2
4JH-Y283V-70-R0
Unavailable
10
. PANEL 2
4JH-2172F-00-00
Unavailable
13
. GRAPHIC SET, LOWER COVER 2 (BLUISH WHITE COCKTAIL 1)
4NA-28303-10-00
Unavailable
13
. GRAPHIC SET, LOWER COVER 2 (GRACEFUL MAROON)
4NA-28303-20-00
Unavailable
14
. EMBLEM (GRACEFUL MAROON)
4JH-28368-00-00
Unavailable
15
STAY, SIDE 1
4JH-2832U-00-00
Unavailable
16
BOLT, FLANGE
95817-06010-00
Unavailable
17
BRACKET 5
4JH-2836H-00-00
Unavailable
18
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
19
BRACKET 6
4JH-2836J-00-00
Unavailable
20
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
21
COVER
3FV-28365-00-00
Unavailable
22
PANEL, INNER 1
4JH-2836K-00-P0
Unavailable
22
PANEL, INNER 1
4JH-2836K-00-R0
Unavailable
23
GUIDE, WIRE
1A8-21518-00-00
Unavailable
24
COVER ASSEMBLY, UNDER
4JH-Y2808-40-P3
Unavailable
24
COVER ASSEMBLY, UNDER
4JH-Y2808-60-P4
Unavailable
26
. GRAPHIC SET, LOWER COVER 3 (BLUISH WHITE COCKTAIL 1)
4JH-28304-20-00
Unavailable
27
EMBLEM, YAMAHA
99246-00280-00
Unavailable
29
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
30
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
31
PLATE 1
4JH-28396-00-00
Unavailable
32
PLATE 2
4JH-28397-00-00
Unavailable
33
SEAL
4DN-21669-00-00
Unavailable
34
RIVET(4JH)
90269-07076-00
Unavailable
35
BRACKET 3
4JH-2836F-00-00
Unavailable
36
BRACKET 4
4JH-2836G-00-00
Unavailable
37
GROMMET
90480-12320-00
Unavailable
38
STAY, SUPPORT 1
4JH-2831T-00-00
Unavailable
39
BOLT, FLANGE
95817-06010-00
Unavailable
