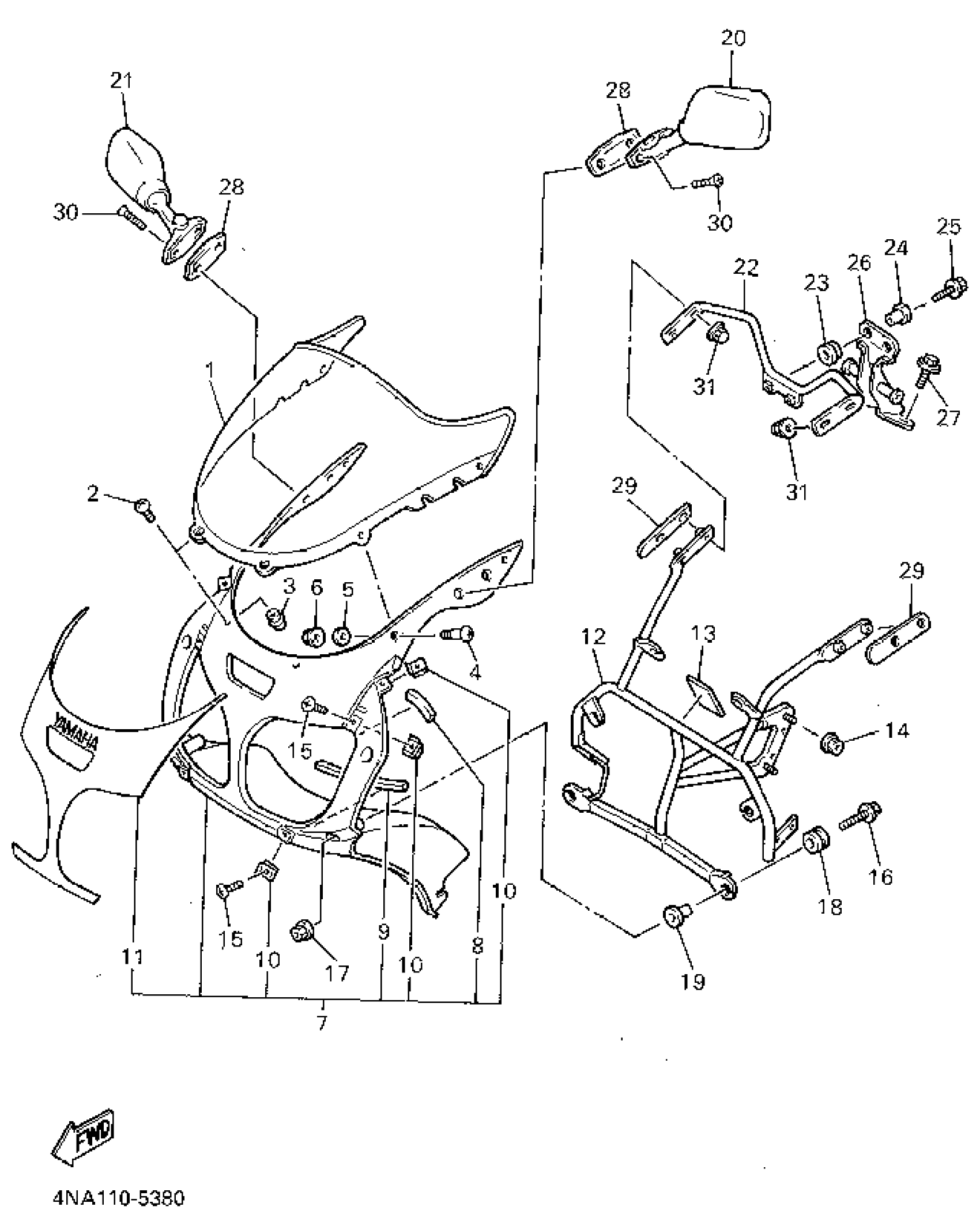

Yamaha YZF600RGC (YZF600R CA) 1995 COWLING 1 Diagram

WINDSHIELD

4JH-28381-01-00

Unavailable

SCREW, ROUND HEAD(1UX)

90150-05023-00

$4.19

NUT(1KT)

90179-05523-00

$8.49

SCREW(3HX)

90149-05273-00

$5.60

WASHER, SPECIAL

4FM-28215-00-00

$5.49

NUT, FLANGE(3GM)

95707-05500-00

$8.49

COWLING ASS''Y

4JH-Y2835-30-P1

Unavailable

TRIM 3

89X-77167-00-00

$1.09

. DAMPER

3MA-21649-00-00

Unavailable

NUT, SPRING

90183-051A0-00

$3.81

. GRAPHIC SET, COWLING

4NA-28390-01-00

Unavailable

STAY 1

4JH-28356-00-00

Unavailable

DAMPER

51L-28371-00-00

Unavailable

NUT, SELF-LOCKING

90185-08169-00

$8.49

SCREW, BINDING(3XV)

90154-05059-00

$9.49

BOLT, FLANGE

95817-06030-00

Unavailable

NUT,SELF-LOCKING

95607-06200-00

Unavailable

GROMET (3X3)

90480-14229-00

Unavailable

COLLAR 437216330000

90387-07391-00

Unavailable

REAR VIEW MIRROR ASSY(LEFT)

4FM-26280-10-00

Unavailable

REAR VIEW MIRROR ASSY(RIGHT)

4FM-26290-10-00

Unavailable

STAY, MIRROR 1

4JH-2831W-00-00

Unavailable

GROMMET

90480-13014-00

Unavailable

COLLAR(1LJ)

90387-067N5-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

STAY, MIRROR 2

4JH-2832W-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

PLATE, MIRROR FITTING 2

4FM-26299-00-00

Unavailable

PLATE, MIRROR FITTING 1

3XV-26298-00-00

Unavailable

SCREW, FLAT

98707-06025-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable
