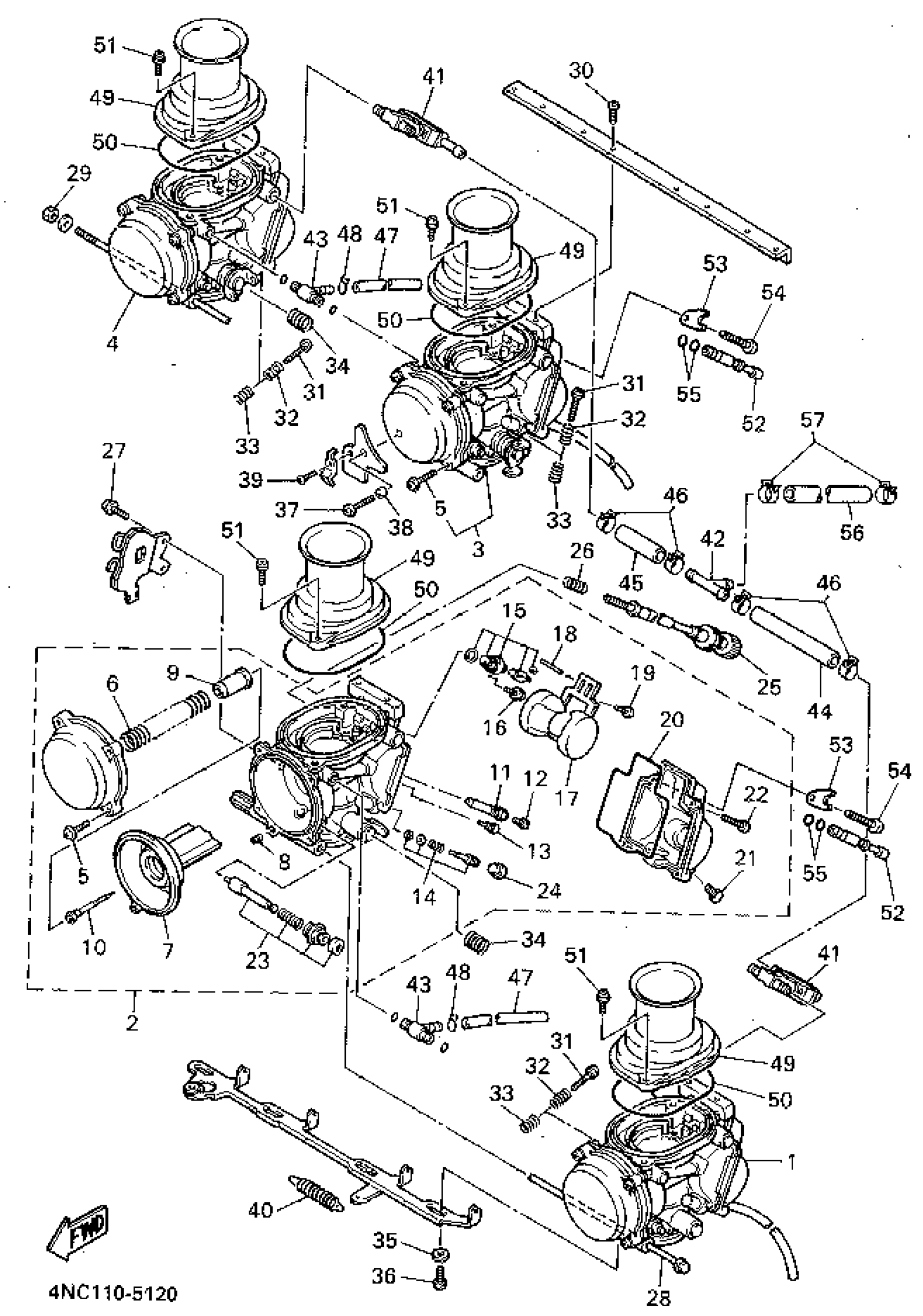

Yamaha YZF600RGC (YZF600R CA) 1995 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

4NC-14901-00-00

Unavailable

2

CARBURETOR ASSY 2

4NC-14902-00-00

Unavailable

3

CARBURETOR ASSY 3

4NC-14903-00-00

Unavailable

4

CARBURETOR ASSY 4

4NC-14904-00-00

Unavailable

5

SCREW

4JH-14216-00-00

$31.99

5

SCREW

4JH-14216-00-00

$31.99

6

. SPRING, DIAPHRAGM

4JH-14933-00-00

Unavailable

7

. DIAPHRAGM ASSEMBLY

4JH-14940-00-00

Unavailable

8

JET

4JH-14515-00-00

$14.49

9

SEAT, SPRING

4JH-14936-00-00

Unavailable

10

. NEEDLE

4NA-14916-00-00

Unavailable

11

. PIPE, MAIN BLEED

4JH-1414G-00-00

Unavailable

12

. JET, MAIN (#118)

3TJ-14943-81-00

Unavailable

13

. JET (#35)

4JH-14948-01-00

Unavailable

14

. PILOT SCREW SET

4NA-14105-00-00

Unavailable

15

NEEDLE VALVE SET

4JH-14107-00-00

Unavailable

16

SCREW

3TJ-14216-40-00

Unavailable

17

. FLOAT

4JH-14985-00-00

Unavailable

18

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

19

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

GASKET, FLOAT CHAMBER

4JH-14984-00-00

Unavailable

21

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

22

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

23

. STARTER SET

4JH-1410A-00-00

Unavailable

24

CAP

4MM-14118-00-00

Unavailable

25

SCREW, THROTTLE

4JH-14922-00-00

Unavailable

26

SPRING, THROTTLE STOP

4JH-14934-00-00

Unavailable

27

SCREW

4JH-14429-09-00

Unavailable

28

BOLT, HOLDING

4JH-14162-00-00

Unavailable

29

NUT, FLANGE

95704-05500-00

Unavailable

30

SCREW, PAN HEAD

4JH-14325-00-00

Unavailable

31

SCREW

5JG-14565-00-00

Unavailable

32

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

33

SPRING, THROTTLE STOP

4JH-14133-00-00

Unavailable

34

SPRING

4JH-14487-00-00

Unavailable

35

WASHER, PLATE(3TJ)

90202-06056-00

Unavailable

36

SCREW, GUIDE

3TJ-14245-40-00

Unavailable

37

SCREW

4JH-14565-00-00

Unavailable

38

COLLAR

4JH-14264-00-00

Unavailable

39

SCREW

4JH-14567-00-00

Unavailable

40

SPRING

4JH-14935-00-00

Unavailable

41

PIPE ADAPTOR ASSY

4JH-14350-00-00

Unavailable

42

PIPE T

4JH-13918-00-00

Unavailable

43

PIPE

4JH-14197-00-00

Unavailable

44

HOSE

4JH-14294-00-00

Unavailable

45

PIPE

4JH-14298-00-00

Unavailable

46

CLIP

4JH-14137-00-00

Unavailable

47

PIPE

3TJ-14148-40-00

Unavailable

48

CLIP

3TJ-14937-40-00

Unavailable

49

JOINT, AIR FILTER 1

4JH-1440F-01-00

Unavailable

50

O-RING

4JH-14561-00-00

Unavailable

51

SCREW, GUIDE

4JH-14245-00-00

Unavailable

52

JOINT

4NC-14568-00-00

Unavailable

53

PLATE

4NC-14527-00-00

Unavailable

54

SCREW, PAN HEAD

4NC-14325-00-00

Unavailable

55

O-RING

67F-14398-10-00

Unavailable

56

HOSE

90445-146F9-00

Unavailable

57

CLIP(3YX)

90467-13133-00

Unavailable
