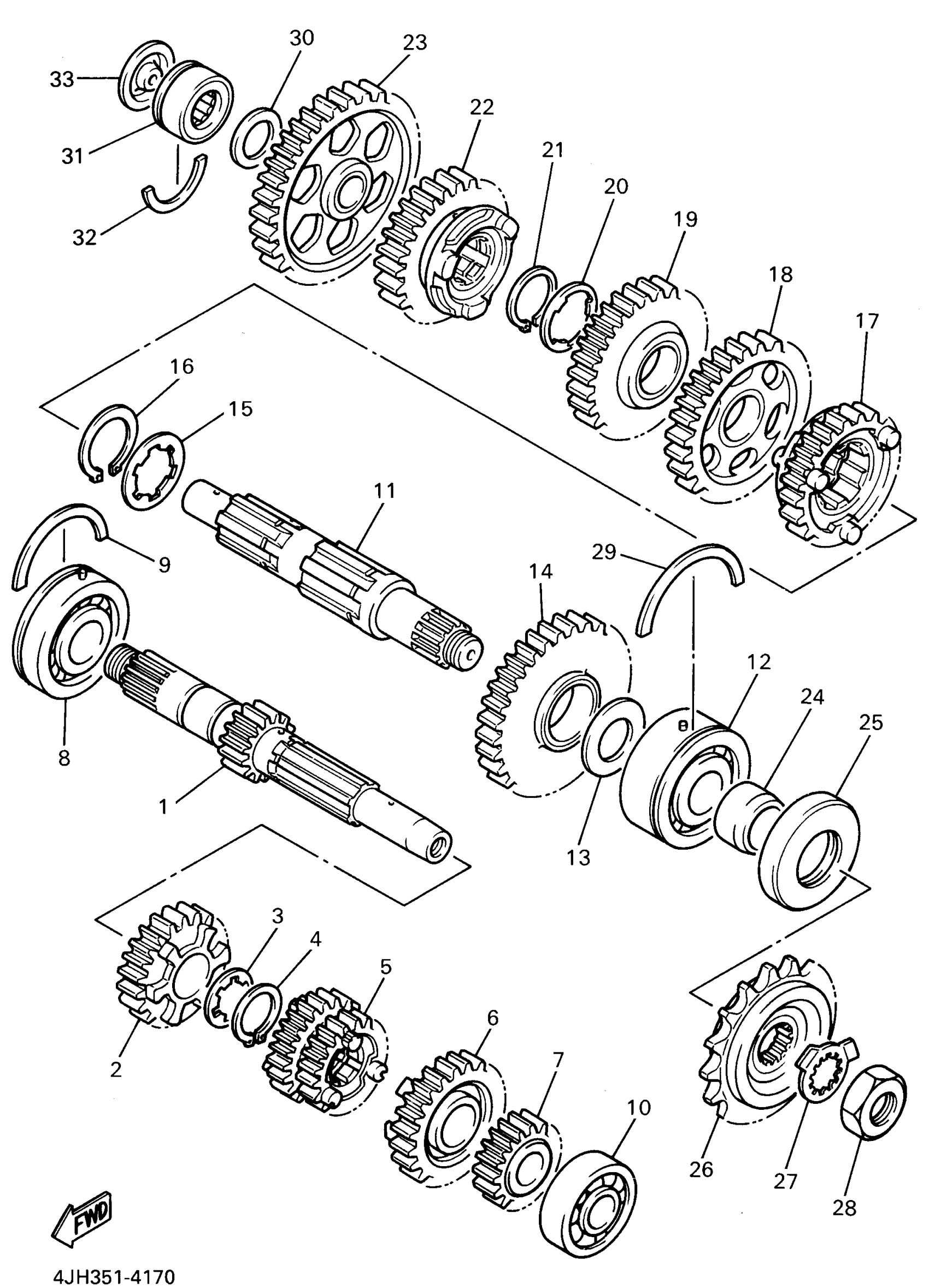

Yamaha YZF600RG (YZF600R) 1995 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (13T)

4JH-17411-00-00

$131.99

2

GEAR, 5TH PINION (

4TV-17151-00-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (22T)

4JH-17131-00-00

Unavailable

6

GEAR, 6TH PINION

4TV-17161-00-00

$129.99

7

GEAR, 2ND PINION

4TV-17121-00-00

Unavailable

8

BEARING(1WG)

93306-37208-00

Unavailable

9

CIRCLIP(1WG)

93440-54152-00

$5.60

10

BEARING(3LD)

93306-20464-00

Unavailable

11

AXLE, DRIVE

4JH-17421-00-00

Unavailable

12

BEARING(89A)

93305-20509-00

Unavailable

13

WASHER PLATE 371115580000

90201-25291-00

$10.49

14

GEAR, 2ND WHEEL (37T)

4JH-17221-00-00

$169.99

15

WASHER(4JH)

90209-27336-00

$3.98

16

CIRCLIP (3J3)

93440-30077-00

Unavailable

17

GEAR, 6TH WHEEL

4TV-17261-00-00

Unavailable

18

GEAR, 3RD WHEEL (34T)

4JH-17231-00-00

Unavailable

19

GEAR, 4TH WHEEL (28T)

4JH-17241-00-00

Unavailable

20

WASHER (3J3)

90209-22191-00

$7.49

21

CIRCLIP (4L0)

93440-25084-00

$5.60

22

GEAR, 5TH WHEEL

4TV-17251-00-00

Unavailable

23

GEAR, 1ST WHEEL (37T)

4JH-17211-00-00

Unavailable

24

COLLAR(4JH)

90387-2504A-00

Unavailable

25

OIL SEAL (1KT)

93102-35368-00

Unavailable

26

SPROCKET, DRIVE

3HE-17460-00-00

Unavailable

27

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

28

NUT 152174630000

90179-18020-00

Unavailable

29

CIRCLIP (256)

93440-52014-00

Unavailable

30

WASHER PLATE 328171160000

90201-20276-00

Unavailable

31

BEARING, CYL.#11

93311-42045-00

Unavailable

32

CIR CLIP

278-17425-00-00

Unavailable

33

NOZZLE

4G0-17433-01-00

Unavailable
